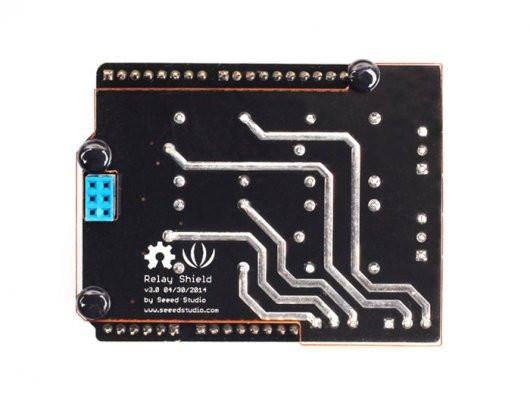

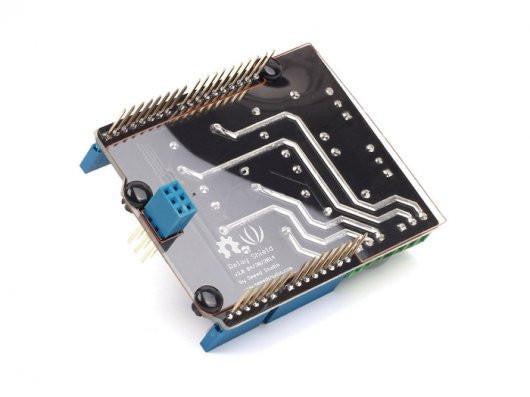

Relay Shield v3.0

$38.94 AUD Inc. GST


SKU SS103030009
Ships in 24 hours 4 units
Ships in 20 to 30 days 167 units

increment
decrement
decrement increment

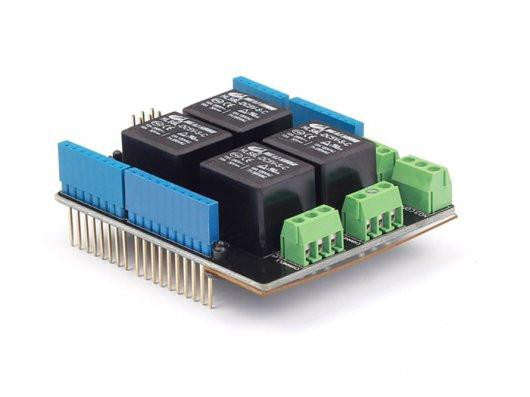

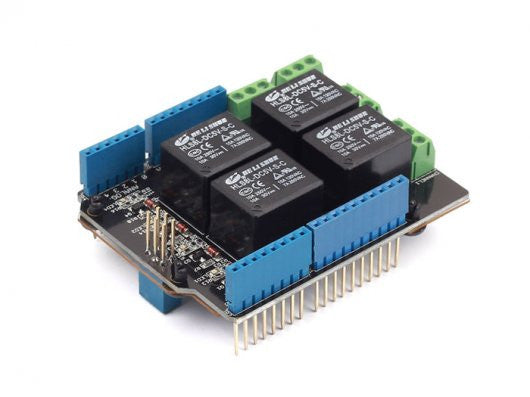

The Relay Shield utilizes four high quality relays and provides NO/NC interfaces that control the load of high current. Which means it could be a nice solution for controlling devices that couldn’t be directly controlled by Arduino’s Digital I/Os. Standardized shield form factor enables smoothly connection with the Arduino. The shield also has four dynamic indicators show the on/off state of each relay.
Features:
  • Arduino/Seeeduino compatible
  • Standardized shape design

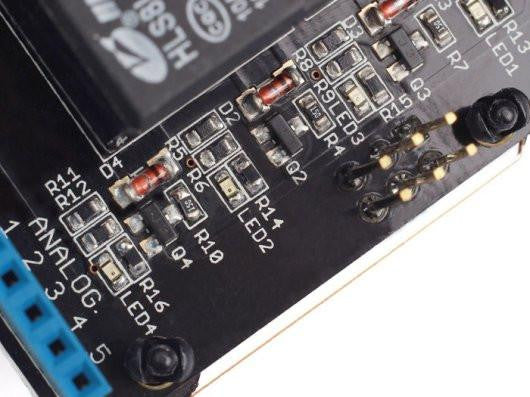

  • Working status indicators for each relay
  • High quality relays
  • Provides NO/NC interfaces
Specification:

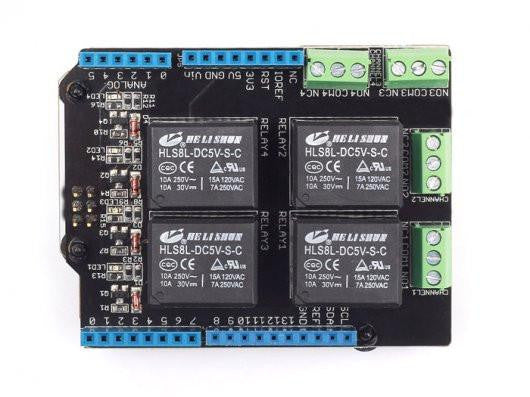

CHANNEL1 Interface:
  • COM1- Common pin
  • NC1- Normally Closed. Will be connected with COM1 when RELAY1 pin is set low and disconnected when RELAY1 is high;
  • NO1- Normally Open. Will be connected with COM1 when RELAY 1 pin is set high and disconnected when RELAY1 is low;
4 Digital Pins to control 4 Relays: RELAY1-RELAY4 pins could be connected directly with Arduino pin number of 7-4, so that four relays could be easily controlled by the Arduino.
Documents:
Please visit wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
