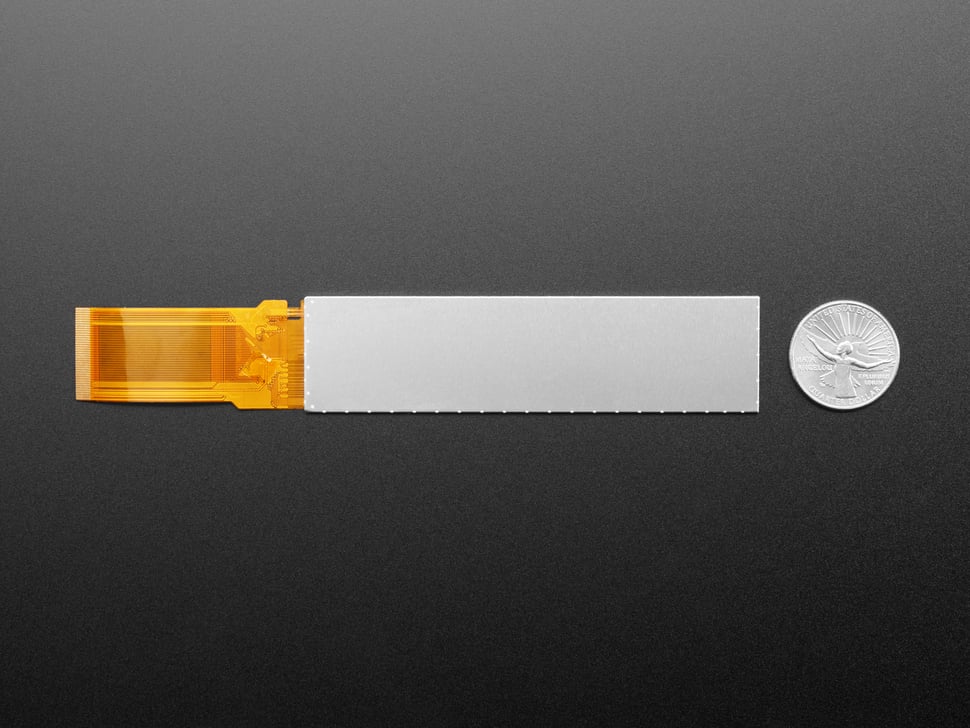

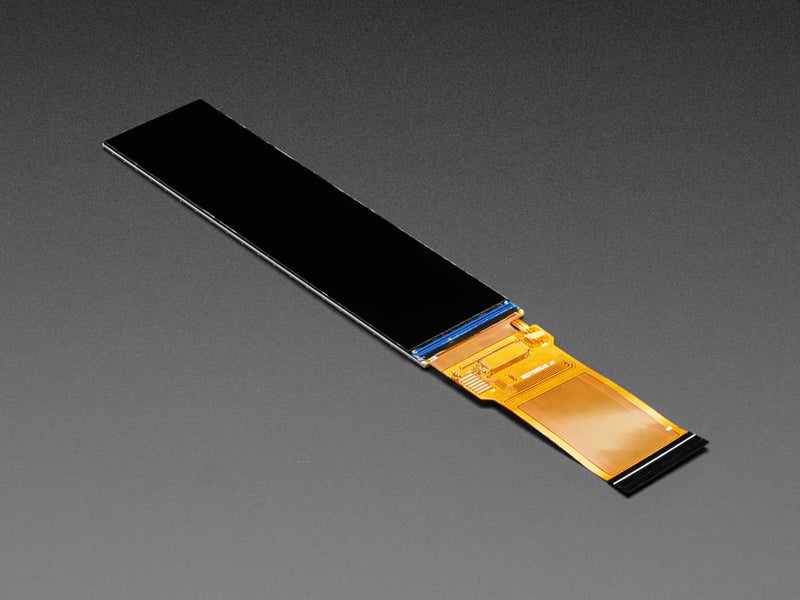

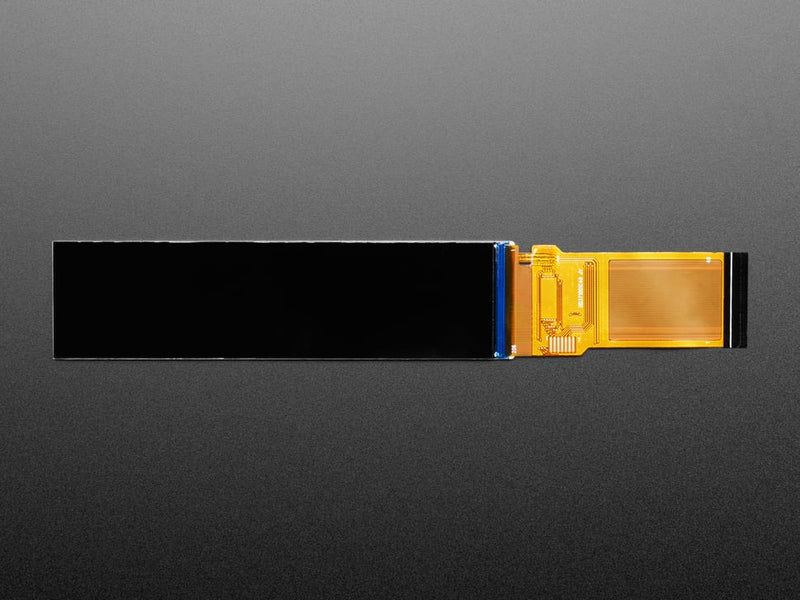

This advanced DPI and TFT rectangular bar display measures 3.7" with a resolution of 240x960. It has 18-bit full color pixels, making it ideal for displaying high-quality and vibrant visuals. Moreover, its IPS technology ensures that colors remain true up to 80 degrees off-axis.
This version does not have a touchscreen.
The TFT driver is ST7701S and utilizes both SPI and TTL RGB 'dot clock' data for configuring the display. Drawing pixels over SPI is not possible. The 40-pin connector does not have the same pinout as the conventional 800x480 (4.3", 5" or 7") or 480x272 (4.3") displays, uniquely distinguishing the 3.7" 240x960 Rectangle Bar RGB TTL TFT Display.
You'll need a chip capable of TTL RGB TFT driving to power the display - like the powerful ESP32-S3 with octal PSRAM or a computer such as a Raspberry Pi (connected directly via DPI or through an ICN6211 chip). And, the internal memory is configured as 360x960, with the leftmost 120 pixels out of visibility - making the display even more exciting..
This is just the display module! No PCB is included.
You cannot use these with an everyday microcontroller unless it specifically has support for RGB-666 displays so please do not purchase unless you know for sure that it can plug into a driver board with the correct pinout as well. Check out the Adafruit Qualia ESP32-S3 for TTL RGB-666 Display!
Technical Details
Learn
