The reComputer Robotics J4011 is a compact, high-performance edge AI box designed for advanced robotics. Compatible with NVIDIA® Jetson™ Orin™ NX modules in Super/MAXN mode, it delivers up to 117 TOPS of AI performance, leveraging up to 1.7x improvement over its predecessor. Pre-installed with JetPack 6.2 and Linux BSP, it ensures seamless deployment, serving as a powerful robotic brain capable of processing complex data from various sensors.
- Robust Hardware Design: A compact, high-performance edge AI computer with NVIDIA® Jetson™ Orin™ NX 8GB module in Super/MAXN mode, providing up to 117 TOPS of AI performance.
- Multiple Interfaces for robotics: Including dual RJ45, M.2 slots for 5G/Wi-Fi/BT modules, 6x USB 3.2, 2x CAN, GMSL2(additional purchase), I2C, and UART, functioning as a powerful robotic brain.
- Software Setup: Pre-installed with JetPack 6.2 and Linux BSP for seamless deployment.
- Application and Benefit: Ideal for rapid development of autonomous robots, accelerating time-to-market with ready-to-use interfaces and optimized AI frameworks.
- Wide Operating Range: Operates reliably across a temperature range of -20°C to 60°C at 25W mode and -20°C to 50°C at 40W mode
Jetson Modules Performance with Super Mode
- Enhanced power management
- Improved higher frame rate processing
- Reduced inference time
Module | |
| reComputer Robotics J4011 |
Applications Processor(AP) | NVIDIA Jetson Orin™ NX 8GB |
AI Performance | Orin NX 8GB – 117 TOPS (MAXN) |
GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
GPU Max Frequency | 1173 MHz |
CPU | 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
CPU Max Frequency | 2.0 GHz |
DL Accelerator | 2 x NVDLA v2.0 |
DL Max Frequency | 1.23 GHz |
Vision Accelerator | 1 x PVA v2.0 |
Memory | 8GB 128-bit wide LPDDR5 DRAM 102.4GB/s |
Power | 10W - 15W - 25W - 40W |
Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
Video Decode | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
CSI camera | Up to 4 cameras (8 via virtual channels) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20Gbps) |
Mechanical | 69.6mm x 45mm 260-pin SO-DIMM connector |
Carrier Board | ||
Storage | 1x M.2 KEY M PCIe | |
Networking | M.2 KEY E | 1x M.2 Key E for WiFi/Bluetooth module |
M.2 KEY B | 1x M.2 Key B for 5G module | |
Ethernet | 2x RJ-45 Gigabit Ethernet | |
I/O | USB | 6x USB 3.2 Type-A (5Gbps) 1x USB 3.0 Type-C (Host/DP 1.4) 1x USB 2.0 Type-C (Device Mode Only for Reflash/Debug) |
CAN | 2x CAN0 (XT30(2+2)) 3x CAN1 (4-Pin GH-1.25 Header) | |
Display | 1x DP1.4 (Type C Host) | |
UART | 1 x UART 4-Pin GH-1.25 Header | |
I2C | 2x I2C 4-Pin GH-1.25 Header | |
Fan | 1x 4-Pin Fan Connector (5V PWM) 1x 4-Pin Fan Connector (12V PWM) | |
Extension Port | 1x Camera Expansion Header (for GMSL2 board, not included) | |
RTC | 1x RTC 2-pin 1x RTC Socket | |
LED | 3x LED (PWR, ACT and User LED) | |
Pinhole Button | 1x PWR 1x RESET | |
DIP Switch | 1x REC | |
Antenna Hole | 5x Antenna Hole | |
Power | 19-54V XT30(2+2) (XT30 to 5525 DC Jack Cable included) | |
Jetpack Version | Jetpack 6.2 | |
Mechanical | Dimensions (W x D x H) | 115mm x 115mm x 38mm |
Weight | 200g | |
Installation | Desk, Wall-mounting | |
Operating Temperature | -20℃~60℃ (25W Mode) -20℃~55℃ (MAXN Mode) (with reComputer Robotics heat sink with fan) | |
Warranty | 2 Years | |
Certification(Pending) | RoHS, REACH, CE, FCC, KC | |
The NVIDIA AI software stack is designed for accelerate AI application and deployment:
Designed for Edge AI Computer Vision Applications:
Jetson Platform Services provide a platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.
Designed for demanding AI applications：
Such as AMR, smart retail, industrial automation, and video surveillance, smart video analysis scenario
We have Jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8, and others. We have configured all environment for you to provides single command deployment of projects.
- User Manual&Datasheet
- Carrier Board Schematic
- Power Board Schematic
- 3D File
- Mechanical Document-reComputer Robotics PCBA
- Seeed NVIDIA Jetson Product Catalog
- Nvidia Jetson Comparison
- Seeed Nvidia Jetson Success Cases
- Seeed Jetson One Pager

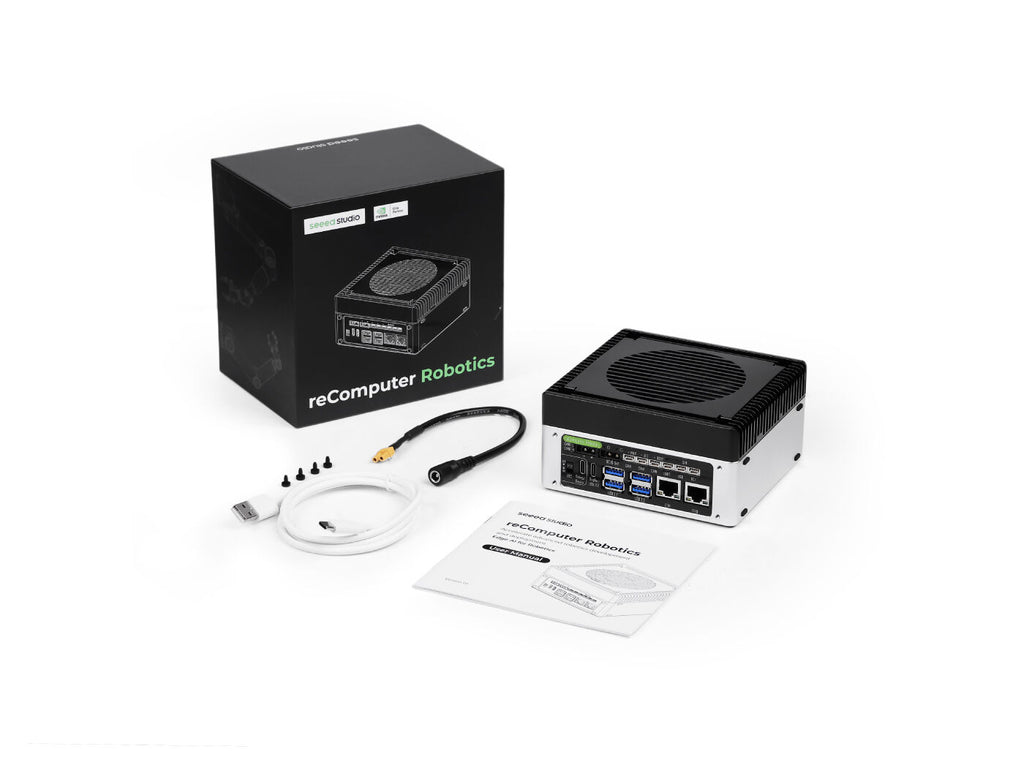

Items | Quantity |
Jetson Orin™ NX 8GB module | x 1 |
Seeed Carrier Board (reComputer Robotics J401) | x 1 |
128GB NVMe SSD | x 1 |
Aluminum Case and Heatsink with Fan | x 1 |
USB Cable; Type A to Type C | x 1 |
XT30 to DC cable | x1 |
User Manual | x 1 |
| HSCODE | 8471504090 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
