- Robust Hardware Design: A compact, high-performance edge AI computer compatible with NVIDIA Jetson Orin Nano/NX modules in Super/MAXN mode, providing up to 157 TOPS of AI performance.
- Multiple Interfaces for robotics: Including dual RJ45, M.2 slots for 5G/Wi-Fi/BT modules, 6x USB 3.2, 2x CAN, GMSL2(additional purchase), I2C, and UART, functioning as a powerful robotic brain.
- Software Setup: Pre-installed with JetPack 6.2 and Linux BSP for seamless deployment.
- Application and Benefit: Ideal for rapid development of autonomous robots, accelerating time-to-market with ready-to-use interfaces and optimized AI frameworks.
- Wide Operating Range: Operates reliably across a temperature range of -20°C to 60°C at 25W mode and -20°C to 55°C at 40W mode
Jetson Modules Performance with Super Mode
- Enhanced power management
- Improved higher frame rate processing
- Reduced inference time
Carrier Board | ||
Supported Jetson Module | Jetson Orin Nano/Orin NX | |
Supported Module Power | 7W | 10W | 15W | 20W | 25W | 40W | |
Storage | 1x M.2 KEY M PCIe | |
Networking | M.2 KEY E | 1x M.2 Key E for WiFi/Bluetooth module |
M.2 KEY B | 1x M.2 Key B for 5G module | |
Ethernet | 2x RJ45 Gigabit Ethernet | |
I/O | USB | 6x USB 3.2 Type-A (5Gbps); 1x USB 3.0 Type-C (Host/DP 1.4) 1x USB 2.0 Type-C (Device Mode/Debug); |
Camera | 1x 4 in 1 GMSL2(mini fakra)(optional board) | |
CAN | 2x CAN0(XT30(2+2)) 3x CAN1(4-Pin GH-1.25 Header) | |
Display | 1x DP1.4(Type C Host) | |
UART | 1 x UART 4-Pin GH-1.25 Header | |
I2C | 2x I2C 4-Pin GH-1.25 Header | |
Fan | 1x 4-Pin Fan Connector (5V PWM) 1x 4-Pin Fan Connector (12V PWM) | |
Extension Port | 1x Camera Expansion Header(for GMSL2 board) | |
RTC | 1x RTC 2-pin 1x RTC Socket | |
LED | 3x LED(PWR, ACT and User LED) | |
Pinhole Button | 1x PWR 1x RESET | |
DIP Switch | 1x REC | |
Antenna Hole | 5x Antenna Hole | |
Power | 19-54V XT30(2+2) (XT30 to 5525 DC Jack Cable included) | |
Jetpack Version | Jetpack 6.2 | |

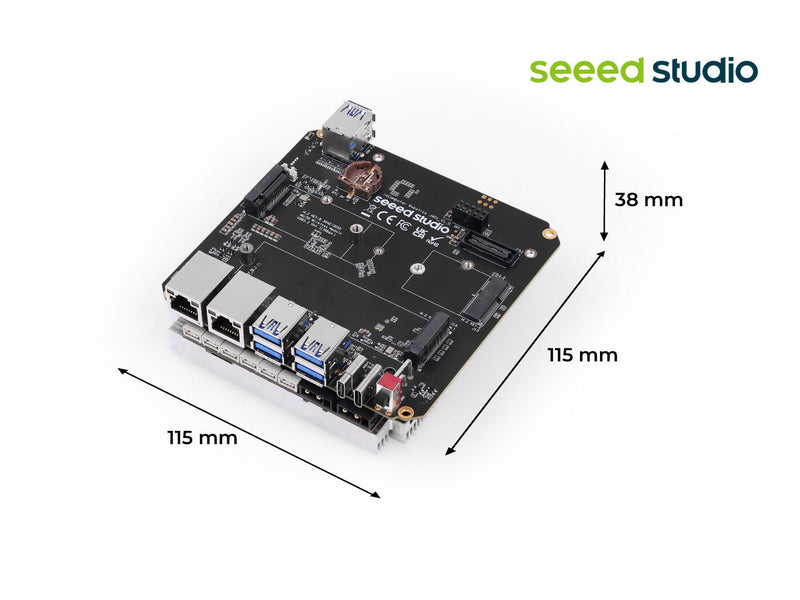

Mechanical | Dimensions (W x D x H) | 115mm x 115mm x 38mm |
Weight | 200g | |
Installation | Desk, Wall-mounting | |
Operating Temperature | -20℃~60℃(25W Mode) -20℃~55℃(MAXN Mode) (with reComputer Robotics heat sink with fan) | |
Warranty | 2 Years | |
Certification | RoHS, REACH, CE, FCC, UKCA, KC | |
The NVIDIA AI software stack is designed for accelerate AI application and deployment:
Designed for Edge AI Computer Vision Applications:
Jetson Platform Services provide a platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.
Designed for demanding AI applications：
Such as AMR, smart retail, industrial automation, and video surveillance, smart video analysis scenario
We have Jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8, and others. We have configured all environment for you to provides single command deployment of projects.
Mechanical Document-reComputer Robotics PCBA
Seeed Nvidia Jetson Product Catalog
Seeed Nvidia Jetson Success Cases
reComputer Robotics J401 Carrier Board x 1 | x1 |
Power Supply and JST expansion board x 1 | x1 |
XT30 to DC cable x 1 | x1 |
USB Cable, Type A to Type C x 1 | x1 |
Heat Sink for expansion board | x 1 |
Stud(M3*30) | x 5 |
M3 Hexagon nut | x 5 |
Screw(CM2.5*L.4) for Jetson Module and M.2 Key M | x 3 |
Screw(CM2*3.0) for M.2 Key E | x 1 |
Stud(M2*2.0) for M.2 Key B | x 1 |
Screw(CM3*4.0) for M.2 Key B | x 1 |
User Manual | x 1 |
| HSCODE | 8543909000 |
| USHSCODE | 8543903500 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
