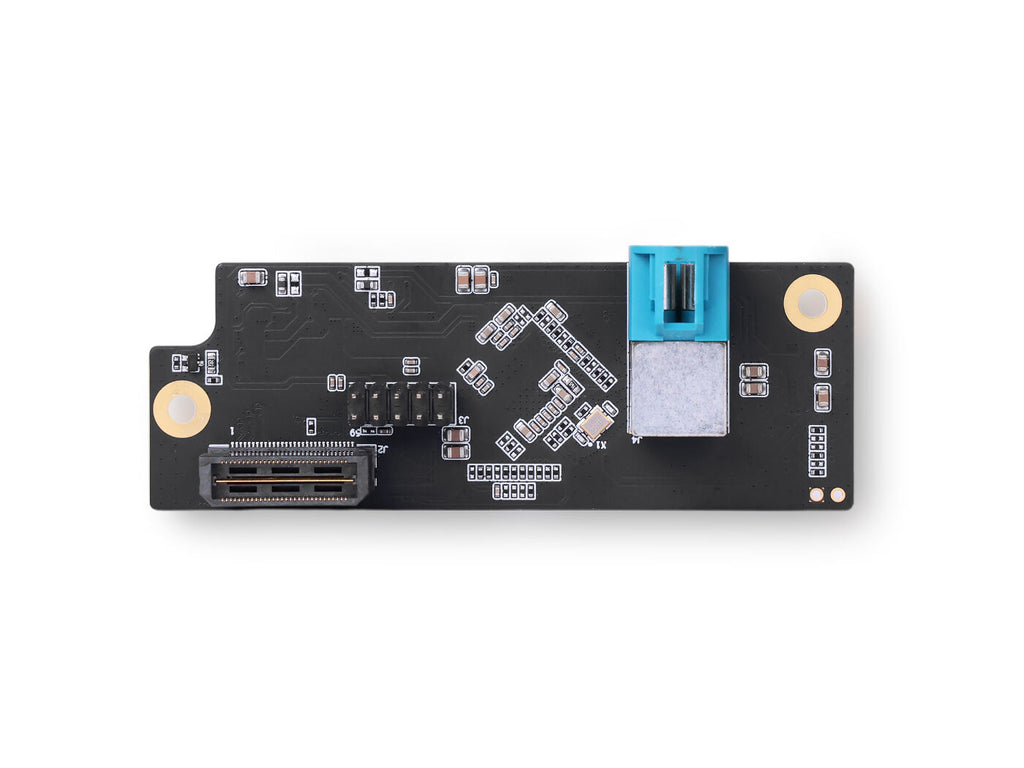

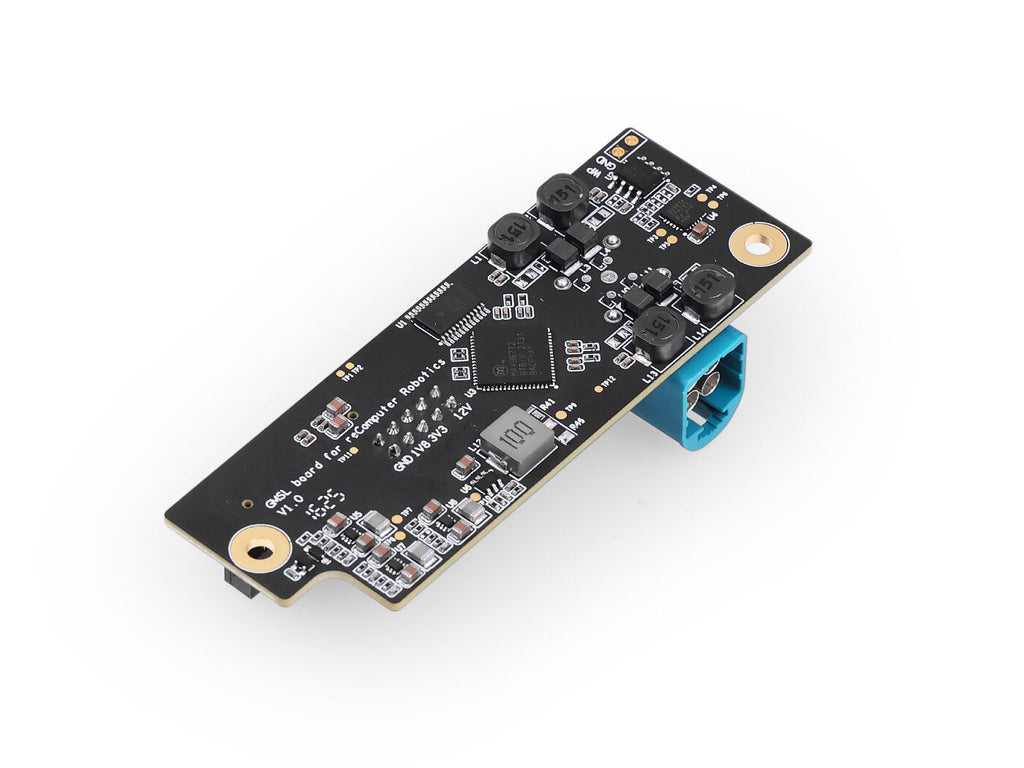

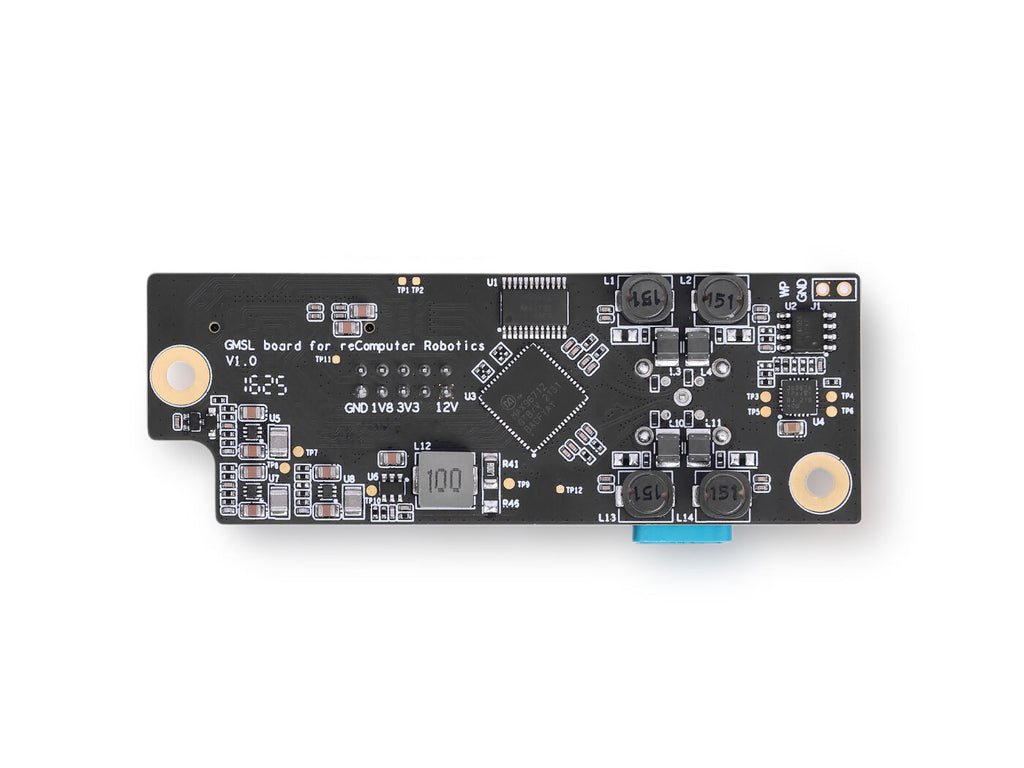

reComputer Robotics GMSL board is a GMSL extension board designed specifically for reComputer Robotics series of Jetson™ Orin™ NX and Orin™ Nano . Both data and power are sent through coaxial cable. It uses MAX96712 as deserializer, and can be compatible with GMSL cameras that use MAX96717/MAX9295A as serializer. This GMSL board currently has native support for multiple Sensing cameras and Orbbec Gemini 335LG, and can be connected up to 4 cameras simultaneously.
- Industry-standard Deserializer Selection Uses MAX96712 as deserializer
- 6Gbps Data Rate Support Supports up to 6Gbps data rate per channel
- Ready-to Use GMSL Camera models Supports multiple GMSL cameras in Jetpack (See table below for models)
Product | reComputer Robotics GMSL Board |
Deserializer | MAX96712 |
Operating Temperature | -20℃~60℃
|

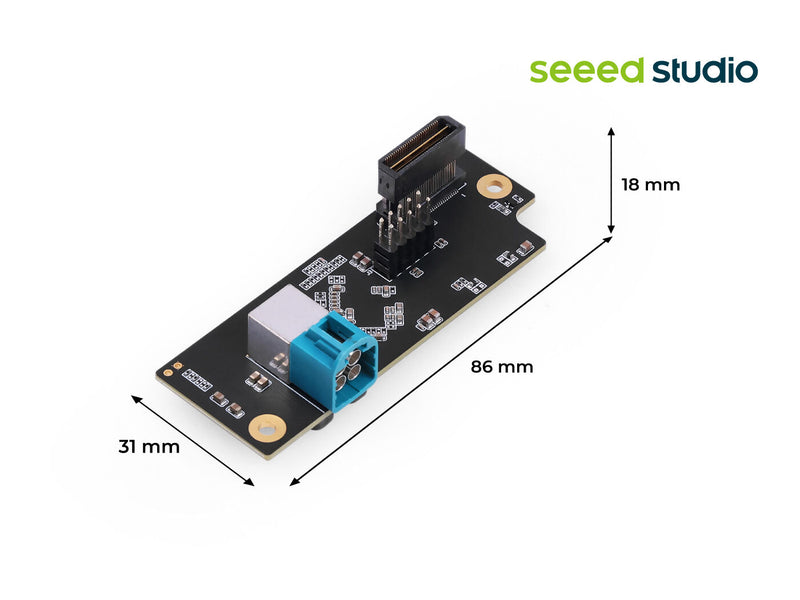

Mechanical Dimension | 86mm x 31mm x 18mm |
Cameras Supported in Jetpack
Manufactuer | Model | Resolution |
Sensing | SG3S-ISC031C-GMSL2F | 1920H*1536V |
SG2-AR0233C-5200-G2A | 1920H*1080V | |
SG2-IMX390C-5200-G2A | 1920H*1080V | |
SG8S-AR0820C-5300-G2A | 3840H*2160V | |
Orbbec | Orbbec Gemini 335Lg | 3D |
- Robotics (Object detection and 3D reconstruction)
- BEV Detection
reComputer GMSL Board | x1 |
M3 Stud | x2 |
M3 Screw | x2 |
| HSCODE | 8473309000 |
| USHSCODE | 8473309100 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
