- Powerful embodied AI Platform Compatible with the Jetson AGX Orin module, offering up to 275 TOPS. Perfect platform for embodied AI development.
- Ultra Compact Size 110mm x 110mm footprint, suitable for robot prototyping and development, especially robots that has tight footprint such as humanoids
- Wide Voltage Input Range Can be used in 48V battery power system (max 54V input)
- Rich IO capabilities Includes most common IOs used in robotics prototyping, such as USB, 10G Ethernet, CAN, RS-485 and I2S

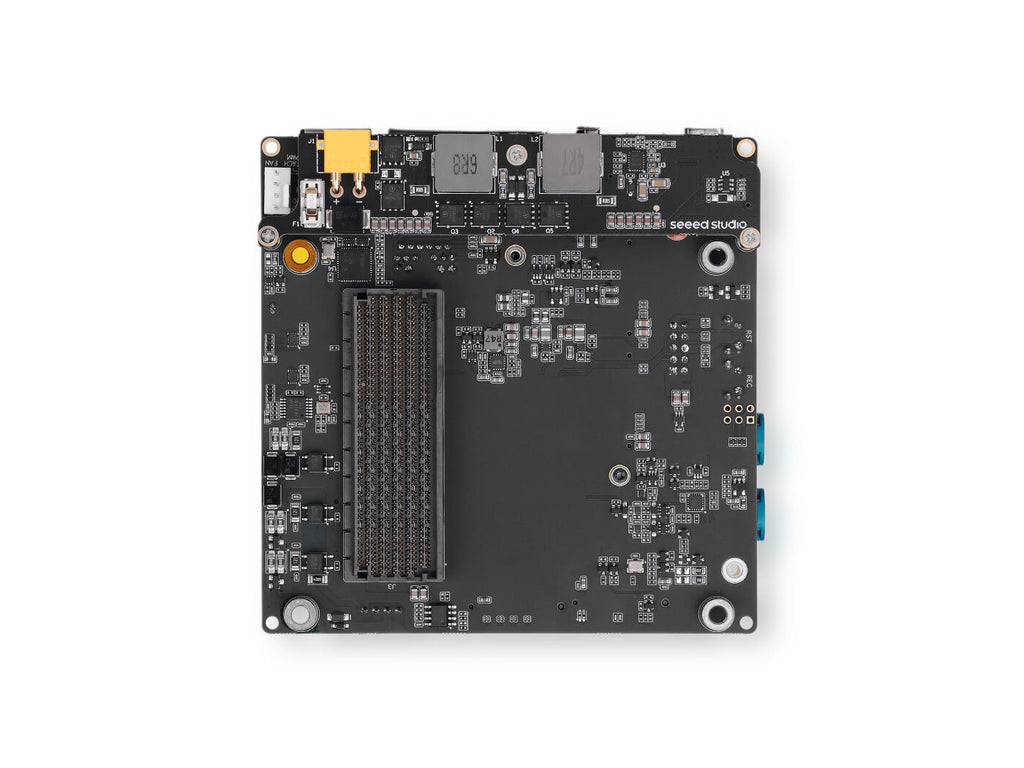

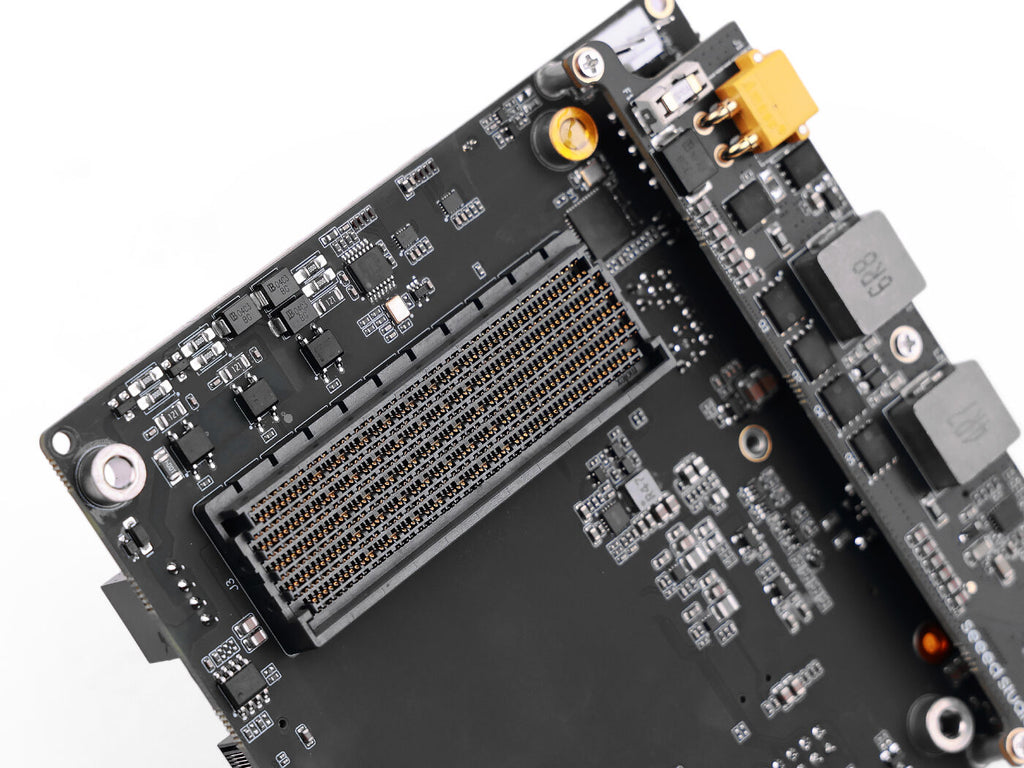

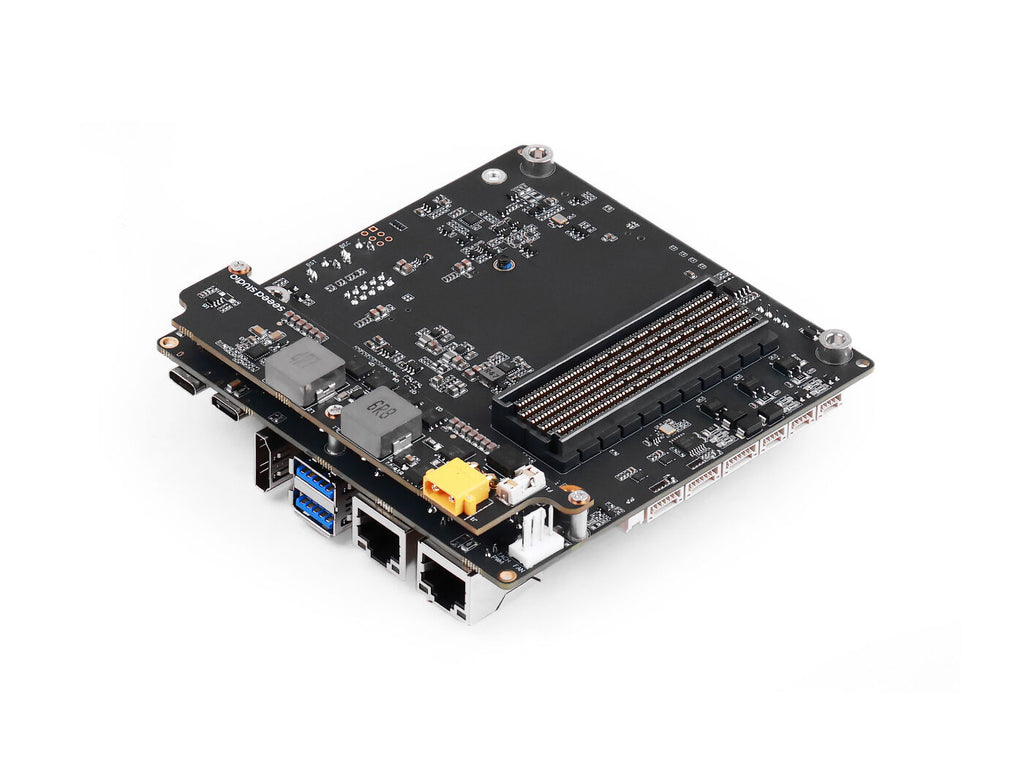

Product | reComputer Mini J501 Carrier Board | |
Storage | 1x M.2 Key M slot | |
Networking | 1x M.2 Key E slot for WiFi/Bluetooth module | |
I/O | USB | 2x USB 3.2 Type-A (10Gbps); 1x USB 3.0 Type-C (Recovery); 1x USB 2.0 Type-C (Debug); |
RJ45 | 1x 1G Ethernet 1x 10G Ethernet | |
CAN | 2x CAN （CAN-FD supported) | |
RS485 | 1x RS-485 | |
I2S | 1x I2S | |
DI/DO | 4x DI 4x DO (DO can be configured as UART) | |
Display | 1x HDMI 2.1 | |
Fan | 1x 4 pin Fan Connector (12V PWM) | |
Button | 1x Reset Button; 1x Recovery Button | |
RTC | 1x RTC 2-pin | |
Power | 1 x XT30 Connector (19-48V DC) | |

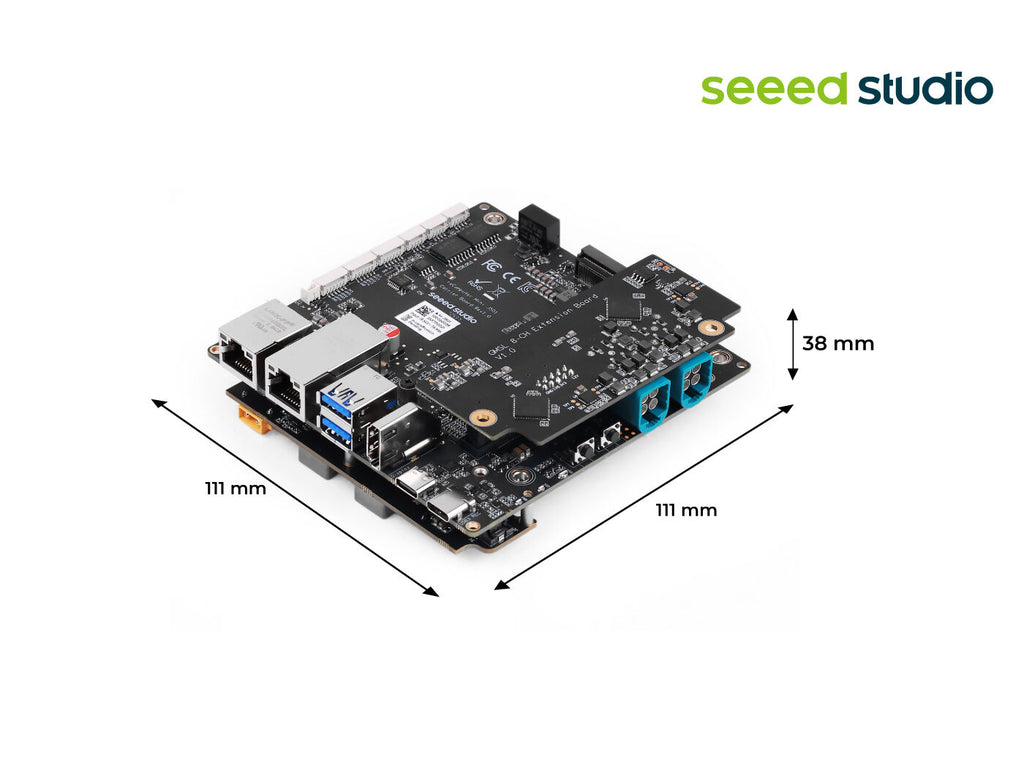

Mechanical | Dimensions (W x D x H) | 110mm x 110mm x 38mm |
Weight | 90g | |
Installation | Desk, wall-mounting | |
Operating Temperature | -10℃~60℃ （with thermal grease) -10℃~55℃ （with thermal pad) | |
Warranty | 2 Year | |
- Humanoid Robotics
- AI Robot Development
With AGX Orin module, this most powerful embedded AI system lets you create advanced robotics and edge AI applications for manufacturing, logistics, and healthcare. It’s the most powerful embedded system, pushing the limits of AI robotics. The Isaac robotics platform offers NVIDIA-accelerated systems, libraries, and generative AI models to enhance AI perception, manipulation, and simulation in robotics.
Learn about Issac platform
Isaac - AI Robot Development Platform | NVIDIA Developer
- Multi-Sensor Fusion for Autonomous Mapping & Navigation
reComputer Mini J501 supports sensor-rich autonomy by integrating data from LiDAR (via Ethernet/CAN), 3D cameras (via USB/CSI), GPS, and IMU (via UART). Using AI models and algorithms like ORB-SLAM,A-LOAM, or Nav2, it performs sensor fusion, real-time localization, path planning, and obstacle avoidance. The low-latency processing on the Orin NX SoC allows autonomous systems to adapt to changing terrain or obstacles on the fly. Its wide voltage input and compact form factor make it suitable for mobile deployment, enabling robust, edge-level autonomy without external compute.
Learn more about sensor options compatible with reComputer Mini J501 to get started.
- Capable of Bringing Generative AI to the Edge
Now you can build AI agents capable of processing large amounts of live or archived videos and images with Vision-Language Models (VLM) such as LLaVA, this new AI agents help nearly every industry summarize, search, and extract actionable insights from video using natural language.
- Fastest Way to Deploy Generative AI and Computer Vision Models
We have jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8; and others. We have configured all environment for you to provides single command deployment of projects.
Seeed Nvidia Jetson Product Catalog
Nvidia Jetson Product Comparison
Seeed Nvidia Jetson Success Cases

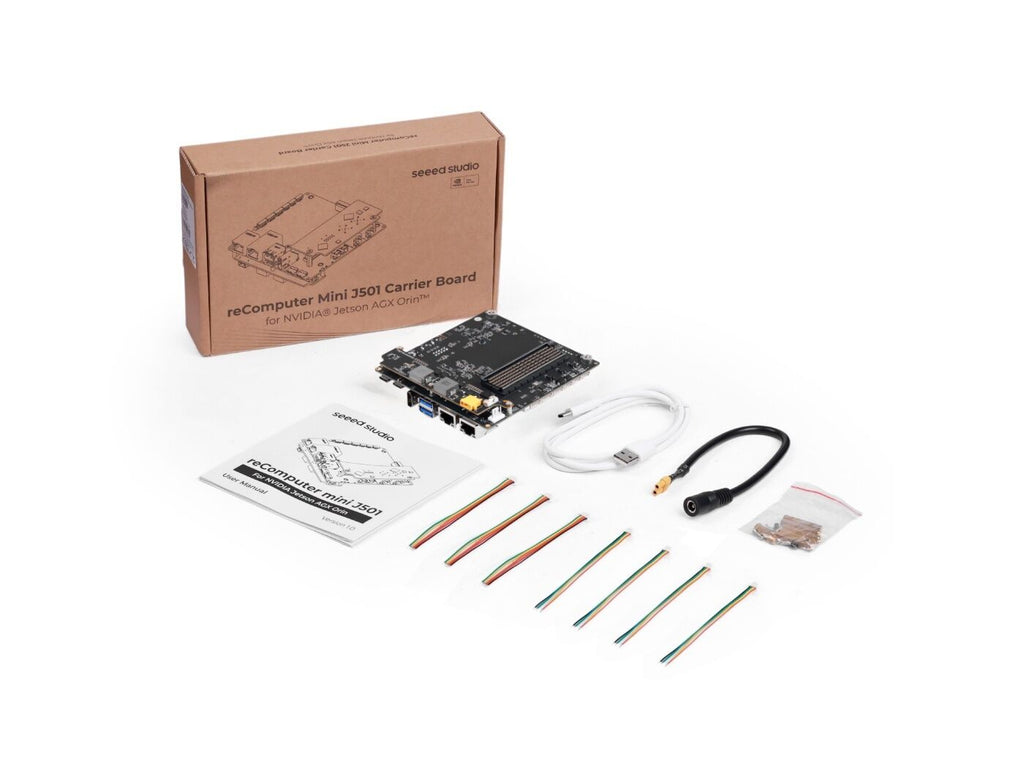

Seeed Carrier Board (reComputer Mini J501) | x1 |
Power Board | x1 |
XT30 to DC power cable | x1 |
USB Type-C to Type-A cable | x1 |
GH-1.25 4-pin 100mm JST Cable | x3 |
GH-1.25 6-pin 100mm JST Cable | x3 |
M2.5*4 Screw | x1 |
M2*6 Screw | x3 |
M2.5*25 Stud | x4 |
M2.5*8 Screw | x4 |
| HSCODE | 8473309000 |
| USHSCODE | 8473309100 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
