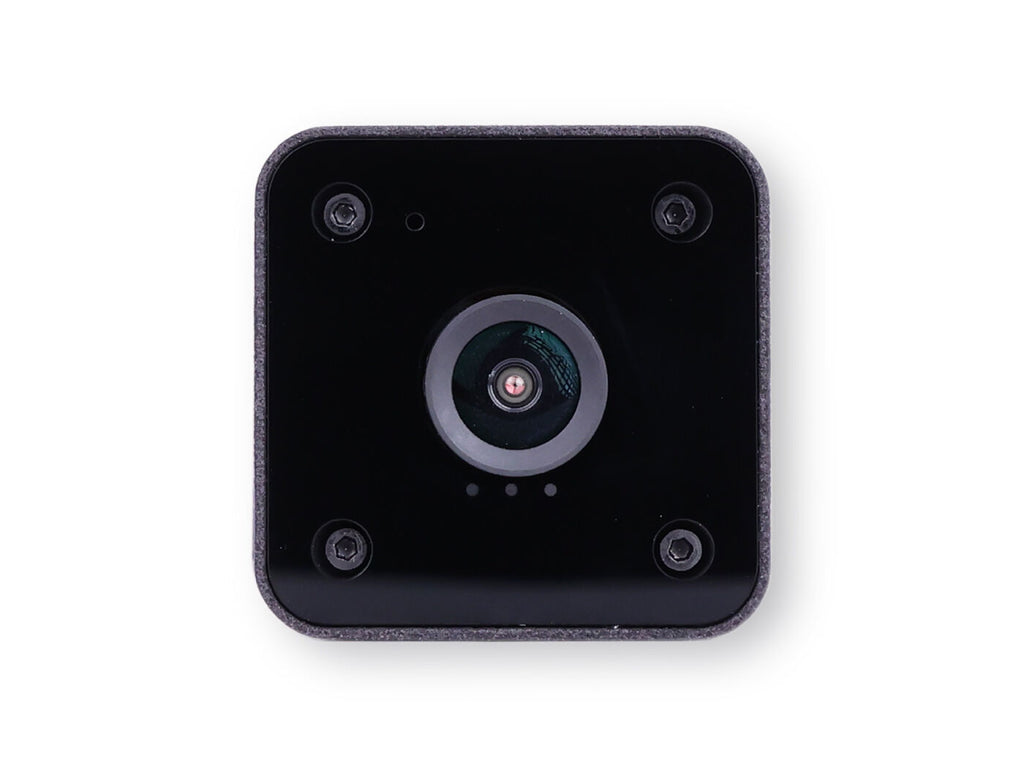

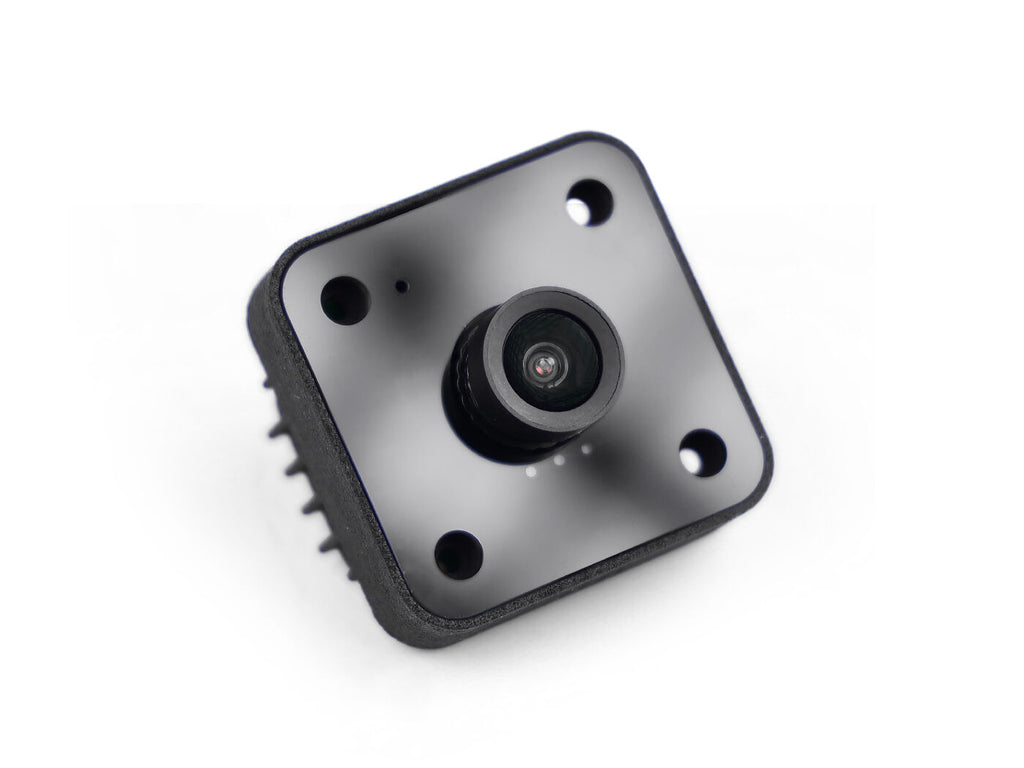

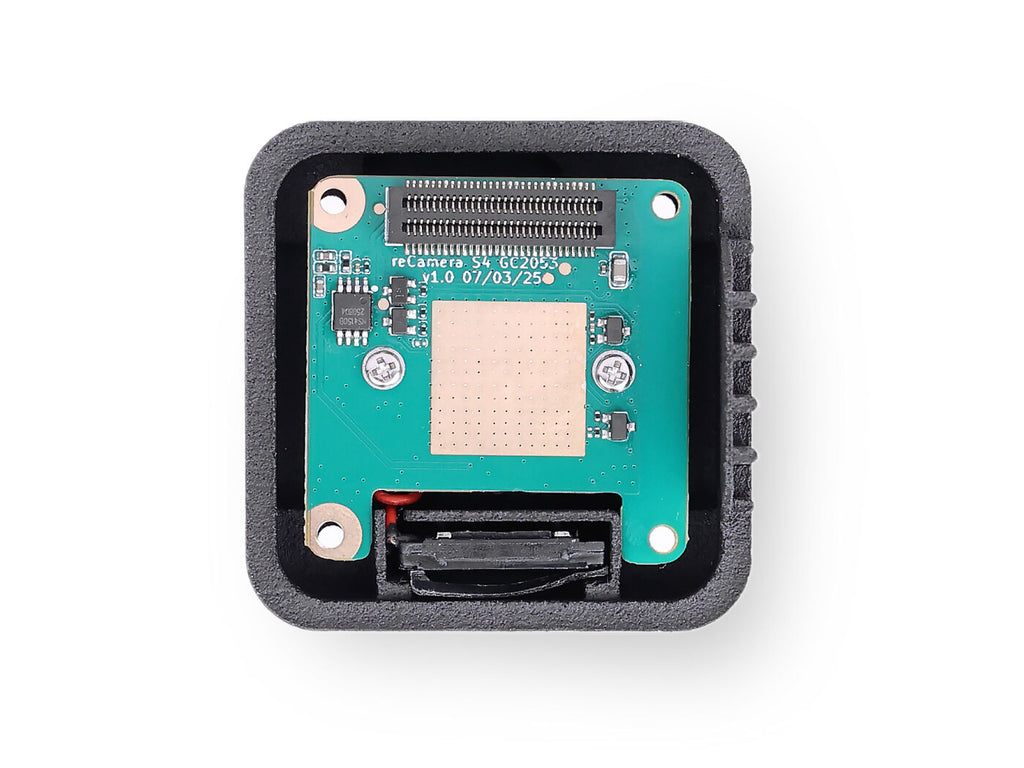

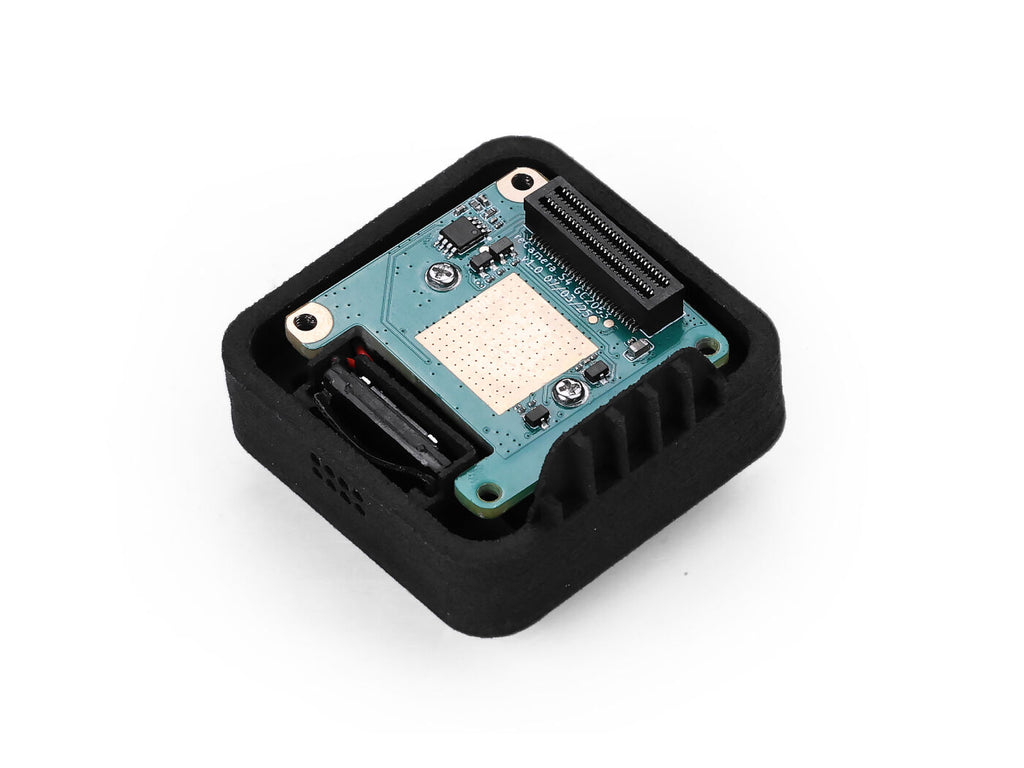

This is the sensor board for reCamera 2002x. It integrates the GC2053 image sensor, delivering higher image quality compared to the OV5647 used in the standard reCamera Kit. The board features an M12 lens mount, allowing easy replacement with any compatible 2MP M12 lens to adjust the field of view as needed.
- High Quality: Equipped with a 1/2.9-inch GC2053 CMOS sensor, providing superior image quality.
- M12 Lens Mount: Default 90° FOV, easily replaceable with any standard M12 lens.
- Speaker and Mic: Supports audio input and playback.
- Status LEDs: Three indicators — Power (Green), Disk (Blue), and User (Red).
| reCamera Sensor Board GC2053 |
Sensor | GC2053 |
Optical Format | 1/2.9inch |
Pixel Size | 2.8um x2.8um |
Resolution | 1920x1080 |
Max Frame rate | 30fps@full size |
lens mount | M12 |
FOV | 93° |
Distortion | <0.5% |
FocalLength | 2.9mm |
Lens structure | 1G4P |

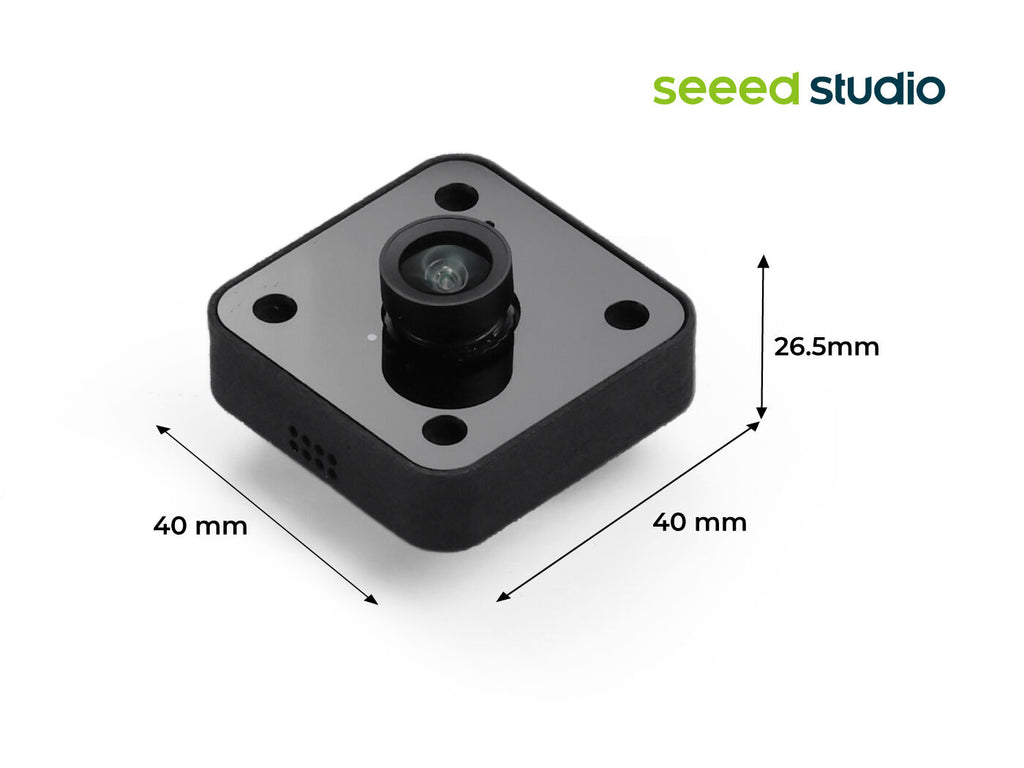

Dimension | 40x40x26.4mm |
Operation Temperature | -20～50°C |
Operation Humidity | 95% |

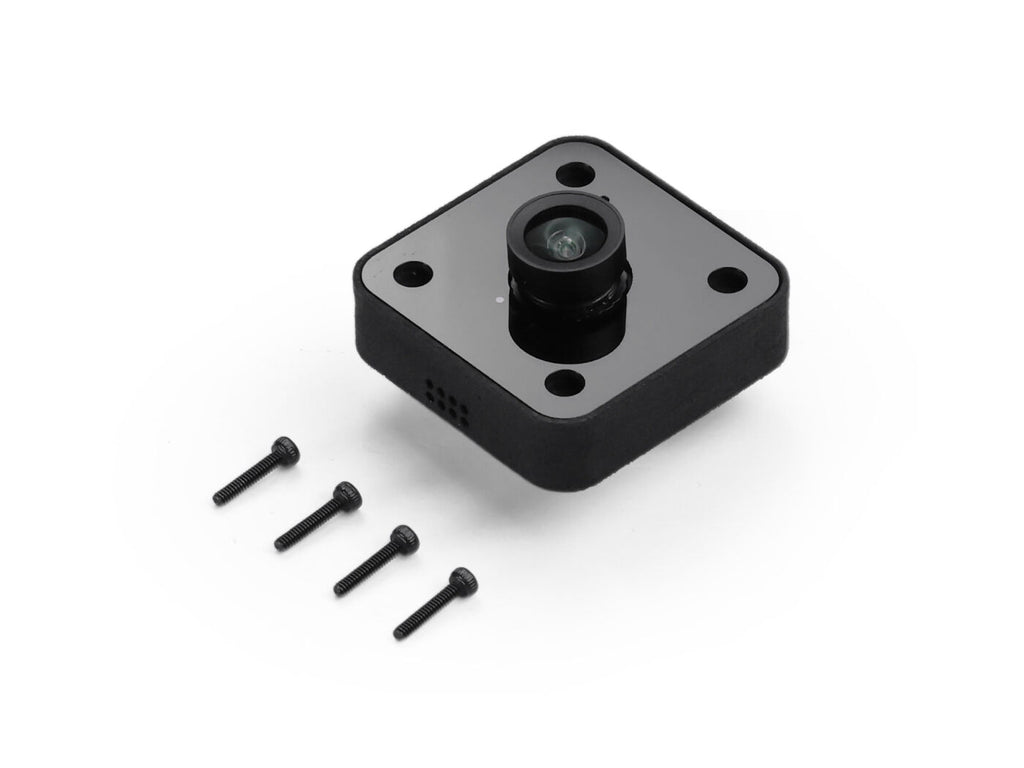

reCamera Sensor Board GC2053 | x1 |
plastic Cover | x1 |
M2x10 screw | x4 |
| HSCODE | 8529904900 |
| USHSCODE | 8525895050 |
| UPC | |
| EUHSCODE | 8517600000 |
| COO | CHINA |
