- Sub-millimeter Accuracy: Operates at an ideal range of 7 cm to 50 cm with minimum object detection down to <0.1 mm for defects and <1 mm for objects at 7 cm, making it perfect for high-precision tasks.
- RGB via ISP: Uses an image signal processor (ISP) to enhance data from the depth sensors, allowing for perfectly matched RGB and depth data without the parallax errors associated with a dedicated RGB sensor.
- Global Shutter: Equipped with global shutter sensors to capture high-speed movements without distortion, ensuring reliable performance in dynamic environments.

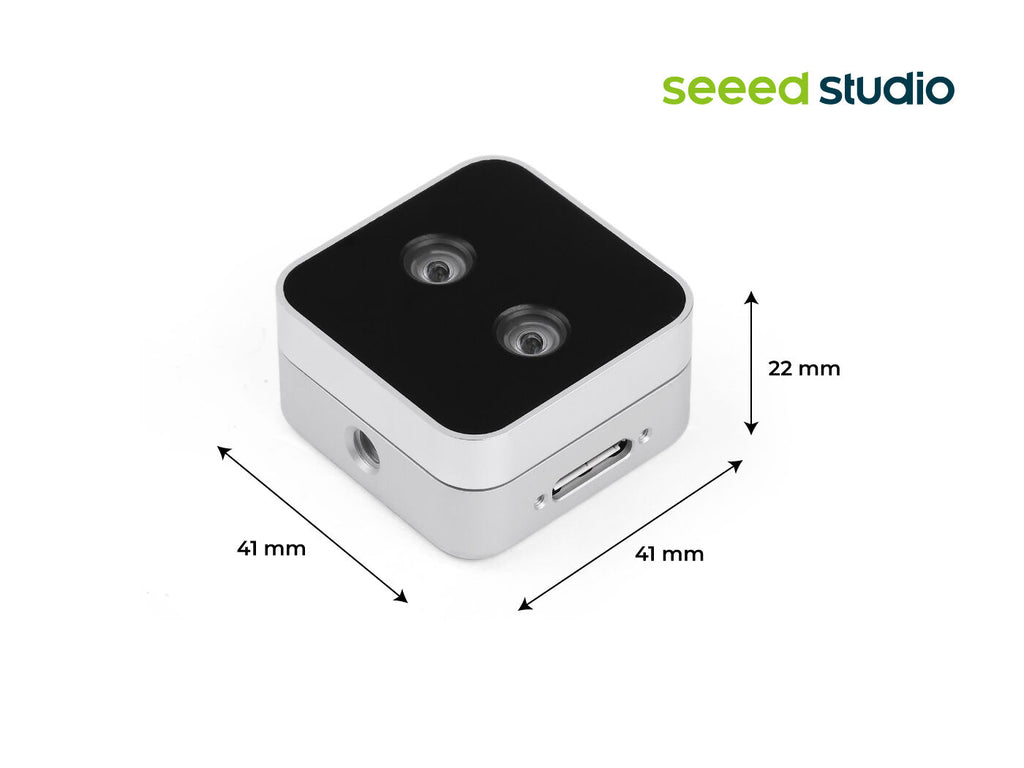

- Small & Lightweight: At just 42 mm × 42 mm × 23 mm and 60 g, smaller than a golf ball, it is designed for tight integration into robotic arms and compact devices.
- SDK 2.0 Support: Fully compatible with the cross-platform Intel RealSense SDK 2.0, supporting Windows, Linux, Android, and macOS with wrappers for Python, ROS, C/C++, and C#.
| Voltage Range | 5V (USB Powered) |
| Operating Temperature | 0°C ~ 35°C (Ambient) |
| Mechanical Dimension | 42mm x 42mm x 23mm |

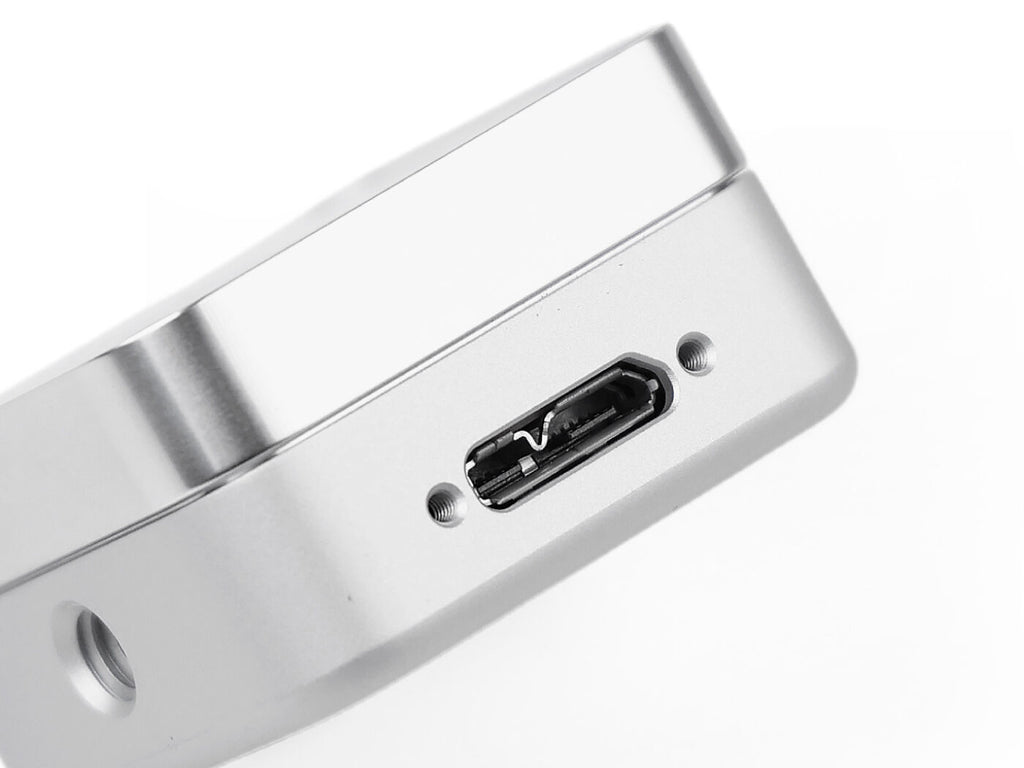

| Communication Interface | USB-C 3.1 Gen 1 |
| Depth Technology | Stereoscopic |
| Image Sensor Tech | Global Shutter |
| Depth FOV | 87° x 58° |
| RGB FOV | 87° x 58° (ISP derived) |
| Depth Resolution | Up to 1280 x 720 (90fps) |
| RGB Resolution | Up to 1280 x 720 (30fps) |
| Ideal Range | 7cm to 50cm |
| IMU | No |
- Medical & Healthcare (Wound Management)
- Manufacturing & Inspection
- Agriculture (Robotic Harvesting)
- Close-Range Robotics

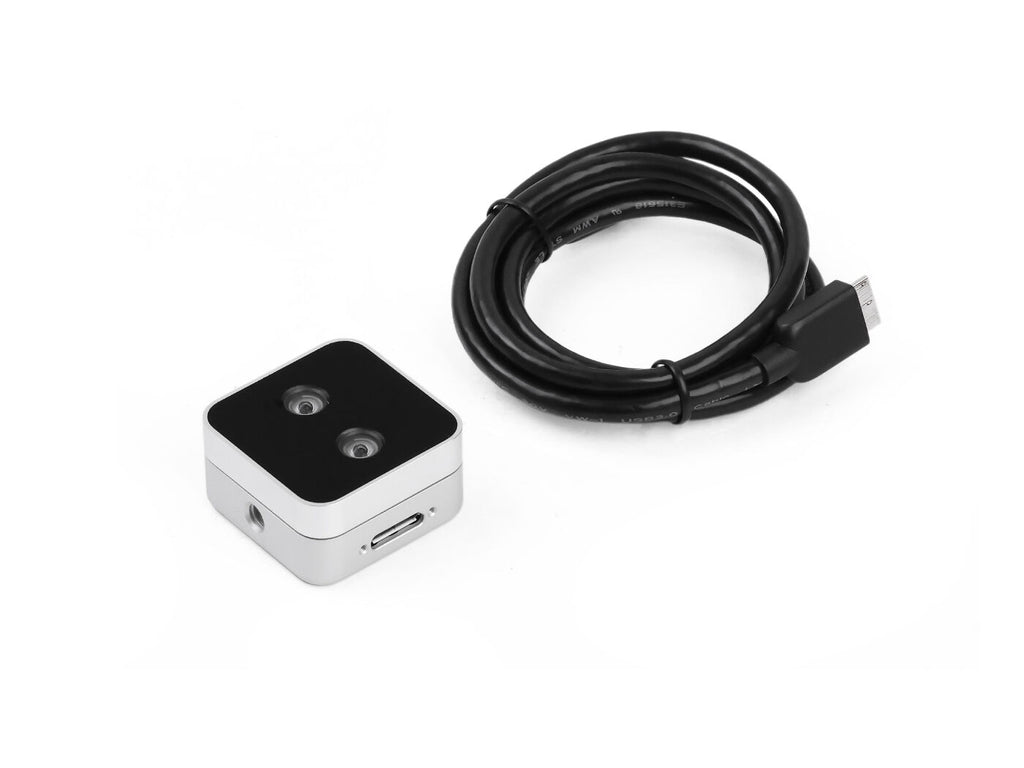

| RealSense Depth Camera D405 | x1 |
| USB 3.0 Type-C Cable | x1 |
| Mini Tripod | x1 |
| HSCODE | 8525891900 |
| USHSCODE | 8525895050 |
| UPC | |
| EUHSCODE | 8517600000 |
| COO | CHINA |
