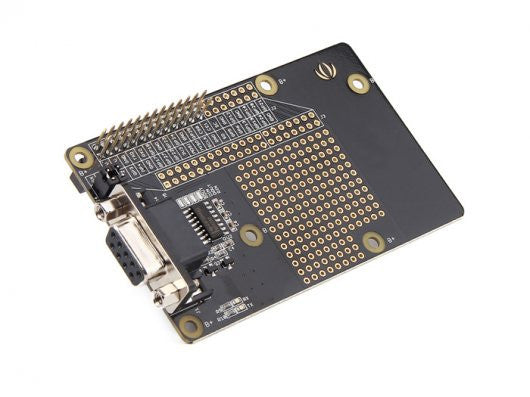

Raspberry Pi RS232 Board v1.0

Price:
Sale price A$23.88   Inc. GST
SKU:
SS103030028
Out Of Stock

We will notify you when this product becomes available.

Raspberry Pi RS232 Board v1.0 is a standard communication port for industry equipment.This module is base on MAX3232,which is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/EIA-232-F voltage levels from a single 5-V supply. The shield integrates DB9 connectors (female) that provide connection to various devices with RS232 interface. Also the RS232 headers will facilitate your connections and commissioning. It provides the welding areas to make full use of extra space on it, which is highly convenient for prototyping.
Features:
  • Low Supply Current:300uA
  • Guaranteed Data Rate:120kbps
  • Meets EIA/TIA-232 Specifications Down to 3.0V
  • Pin Compatible with Industry-Standard MAX232
  • Guaranteed Slew Rate:6V/us
  • LED Indicator
  • DB9 Connectors(female)
Specification:

Compatible:Raspberry Pi ; Other main board via jumpers;
Power interface:Micro USB;
Dimensions:91.20 * 56.15mm;
Power supply: 3.3v , 5V ,
Documents:
Please visit wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
