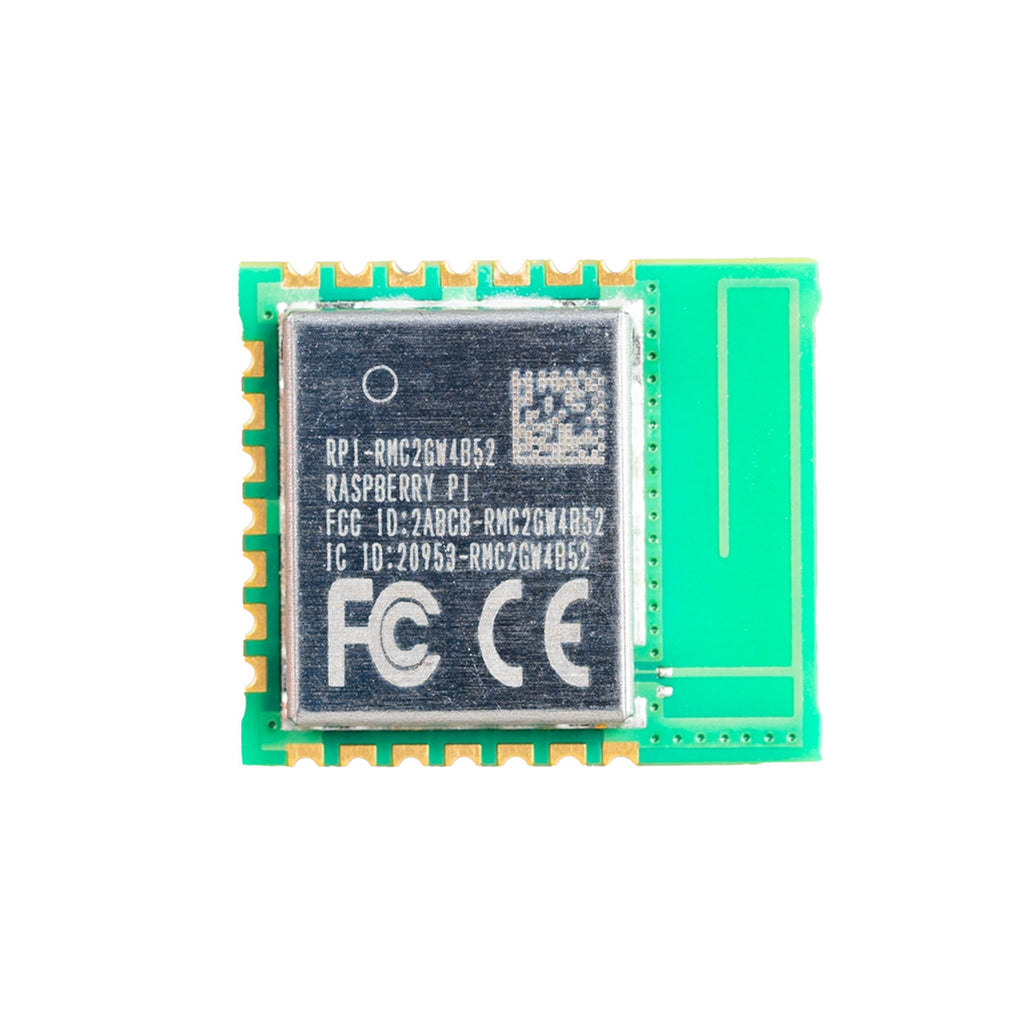

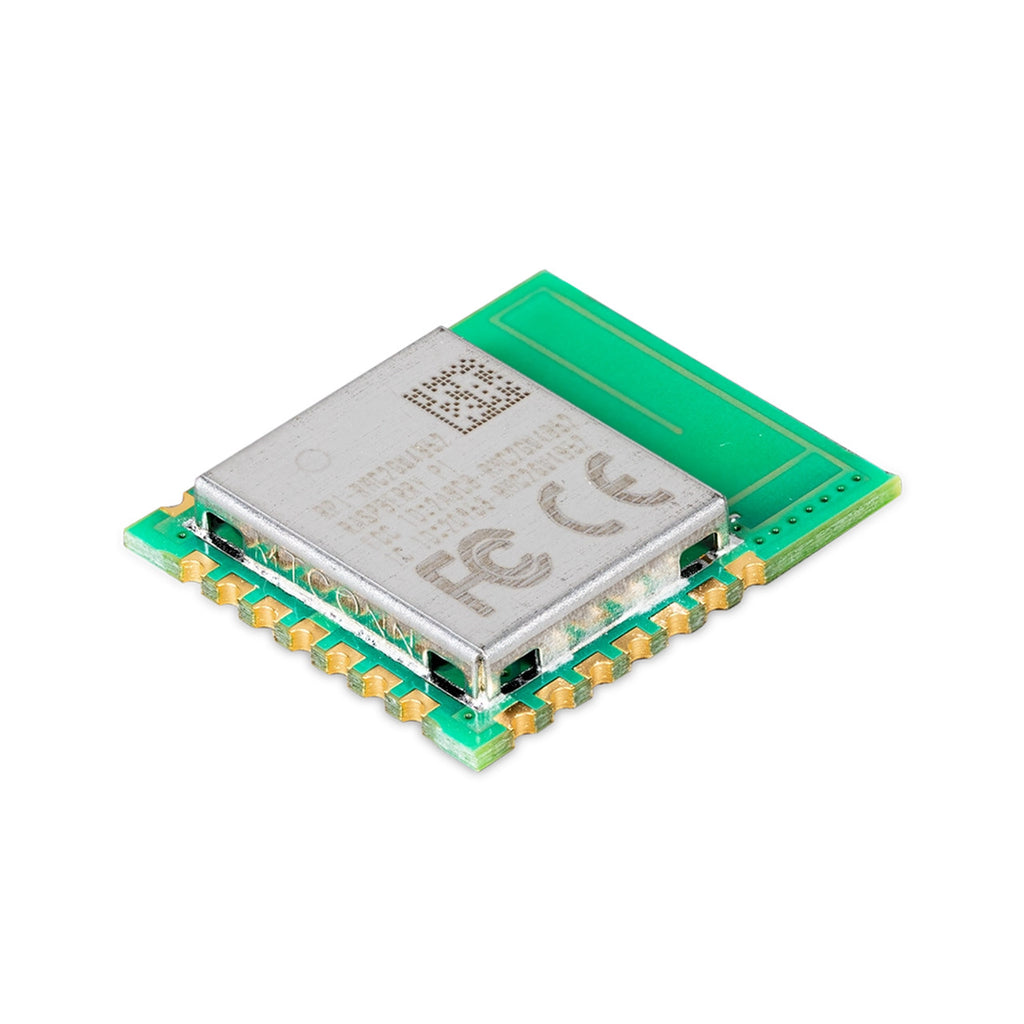

The Raspberry Pi Radio Module 2 offers a compact wireless interface tailored for Raspberry Pi microcontrollers. Equipped with Infineon's CYW43439 chip, it delivers 2.4GHz Wi-Fi 4 (802.11n) and Bluetooth 5.2 connectivity, suited for efficient, low-power IoT and embedded systems. Its castellated edge pads enable versatile mounting options, while the integrated 2.4GHz antenna and full modular certification simplify compliance. Requiring few external parts, this module is optimized for cost-effective large-scale manufacturing and swift prototyping.
Specifications
- Wi-Fi 4 (802.11n), single-band (2.4 GHz) and Bluetooth 5.2 support
- Bluetooth Classic and Bluetooth Low Energy (LE)
Supports up to 100 m (Class 1) and 10 m (Class 2)
Full software compatibility with Pico W and Pico 2 W SDK - Simple GPIO expander: Three host-controlled GPIOs for added I/O capabilities
- Low-pin-count gSPI host interface allows for simplified integration with minimal I/O requirements
- SISO1 configuration supports efficient single antenna wireless performance
- Supports 20 MHz channels with data rates up to 96 Mbps (PHY rate)
- Operating temperature of −30°C to +70°C
- IEEE Power Save PM1 DTIM1 average rate 1: 1.19 mA
Receive active rate MCS7 (at –50 dBm): 43 mA
Transmit active rate MCS7 (at 16 dBm): 271 mA
