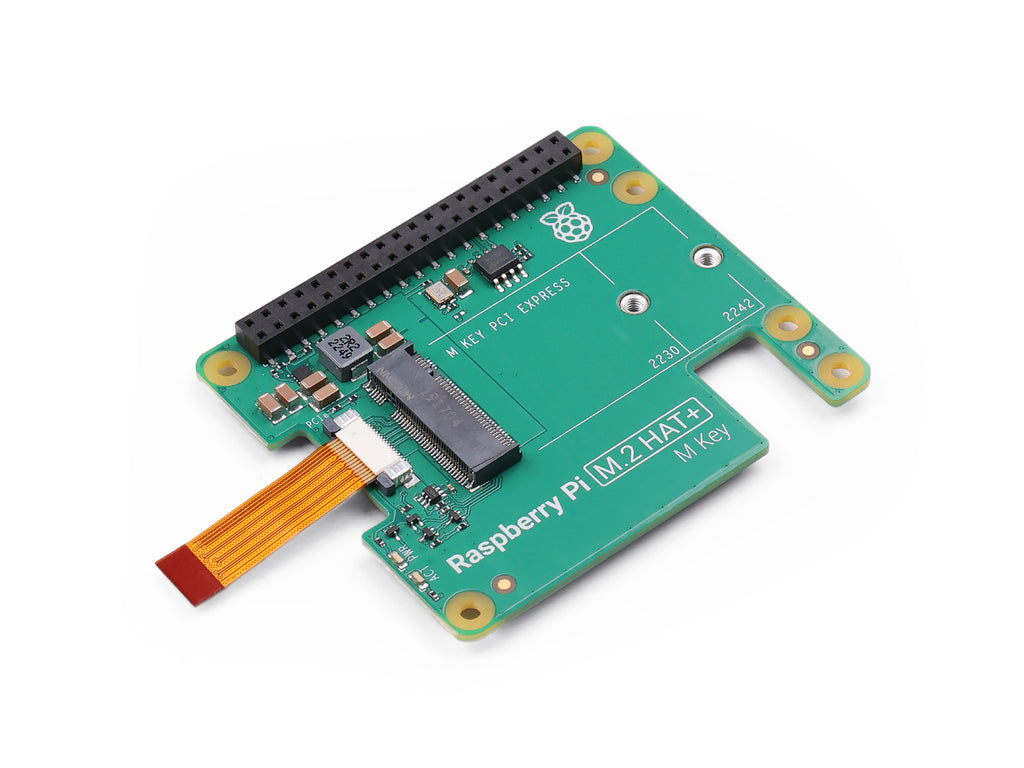

Raspberry Pi M.2 HAT+ (for Raspberry Pi 5)

Price:
Sale price A$27.65   Inc. GST
SKU:
SS103990663
251 units Ships in 7 to 10 days

Feature

  • Convenient Connectivity: It features a single-lane PCIe 2.0 interface (500 MB/s peak transfer rate), and supports devices that use the M.2 M key edge connector and the 2230 or 2242 form factor.
  • Compatibility with Raspberry Pi 5: Specifically designed for the Raspberry Pi 5 and fitted to a Raspberry Pi 5 with the  Raspberry Pi Active Cooler in place.
  • Various Peripheral Accessories:Supplied with ribbon cable, 16mm stacking header, threaded  spacers and screws, and knurled double-flanged screw to  secure and support the M.2 peripheral.

Description

The Raspberry Pi M.2 HAT+ accessory is a designated and official M.2 connector specifically designed for use with the Raspberry Pi 5. This versatile HAT+ allows for easy connection of M.2 peripherals, such as NVMe drives and AI accelerators, to the Raspberry Pi 5's PCIe 2.0 interface. Capable of fast data transfer (up to 500 MB/s) to and from NVMe drives and other PCIe accessories, the Raspberry Pi M.2 HAT+ features a single-lane PCI Express 2.0 interface exposed on a 16-pin, 0.5mmpitch FPC connector. The M.2 HAT+ M Key serves as a mechanical adapter board, converting between this connector and a subset of the M.2 standard. It supports devices with the M.2 M key edge connector in the 2230 and 2242 form factors, and can supply up to 3A to connected M.2

Specifications

Interface

single-lane PCIe 2.0 (up to 500 MB/s)

M.  2 M key edge connector

Raspberry Pi standard 40-pin header

Operating temperature

0℃ to 50℃

Production lifetime

 January 2032

Part List

Raspberry Pi M.2 HAT+

x 1

Documentations

ECCN/HTS

HSCODE8543909000
USHSCODE8543708800
UPC
EUHSCODE8543709099
COOCN
