Raspberry Pi High Quality Camera – M12 Mount
Capture stunning detail and performance with the Raspberry Pi High Quality Camera (M12 Mount), a powerful imaging solution designed for both hobbyists and industrial users. With a 12.3MP Sony IMX477 sensor and support for a wide variety of interchangeable M12 lenses, this camera offers superior image quality, adaptability, and low-light performance for a wide range of applications.
🔍 Key Features
- ✅ High Resolution: 12.3 megapixel stacked back-illuminated sensor (Sony IMX477)
- ✅ Excellent Low-Light Sensitivity: Large 7.9mm diagonal sensor with 1.55μm × 1.55μm pixel size
- ✅ M12 Lens Compatibility: Works with most standard M12 lenses, ideal for compact and custom applications
- ✅ Flexible Mounting: Comes with 1/4”-20 tripod mount and integrated M12 aluminium lens holder
- ✅ High Customizability: Use with third-party adapters for even broader lens support
- ✅ Extended Focus Range: Back focus length of 2.6mm–11.8mm for M12 lens adjustments
- ✅ Infrared Filter: Integrated IR-cut filter (removable for NoIR applications)
- ✅ Universal Compatibility: Works with all Raspberry Pi boards with standard camera connectors (adapter required for older Pi Zero models)
📦 What’s in the Box

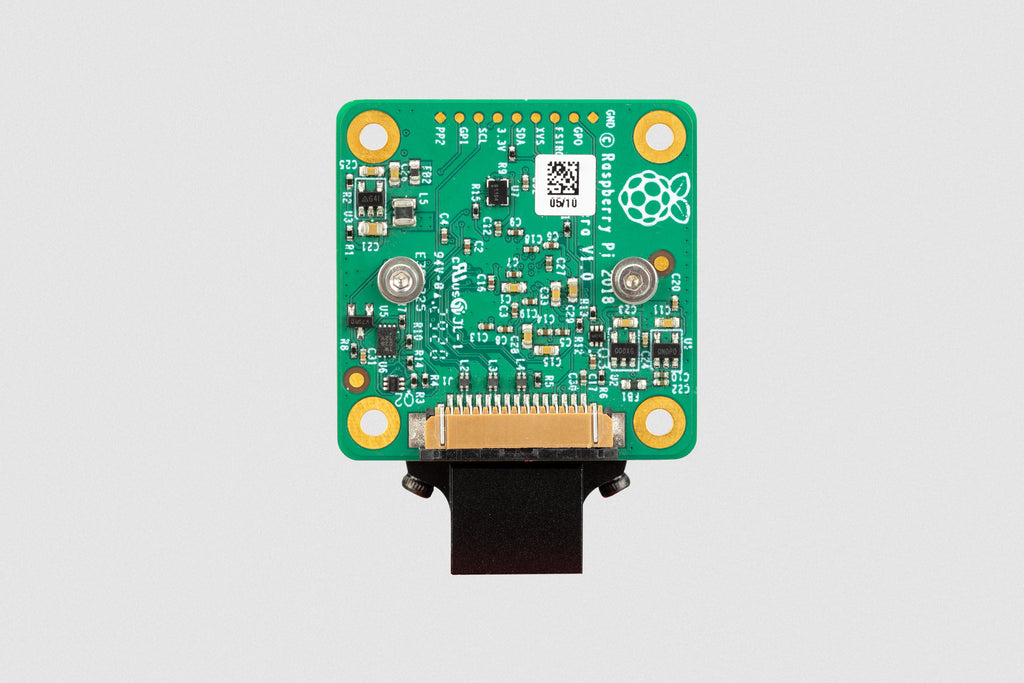

- High Quality Camera board with pre-mounted M12 lens holder
- 200mm FPC ribbon cable for camera-to-Raspberry Pi connection
- Three lens locking rings (1 installed, 2 spares)
- Integrated tripod mount for stable setup
📐 Specifications
- Sensor: Sony IMX477, 12.3MP
- Sensor Size: 7.9mm diagonal
- Pixel Size: 1.55μm x 1.55μm
- Output: RAW12/10/8, COMP8
- Lens Format: 1/2.3” or larger
- Back Focus Length: 2.6mm–11.8mm (M12 Mount)
- Dimensions: 38mm × 38mm (PCB)
- Tripod Thread: 1/4”-20 UNC
- Compliance: EMC 2014/30/EU, RoHS 2011/65/EU, FCC Class B
🎯 Ideal Applications
- 📸 Scientific and industrial imaging
- 🔍 Machine vision and AI projects
- 🎥 Surveillance and monitoring systems
- 📦 Product inspection and quality control
- 🎮 Custom camera projects for Raspberry Pi enthusiasts
Production Guarantee: Available until at least January 2030
Enhance your Raspberry Pi projects with the clarity and adaptability of the High Quality Camera (M12 Mount). Order now and unlock new possibilities!
