Raspberry Pi Compute Module CM4108000

Price:
Sale price A$201.15   Inc. GST
SKU:
SS102991438
40 units Ships in 7 to 10 days

Feature

  • High-performance 64-bit quad-core processor
  • Dual display support at resolutions up to 4K
  • Hardware video decode at up to 4Kp60
  • Dual camera interfaces
  • PCIe Gen 2 x1 interface

Description

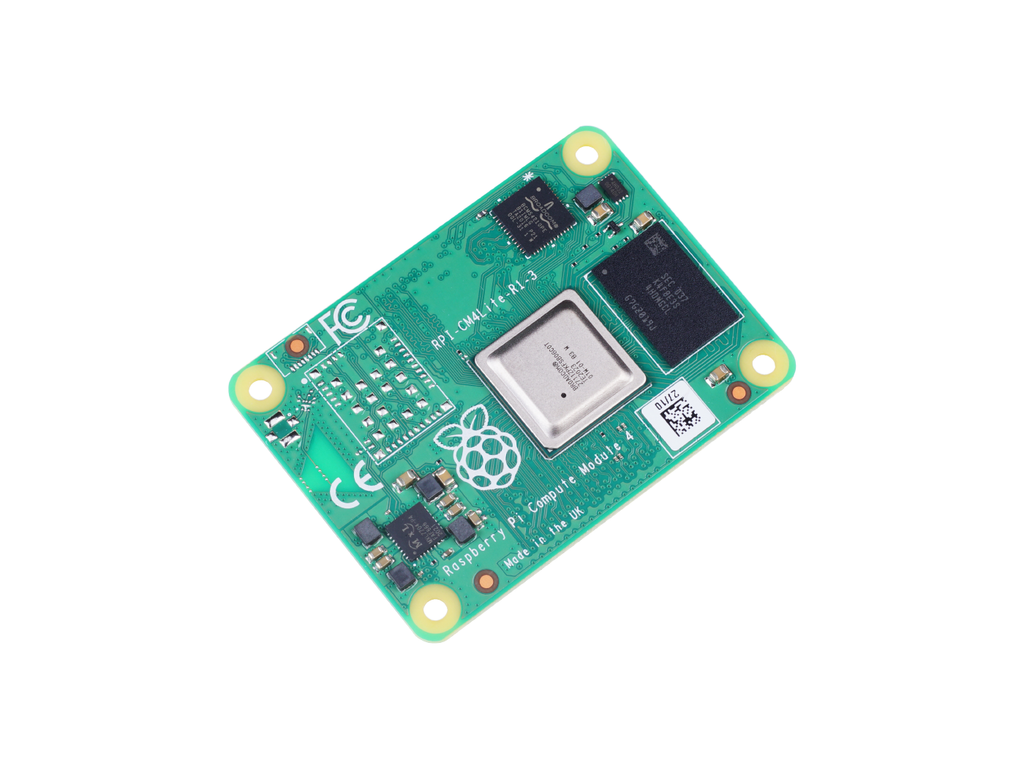

The Raspberry Pi Compute Module 4 utilizes the power of the Raspberry Pi 4 Model B in a smaller package, facilitating its usage in various products.

The Compute Module CM4108000 features a 64-bit quad-core processor for efficient performance, 8GB of LPDDR4 RAM, dual-display capabilities reaching up to 4K resolution, 4Kp60 hardware video decode, Gigabit Ethernet, USB 2.0, dual camera interface, PCIe Gen 2 x1 interface, and dual-band 2.4/5.0GHz wireless LAN and Bluetooth 5.0.

Specifications

Specification

Details

Processor

Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

Memory

8GB LPDDR4 RAM

Connectivity

Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options



Onboard Gigabit Ethernet PHY supporting IEEE1588



1 × USB 2.0 interface



PCIe Gen 2 x1 interface



28 GPIO signals



SD card interface for SD card or external eMMC (for use only with Compute Module 4 variants without eMMC)

Video

Dual HDMI interface (up to 4Kp60 supported)



2-lane MIPI DSI display interface



2-lane MIPI CSI camera interface



4-lane MIPI DSI display interface



4-lane MIPI CSI camera interface

Multimedia

H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics

Input power

5V DC

Operating temperature

0 to +80°C

Dimensions

55 mm × 40 mm

Production lifetime

Raspberry Pi Compute Module 4 will remain in production until at least January 2028

Compliance

For a full list of local and regional product approvals, please visit:

Documents - Product Information Portal - Raspberry Pi

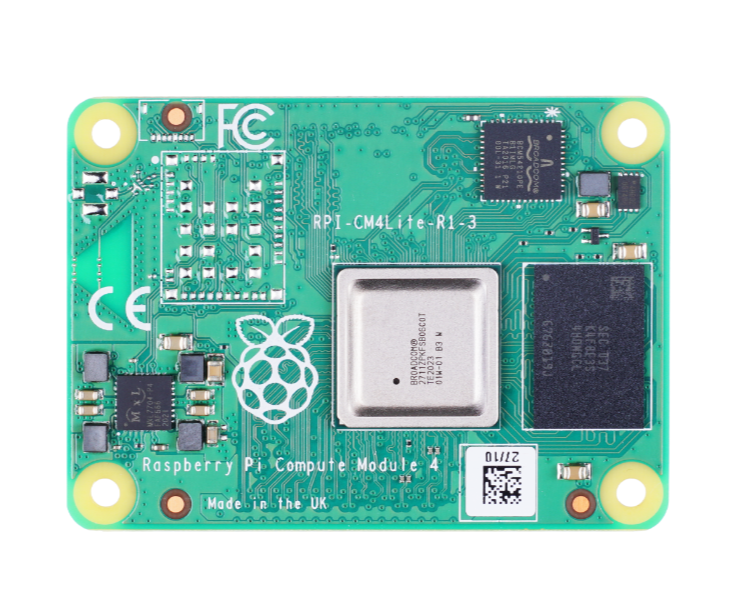

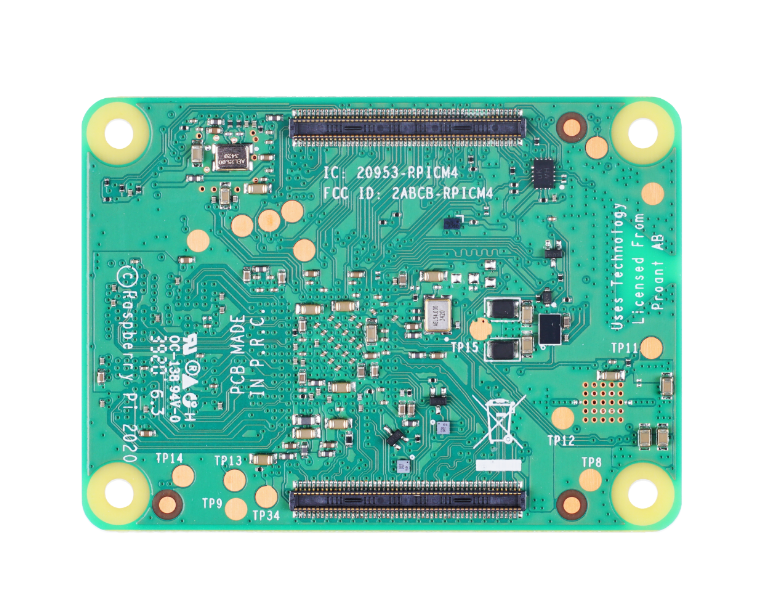

Hardware Overview

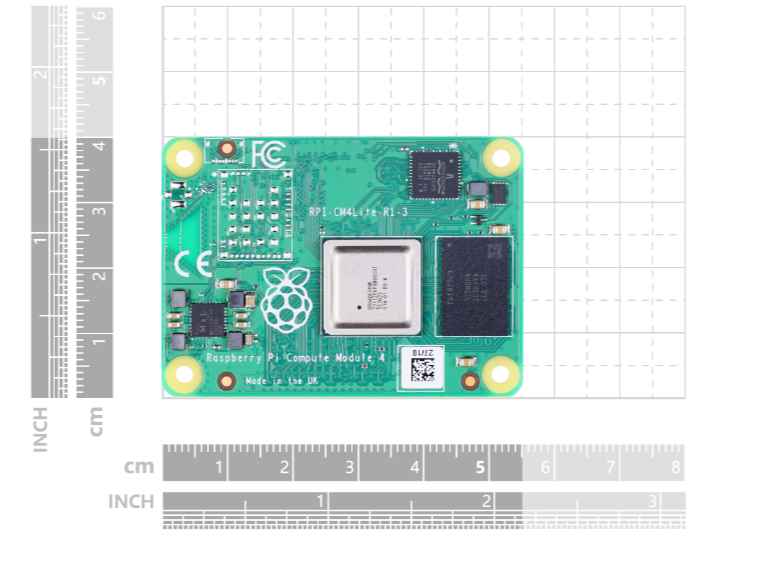

Dimensions



Note

  • 4 x M2.5 holes in corners
  • All dimensions are in mm

Part List

Raspberry Pi Compute Module 4 - 8GB RAM, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0

x1

ECCN/HTS

HSCODE8473309000
USHSCODE8517180050
UPC
EUHSCODE8473302000
COOUK
EU DoC1
RoHS1
UK DoC1
