Feature
- High-performance 64-bit quad-core processor
- Dual display support at resolutions up to 4K
- Hardware video decode at up to 4Kp60
- Dual camera interfaces
- PCIe Gen 2 x1 interface
Description

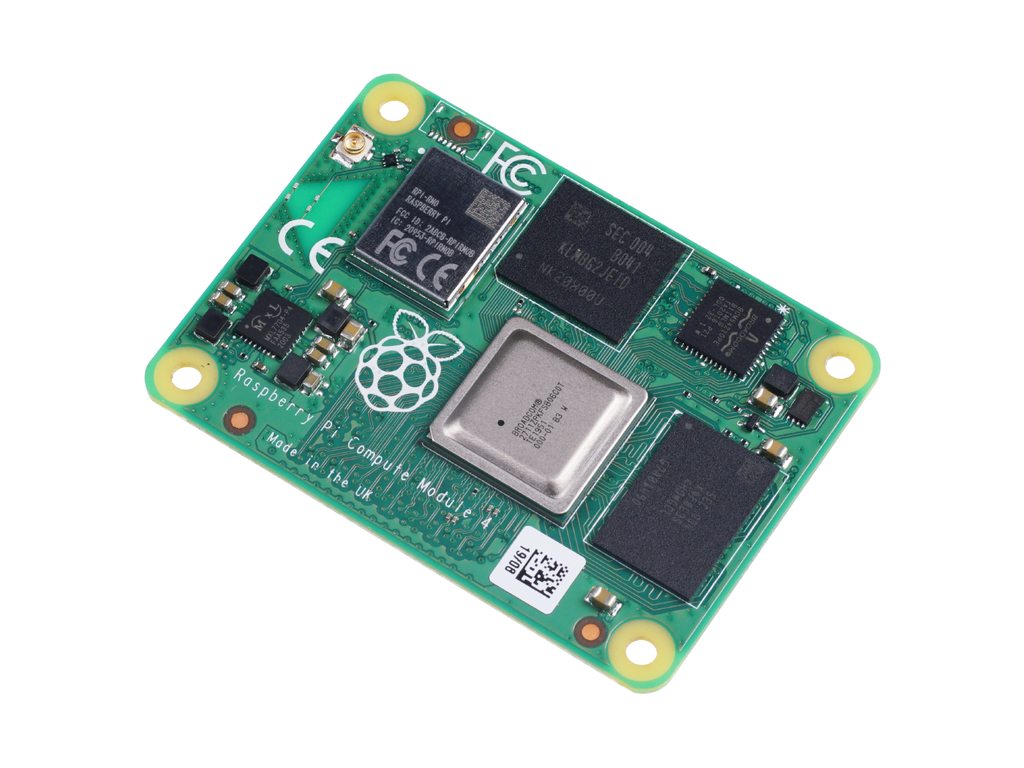

Raspberry Pi Compute Module 4 utilizes the processing capabilities of the widely-used Raspberry Pi 4 Model B, making it ideal for embedding into compact products.
This Raspberry Pi Compute Module 4 version features a powerful 64-bit quad-core processor, 1GB LPDDR4 RAM, 8GB eMMC, dual-display support up to 4K resolutions, hardware video decoding up to 4Kp60, Gigabit Ethernet, USB 2.0, dual camera interfaces, PCIe Gen 2 x1 interface, and dual-band 2.4/5.0GHz wireless LAN and Bluetooth 5.0 capabilities.
Specifications
Specification | Details |
Processor | Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz |
Memory | 1GB LPDDR4 RAM, 8GB eMMC |
Connectivity | Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options |
Onboard Gigabit Ethernet PHY supporting IEEE1588 | |
1 × USB 2.0 interface | |
PCIe Gen 2 x1 interface | |
28 GPIO signals | |
SD card interface for SD card or external eMMC (for use only with Compute Module 4 variants without eMMC) | |
Video | Dual HDMI interface (up to 4Kp60 supported) |
2-lane MIPI DSI display interface | |
2-lane MIPI CSI camera interface | |
4-lane MIPI DSI display interface | |
4-lane MIPI CSI camera interface | |
Multimedia | H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics |
Input power | 5V DC |
Operating temperature | 0 to +80°C |
Dimensions | 55 mm × 40 mm |
Production lifetime | Raspberry Pi Compute Module 4 will remain in production until at least January 2028 |
Compliance | For a full list of local and regional product approvals, please visit: |
Hardware Overview
Dimensions
*Note
4 x M2.5 holes in corners
All dimensions are in mm
Part List
Raspberry Pi Compute Module 4 - 1GB RAM, 8GB eMMC, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0 | x1 |
ECCN/HTS
| HSCODE | 8473309000 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8473308000 |
| COO | UK |
| RoHS | 1 |
