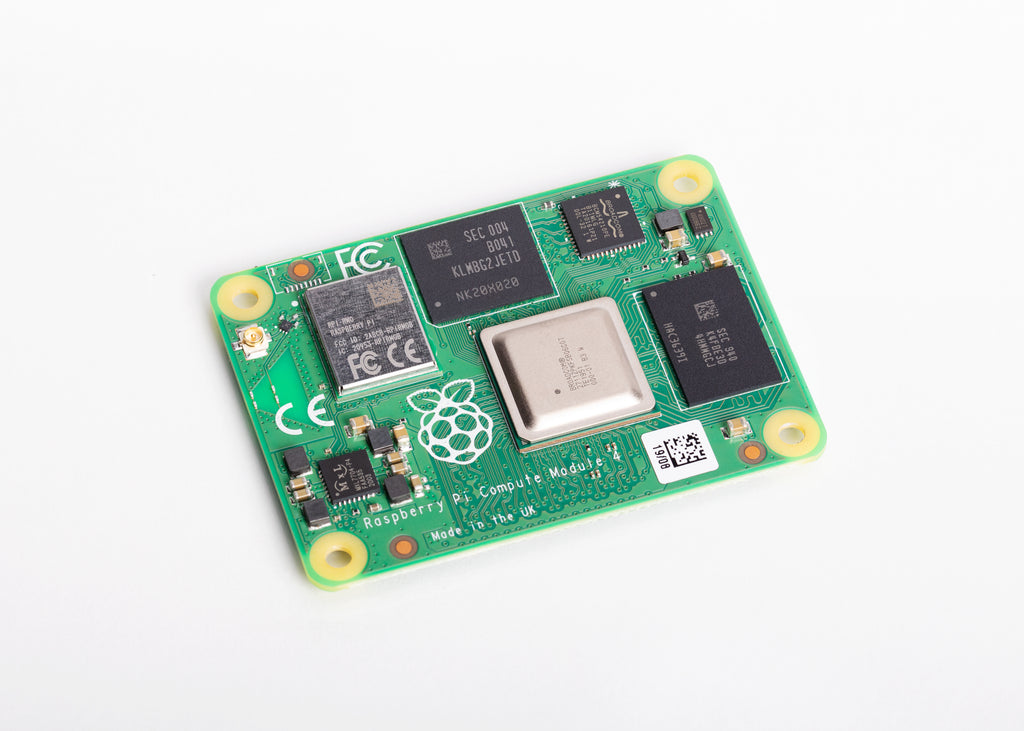

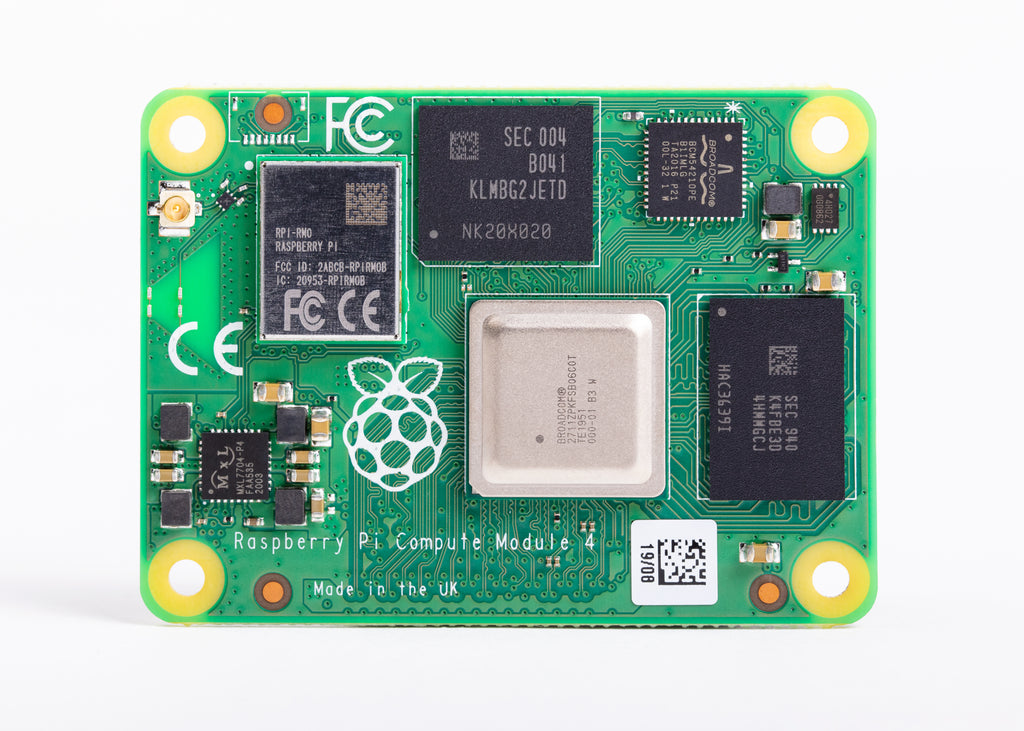

The CM4104000 is a Raspberry Pi Compute Module 4 Lite (CM4Lite) that serves as a System on Module (SoM) with integrated processor, memory, and power circuitry. This allows designers to utilize the Raspberry Pi hardware and software stack in their own custom systems and sizes. Based on the Raspberry Pi 4 Model B, the CM4 offers a lower-cost option without the eMMC fitted, known as the Raspberry Pi CM4Lite. Unlike previous Compute Module generations which shared the same DDR2-SODIMM-mechanically-compatible form factor, the CM4Lite has a new design with two 100-pin high-density connectors for its electrical interface. Additionally, the physical form factor is smaller overall, taking into account the connectors. Its wireless capabilities include 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, and BLE, with the option for onboard or external antennas for connectivity.
- Features 4GB RAM, 0GB (Lite) eMMC storage and wireless connectivity
- Broadcom BCM2711, quad core Cortex-A72 (ARM v8) 64-bit SoC at 1.5GHz
- H.265 (HEVC) (upto 4Kp60 decode), H.264(up to 1080p60 decode, 1080p30 encode), OpenGL ES 3.0 graphics
- Gigabit Ethernet PHY supporting IEEE 1588, 1 × PCIe 1-lane Host, Gen 2 (5Gbps)
- 1 × USB 2.0 port (high speed) and 2 × HDMI 2.0 ports (up to 4Kp60 supported), 1 × SDIO 2.0 (CM4Lite)
- 28 × GPIO supporting either 1.8V or 3.3V signalling and peripheral options
- 5x UART, 5x I2C, 5X SPI, 1x SDIO interface, 1x DPI (parallel RGB display), 1xPCM, 2×PWM, 3×GPCLK O/P
- MIPI DSI: 1 × 2-lane MIPI DSI display port and 1 × 4-lane MIPI DSI display port
- MIPI CSI-2: 1 × 2-lane MIPI CSI camera port and 1 × 4-lane MIPI CSI camera port
- Single +5V PSU input and operating temperature range from -20°C to +85°C
