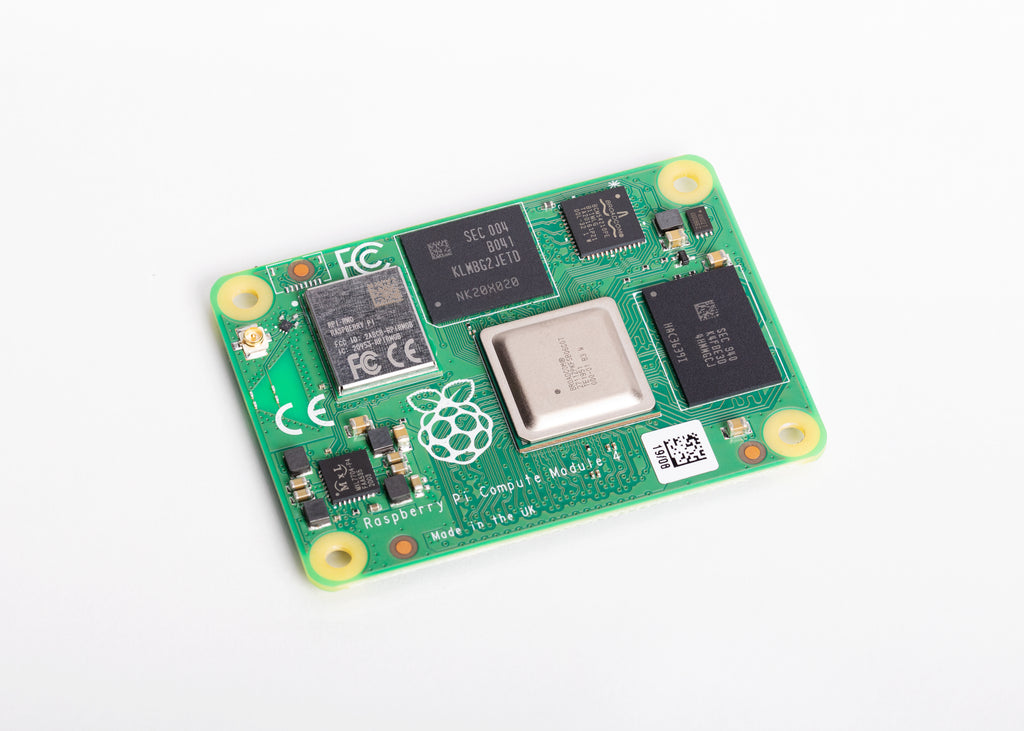

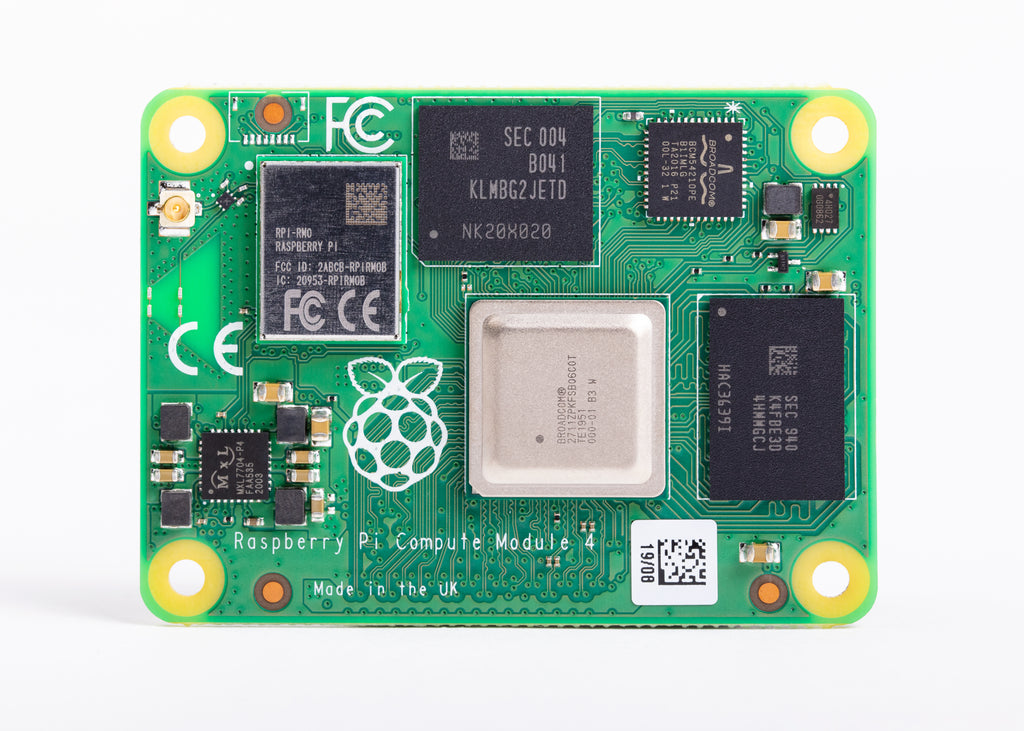

The CM4102016 is a Raspberry Pi Compute Module 4 (CM4) that offers a compact design with essential components such as a processor, memory, and eMMC Flash, as well as power circuitry. This module provides the opportunity for designers to incorporate the Raspberry Pi HW and SW stack into their own custom systems and form factors while also providing additional IO interfaces beyond standard Raspberry Pi boards. Based loosely on the Raspberry Pi 4 Model B, this module is suitable for cost-sensitive applications. Unlike previous Compute Module generations, the CM4 has a unique electrical interface through two 100-pin high density connectors and a smaller physical form factor, thanks to the inclusion of these connectors. It boasts a wireless LAN with both 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac options, as well as Bluetooth 5.0 and BLE, with the option for onboard or external antennas to support connectivity.
- Features 2GB RAM, 16GB eMMC storage and wireless connectivity
- Broadcom BCM2711, quad core Cortex-A72 (ARM v8) 64-bit SoC at 1.5GHz
- H.265 (HEVC) (upto 4Kp60 decode), H.264(upto 1080p60 decode, 1080p30 encode), OpenGL ES 3.0 graphics
- Gigabit Ethernet PHY supporting IEEE 1588, 1 × PCIe 1-lane Host, Gen 2 (5Gbps)
- 1 × USB 2.0 port (high speed) and 2 × HDMI 2.0 ports (up to 4Kp60 supported), 1 × SDIO 2.0 (CM4Lite)
- 28 × GPIO supporting either 1.8V or 3.3V signalling and peripheral options
- 5x UART, 5x I2C, 5X SPI, 1x SDIO interface, 1x DPI (parallel RGB display), 1xPCM, 2×PWM, 3×GPCLK O/P
- MIPI DSI: 1 × 2-lane MIPI DSI display port and 1 × 4-lane MIPI DSI display port
- MIPI CSI-2: 1 × 2-lane MIPI CSI camera port and 1 × 4-lane MIPI CSI camera port
- Single +5V PSU input and operating temperature range from -20°C to +85°C
