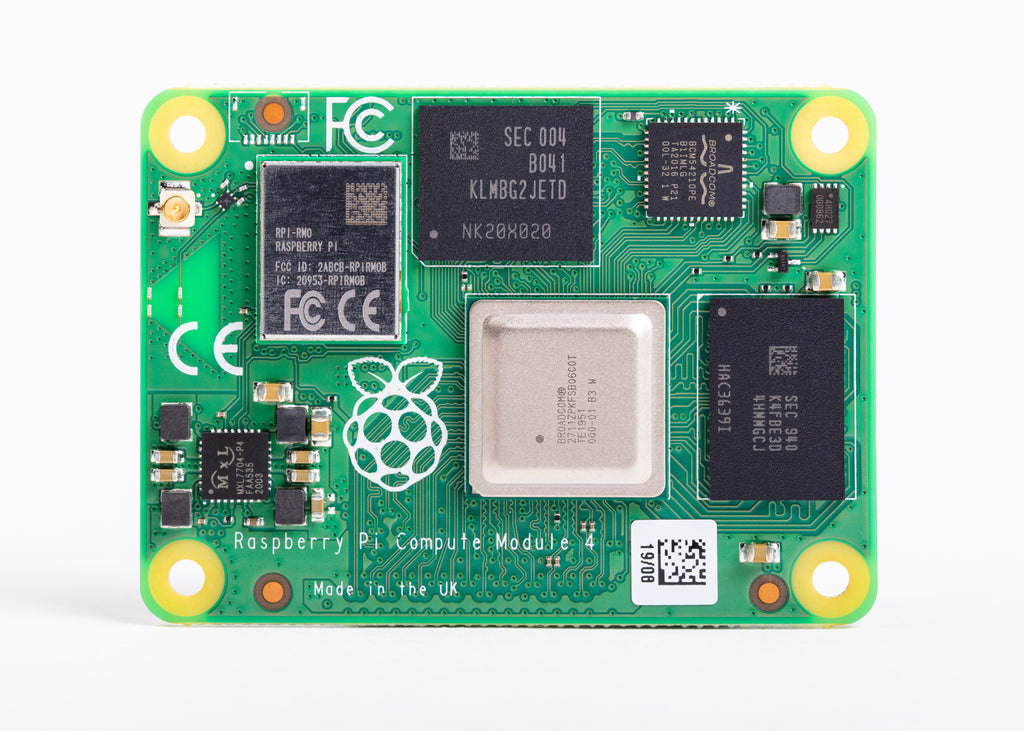

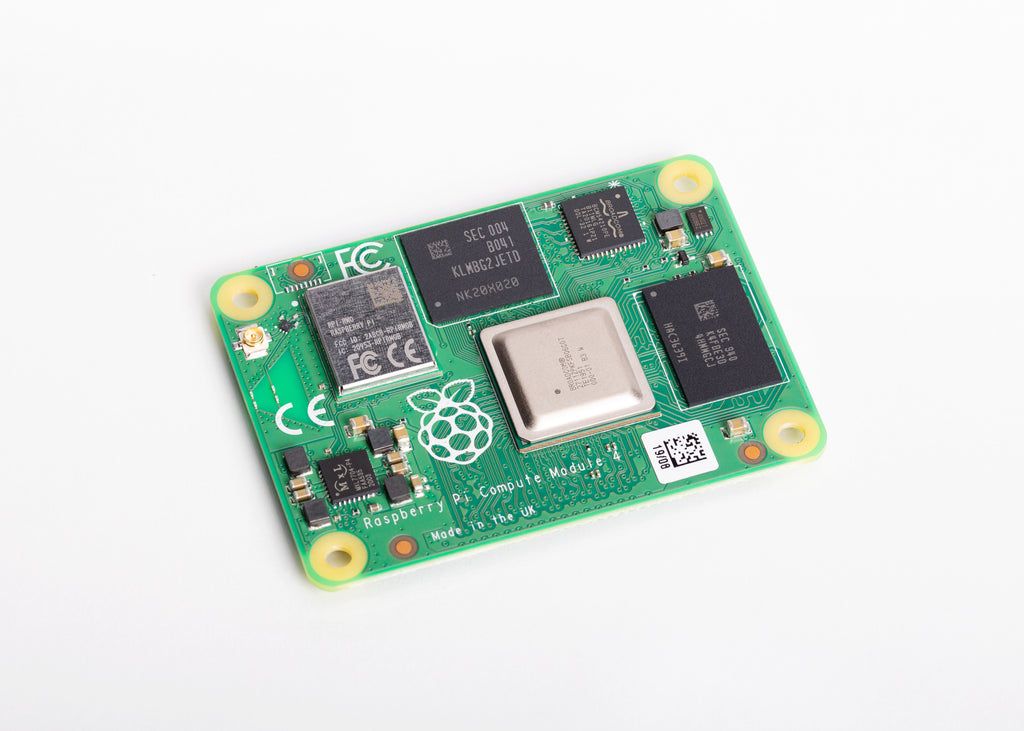

Raspberry Pi Compute Modules 4 (CM4) feature a compact form factor with 55mm x 40mm x 4.7mm dimensions for deeply embedded applications. These System-on Modules (SoMs) contain a processor, memory, eMMC flash, and supporting power circuitry. This configuration includes a quad-core Arm® Cortex®-A72 processor, dual video output, and a wide selection of extra interfaces. The electrical interface is via two 100-pin, high-density connectors. The CM4 series enables users to leverage the Raspberry Pi hardware and software stack in their own designs. Raspberry Pi Compute Modules 4 are offered in 32 variants with a range of RAM and eMMC flash options.
- Form factor: 55 mm × 40 mm
- Processor: Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- Memory: 4GB LPDDR4-3200 SDRAM
- Storage: 0GB eMMC Flash memory (Lite)
- Connectivity:
- Onboard Gigabit Ethernet PHY supporting IEEE1588
- 1 × USB 2.0 interface
- PCIe Gen 2 x1 interface
- 28 GPIO signals
- SD card interface for SD card or external eMMC (for use only with Compute Module 4 variants without eMMC)
- Video:
- Dual HDMI interface (up to 4Kp60 supported)
- 2-lane MIPI DSI display interface
- 2-lane MIPI CSI camera interface
- 4-lane MIPI DSI display interface
- 4-lane MIPI CSI camera interface
- Multimedia: H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
- Input power: 5V DC
- Operating temperature: -20 to +85°C
