- Designed for IoT/eMBB applications, support 5G/4G/3G.
- Full coverage of multi-network standards including 5G and LTE-A.
- Supports 5G non-standalone (NSA) and standalone (SA) modes.
- Multi-constellation GNSS receiver available for applications requiring fast and accurate positioning in any environment.
- Supports multi functions: DFOTA and VoLTE (optional).
- Supports 3GPP Release 16.
- Delivers maximum data rates of 2.4 Gbps downlink and 900 Mbps uplink.
- Form factor: M.2 Type 3052 S2 Key B Card.
- Connect to external antenna through MHF4/IPEX4 connectors.

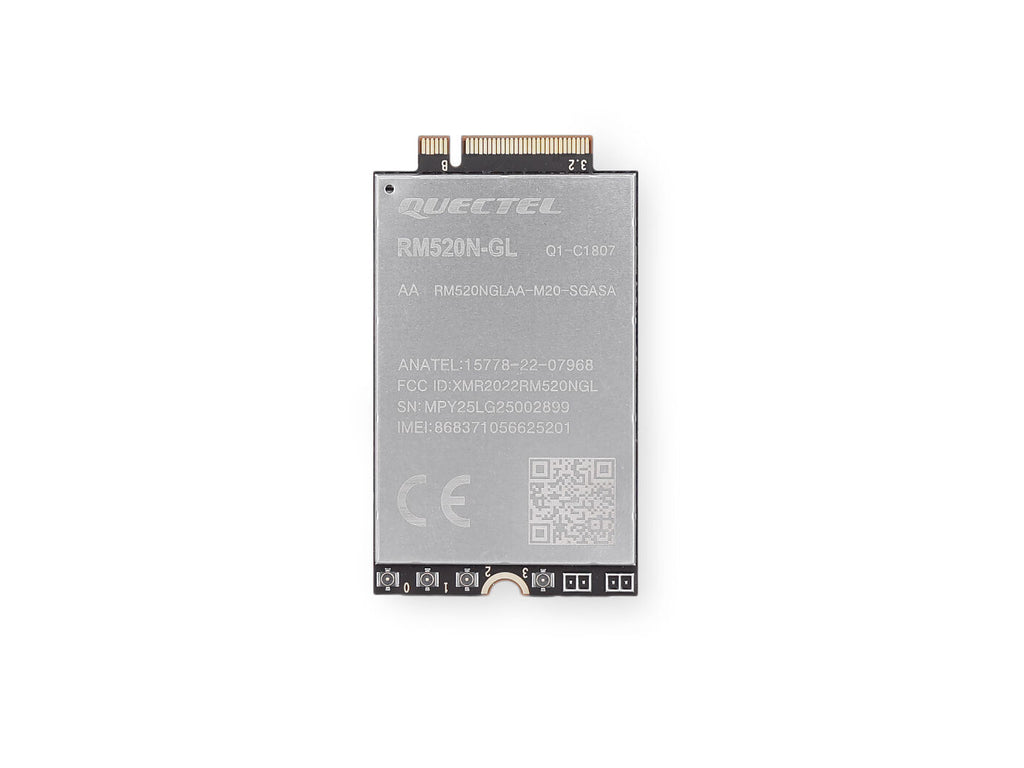

5G Sub-6 | RM520N-GL | |
Region/Operator | Global | |

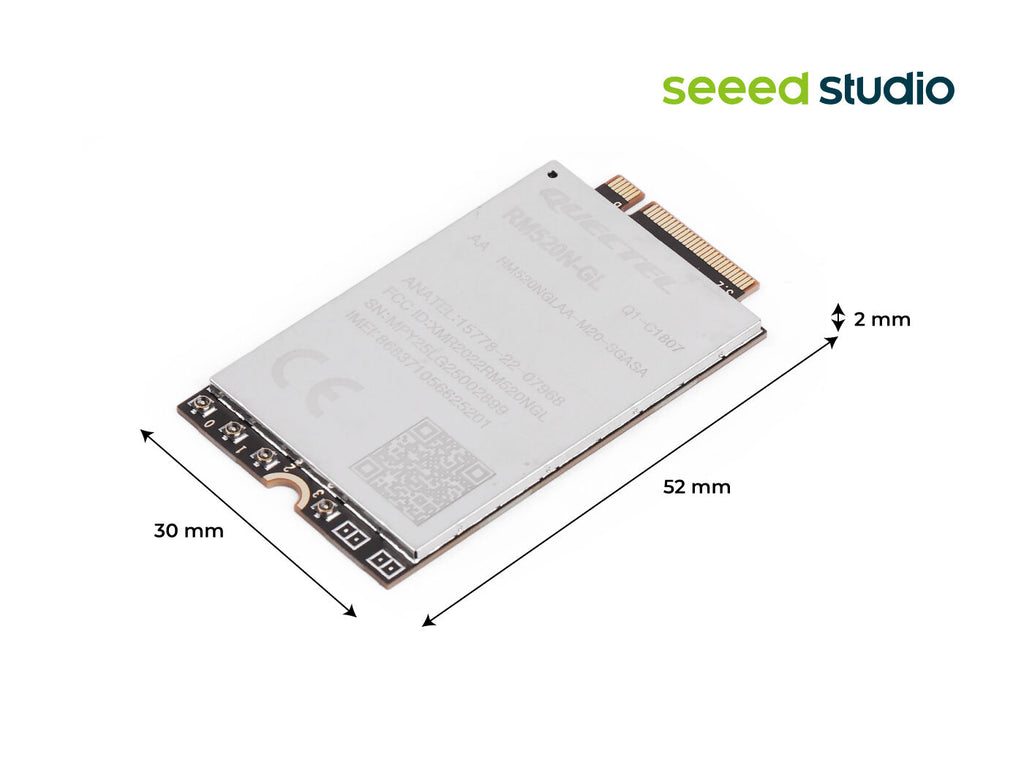

Dimensions (mm) | 30 x 52 x 2.3 mm | |
Weight (g) | 8.7g | |
Supply Voltage Range (V) | 3.135–4.4, Typical 3.7 | |
Temperature Range | ||
Operation Temperature | -30 °C to +75 °C | |
Extended Temperature | -40 °C to +85 °C | |
Frequency Bands | ||
5G NR | NSA | n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 |
SA | n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 | |
LTE | LTE-FDD | B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71 |
LTE-TDD | B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 | |
LAA | B46 | |
UMTS | WCDMA | B1/ 2/ 4/ 5/ 8/ 19 |
GNSS (Optional) | GPS/ GLONASS/ BDS/ Galileo/ QZSS | |
Certifications | ||
Carrier | T-Mobile/ Verizon/ SoftBank/ AT&T/ LG U+/ NTT DOCOMO/ Deutsche Telekom/ Telefónica/ Telstra/ KDDI/ KT | |
Regulatory | SRRC/ NAL/ CCC/ GCF/ CE/ PTCRB/ FCC/ UKCA/ IC/ Anatel/ KC/ NCC/ JATE/ TELEC/ RCM/ ANRT/ CoC/ NTRA | |
Others | RoHS | |
Data Rate (Max.) | ||
5G SA Sub-6 | DL 2.4 Gbps; UL 900 Mbps | |
5G NSA Sub-6 | DL 3.4 Gbps; UL 550 Mbps | |
LTE | DL 1.6 Gbps; UL 200 Mbps | |
WCDMA | DL 42 Mbps; UL 5.76 Mbps | |
Interface | ||
(U)SIM | x2 | |
USB 2.0 | x1 | |
USB 3.0/3.1 | x1 | |
PCIe 3.0 | x1 | |
Antenna (Sub-6/GNSS) | x4 | |
Voice | ||
Voice | VoLTE (Voice over LTE) (Optional) | |
Enhanced Features | ||
eSIM | No | |
DTMF* | Yes | |
DFOTA | Yes | |
(U)SIM Card Detection | Yes | |
Supported Devices
- reComputer Industrial J30/J40
- reServer Industrial J30/J40
- reComputer Robotics J30/J40
- reComputer Robotics J50
- RM520N-GL has four antenna connectors: ANT0, ANT1, ANT2, and ANT3.
- RM520N features standard 2 mm × 2 mm RF connectors. Connect to external antenna through MHF4/IPEX4 connectors.
- Manual insertion of coaxial cable plug, θ must be 90°.
- Premoval of coaxial cable plug, θ must be 90°.
- Edge AI Box & FWA Gateways: Supports Linux、Android and Windows. Designed in a standard M.2 form factor, it is widely adopted in Edge AI boxes to provide high-speed 5G backhaul for real-time edge computing and video streaming applications.
- Robotics & Embodied AI: Provides the ultra-reliable, low-latency 5G cellular communication essential for a logistics AGV, AMR, or industrial inspection robot. It enables seamless remote control, precise cloud-based coordination, and continuous operational uptime for the entire multi-site facility.
- Industrial IoT: Ideal for harsh industrial environments(-40 °C ~ +85 °C) requiring mission-critical wireless connectivity. It leverages 5G Sub-6GHz technology for high-capacity sensor data aggregation and predictive maintenance transmission, while wide-temperature support ensures 24/7 reliability in factories and fields.
- Consumer Electronics: Frequently used to upgrade legacy 4G LTE systems to advanced 5G networks. It significantly boosts the data throughput of smart grids, urban surveillance, and remote medical terminals, ensuring high-bandwidth, multi-channel connectivity even in densely populated areas.
- Mobile Patrol: Featuring the integrated Qualcomm Gen9C Lite positioning chip, the module supports GPS, GLONASS, BDS and Galileo. It is highly suited for mobile robots or in-vehicle applications that demand a seamless, all-in-one network and location tracking solution.
Quectel RM520N-GL 5G Module | x1 |
| HSCODE | 8517799000 |
| USHSCODE | 8517690000 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
