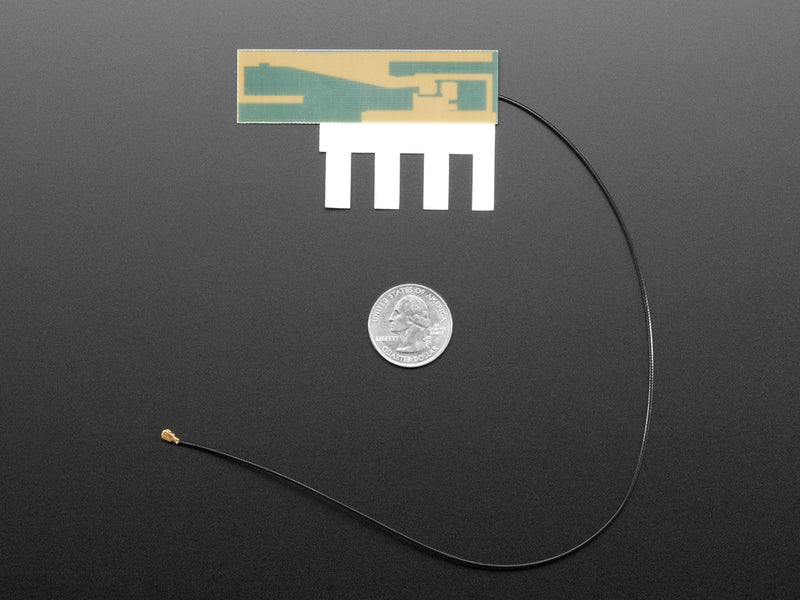

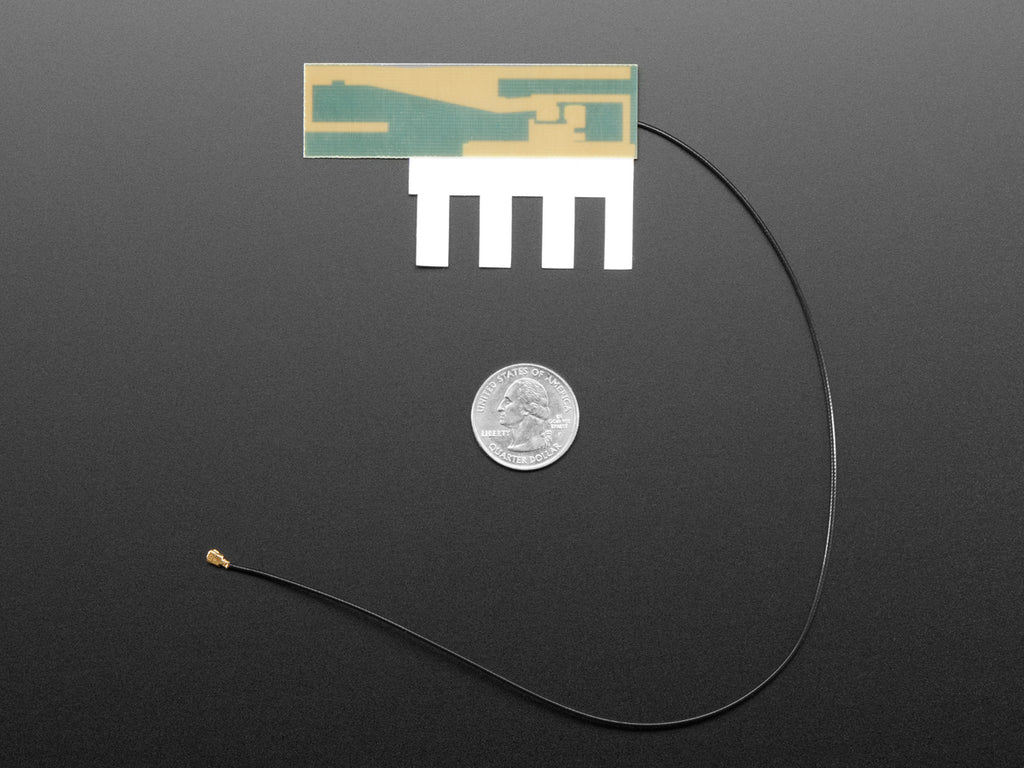

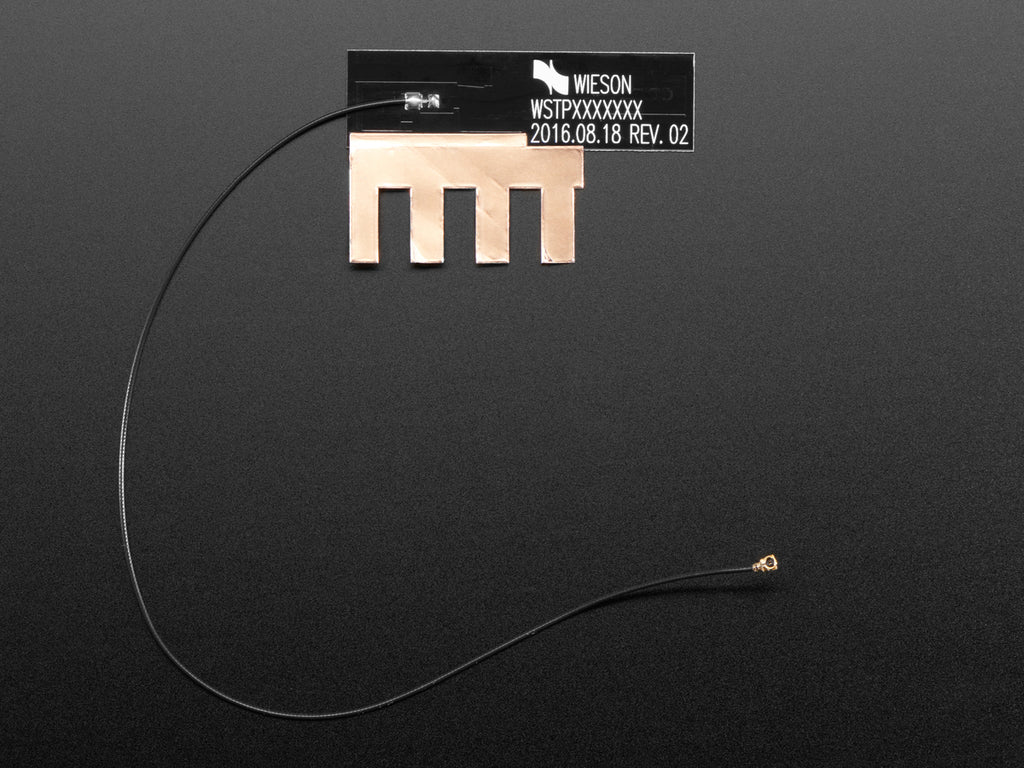

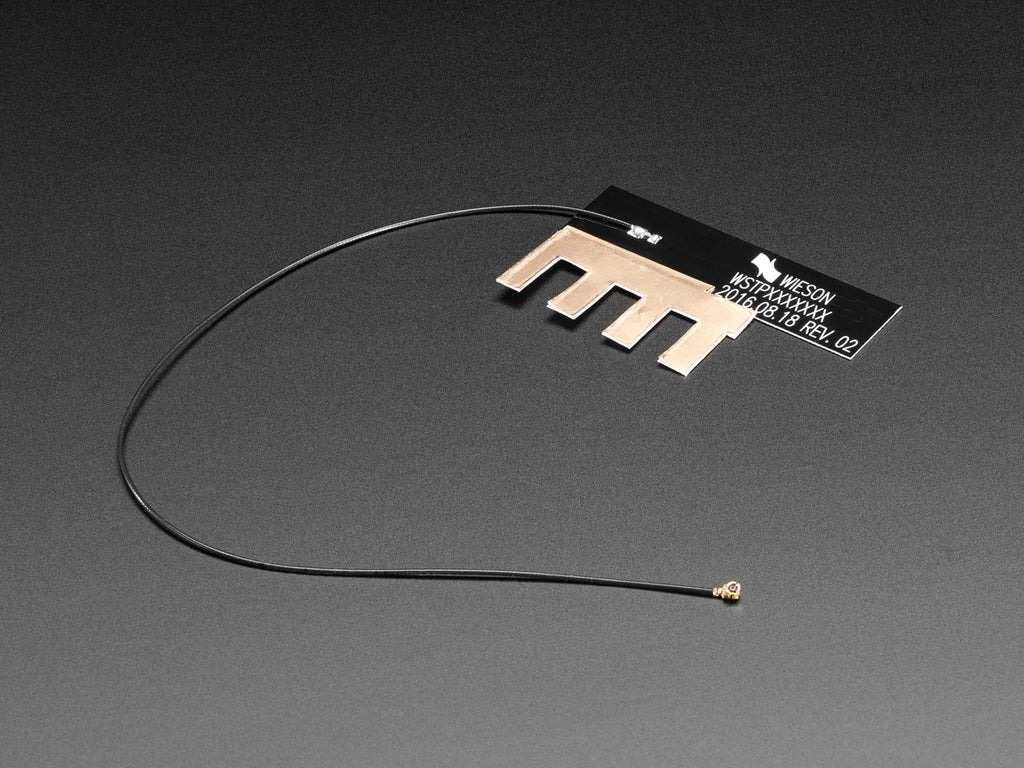

Pycom LTE-M Cellular Antenna

Price:
Sale price A$30.04   Inc. GST
SKU:
ADA3623
6 units Ships in 24 hours

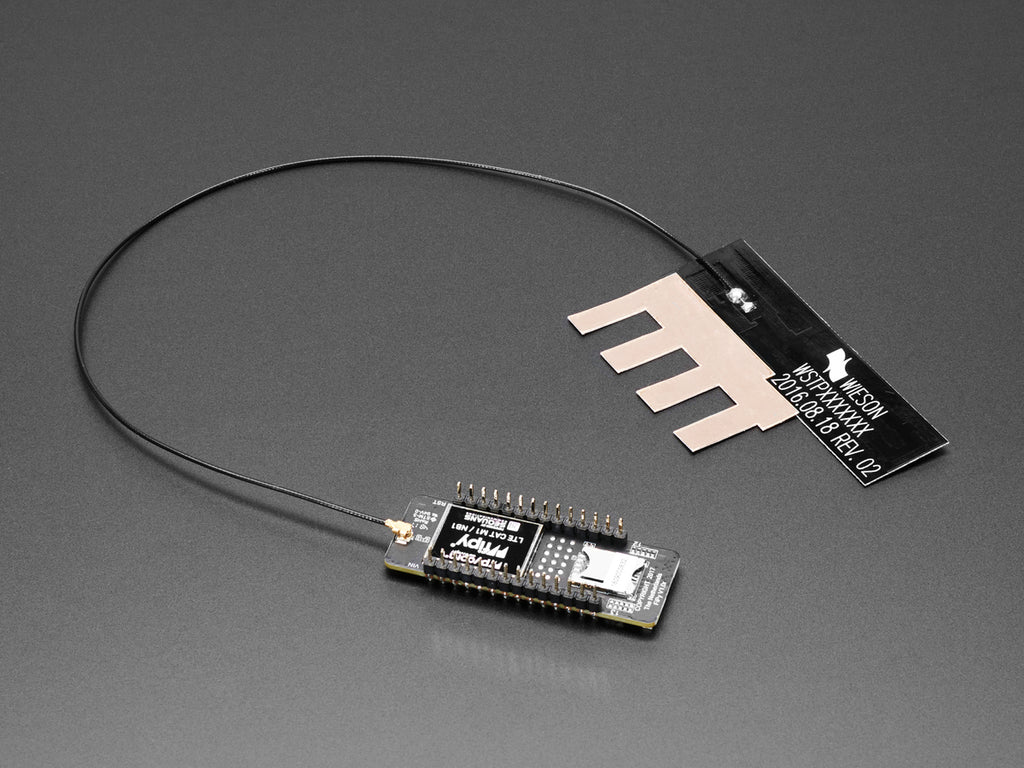

This antenna is a perfect addition to your cellular project with LTE connectivity. It's specifically intended for use with the Pycom LTE-powered kits but it's just a passive antenna so you can pair it with any dev board you like, as long as it has a uFL connector.

Comes with a flexible copper grounding sticker, you can use to provide a nice big ground plane!



Technical Details

Dimensions

  • 7.5 x 2.1 cm

Weight

  • .04 kg

Specifications

  • LTE band 28/38*2
  • Frequency: 703~803/2520~2620(MHz)
  • Antenna size: 75 x 21 (mm)
  • PCB 0.6 mm

Low bands

  • (5, 8, 12, 13, 18, 19, 20, 28)
  • Tx frequencies 699 to 915 MHz
  • Rx frequencies 729 to 960 MHz

Mid bands

  • (1, 2, 3, 4)
  • Tx frequencies 1710 to 1980MHz
  • Rx frequencies 1805 to 2170 MHz



For product support you can contact Pycom here.

    RoHS 2 2011 65 EU Compliant
