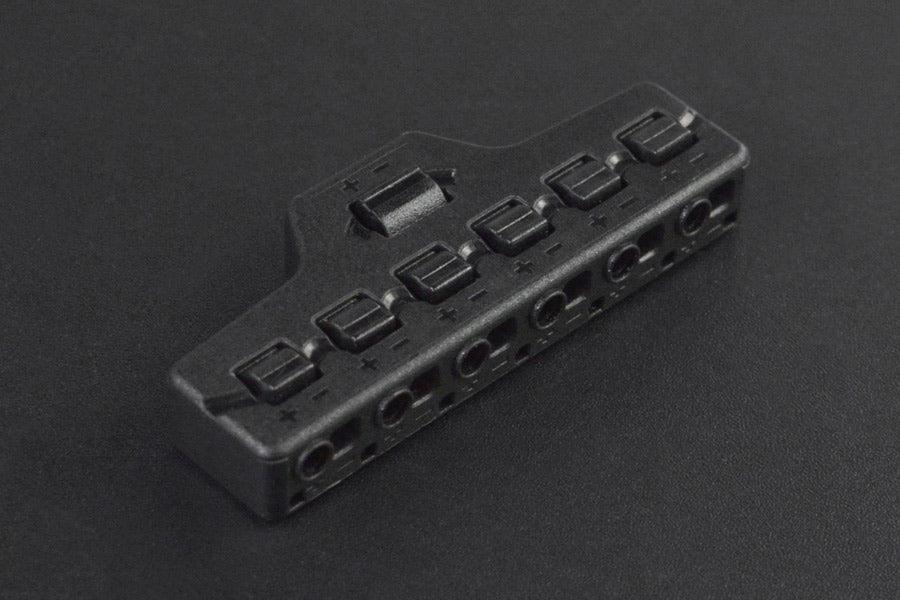

Push-in Wire Connector (1 Input to 6 Outputs)

Sale price A$7.04   Inc. GST
63 units Ships in 7 to 10 days

This push-in 1-in 6-out wire connector can easily turn one input connection into 6 output connections. It features firm wiring, recyclability, flame retardant, and fire resistance. The conductive spring clamp inside the connector is made of nickel-coated steel, which is anti-corrosion, tight, not easy to loosen or fall off.

Push-in Wire Connector (1 Input to 6 Outputs)



  • Push-in connection, convenient to use
  • With CE certification
  • Applications:

  • Power Supply Tool
  • Specification:

    Electrical Parameters

  • Rated Voltage: 0-42V DC
  • Rated Current
  •             Input: 9A
                Output: 1.5A
  • Operating Temperature: 0-40°C

  • Connector Parameters

  • Input
                Solid/stranded conductor: 0.34-0.75mm²
                Tinned flexible conductor: 0.34-0.75mm²
                Flexible conductor with copper sleeve: 0.5-0.75 mm²
  • Output
                Solid/stranded conductor: 0.2-0.5mm²
                Tinned flexible conductor: 0.2-0.5mm²
                Flexible conductor with copper sleeve: 0.5mm²
  • Wiring Method: Push-in

  • Material Specifications

  • Insulation Material: Polyamide 66
  • Insulation Fire-proof level: UL 94V-2
  • Clamps: Copper and stainless steel
  • Size: 58*24*9.3mm/ 22.83*9.45*3.66 inch
  • Documents:

  • TL CE Test Verification
  • RoHS
  • Product Includes:

  • Push-in Wire Connector (1 Input to 6 Outputs) x1
