Proto-Screwshield (Wingshield) R3 Kit for Arduino

Price:
Sale price A$30.07   Inc. GST
SKU:
ADA196
2 units Ships in 24 hours
50 units Ships in 7 to 10 days

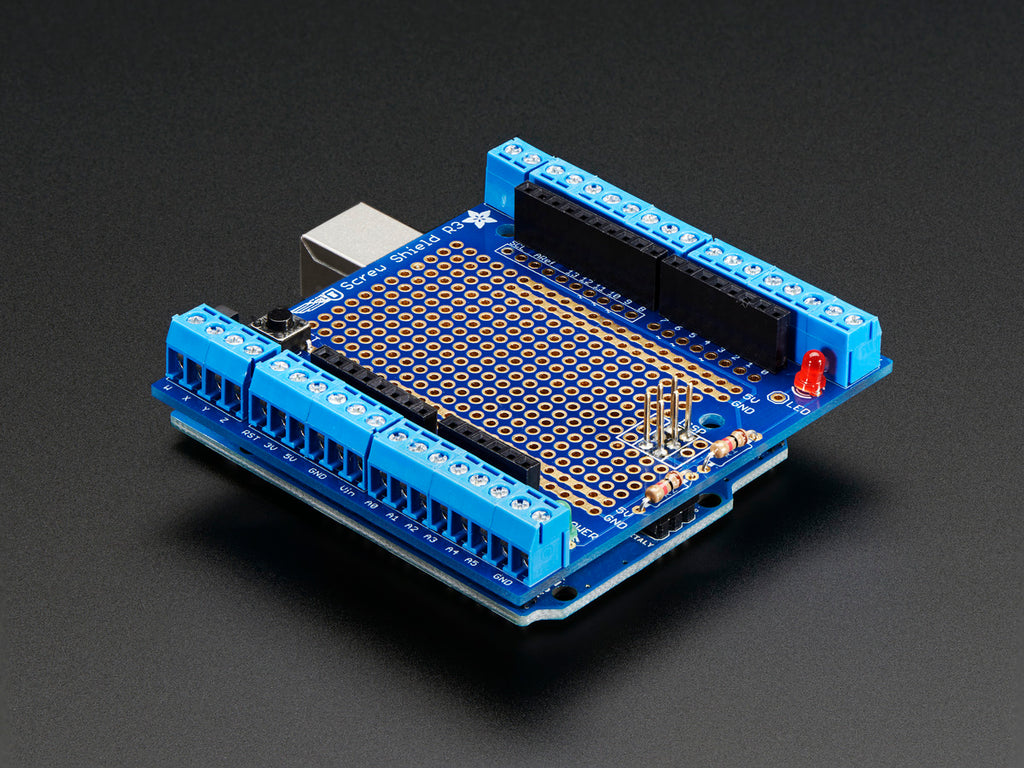

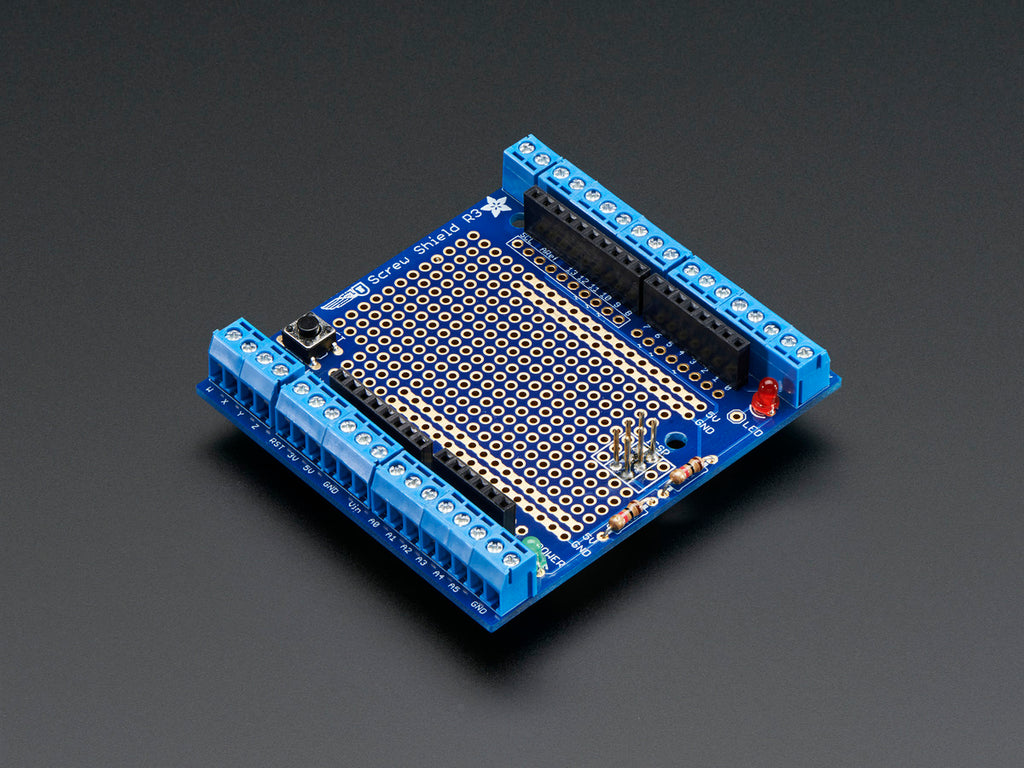

The next generation Proto-ScrewShield is a dual-purpose prototyping shield. Not only does it have a large 0.1" grid prototyping area but it also extends the Arduino pins to sturdy, secure, and dependable screw terminal blocks. You even get a few bonus terminals for extra GND and four 'free' terminals for whatever connections you wish! New! As of June 23, 2014 we now have an R3 update to this design - we now have a stacking header for the ICSP 2x3 pins and breakout the SCL and SDA pins. It now works much better with R3 UNO's, Mega, Leonardo, as well as stacking nicely with any shield.

The stack-able wing design allows you slip this under any shield and still get easy access to the "analog" & "digital" ports of the Arduino. The ScrewShield can be stacked above or below pretty much every other shield.

  • 1 large high-quality PCB, specifically chosen for its excellent resistance to lots of soldering and desoldering (essential for prototyping boards)
  • Plenty of prototyping space, with power/ground rails
  • Diffused green power LED, extra diffused red LED for user choice (although we suggest to connect it to pin 13)
  • Reset button
  • Full set of stacking female header pins
  • Lots of 3.5mm terminal blocks to fill 36 breakouts on the board

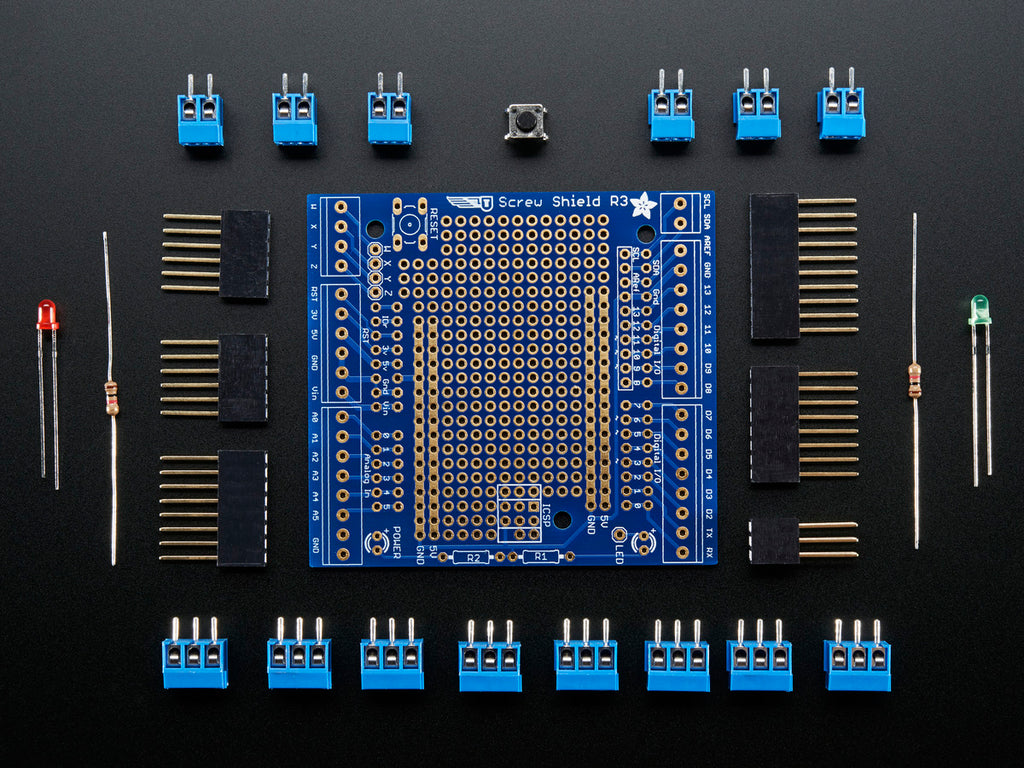

Comes as a kit of all through-hole parts. You'll need to assemble the kit using a soldering iron, diagonal cutters and solder but its an easy kit and should take less than half an hour. Check out our tutorial guide for all you need to know to make this kit! (If you have the old 'wings' version, check out this page.)

Note: The terminal blocks included with your product may be blue or black.






Technical Details

EagleCAD PCB files and fritzing available in the product tutorial

Details:

  • Dimensions: 67mm x 73mm x 1.6mm (2.6in x 2.9in x 0.06in)
  • Weight: 35g(1.25oz)

Revision History:

  • Prior to June 23, 2014 we had an original non-ArduinoR3/Leonardo Screwshield. Since we wanted to add R3/Leonardo/stacking support, the new version repalces two of the GND pins with SCL and SDA so Leonardo users can use I2C. We also include a 2x3 stacking header so that SPI-shields can be stacked!

    RoHS 2 2011 65 EU Compliant
    RoHS 2 2015 863 EU Compliant
