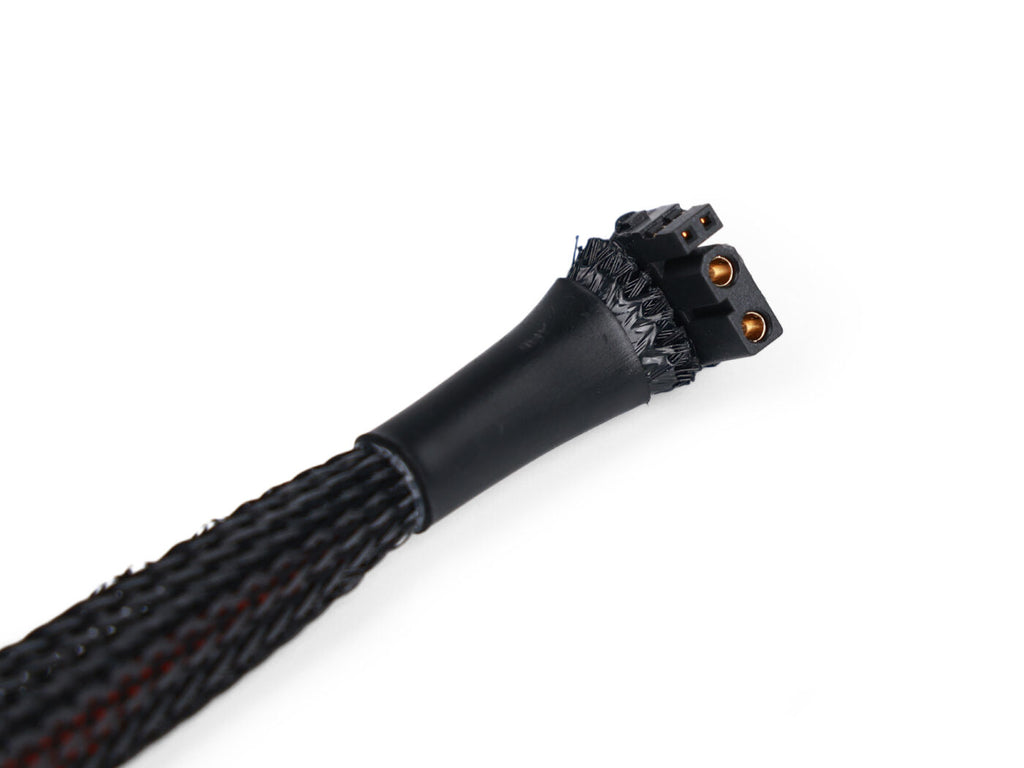

- Premium Connectors: Utilizes XT30 (2+2) connectors with gold-plated terminals to ensure reliable and stable power and signal transmission.
- Durable Protection: The wire body is wrapped in a Φ10.0*370mm black braided mesh and Φ9.5*35mm black dual-wall tubing, reinforced with 704B black silicone at the joints.
- Extreme Temperature Resistance: Built for harsh environments, supporting a wide operating temperature range from -60°C to +150°C.
- Secure Connection: The terminals are strictly assembled according to the diagram with a pull force greater than 10N, preventing accidental disconnection.
Item | Specification |
Product | BCCA4012-200MM Cable |

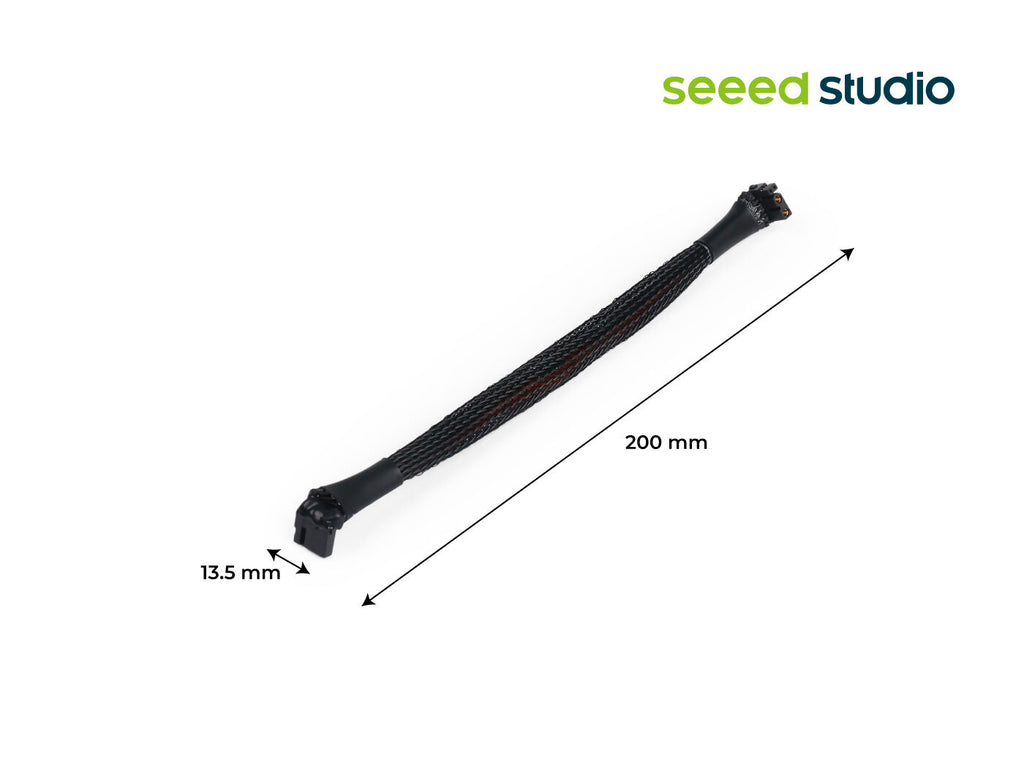

Total Length | 200 ± 15mm |
Connector | XT30 (2+2)-F (2PCS) |
Terminals | XT30 (2+2) Gold-plated (4PCS) |
Power Wire | 3239 16AWG (50/0.175TS) Red/Black |
Signal Wire | 3239 26AWG (7/0.155TS) Red/Black |
Operating Temperature | -60°C to +150°C |
Terminal Pull Force | > 10N |
Sleeving | Φ10.0mm Black braided mesh, Φ9.5mm dual-wall tube |
Packaging | 1 pc / PE bag |
| BCCA4012-200MM XT30(2+2) Cable | x1 |
| HSCODE | 8544421900 |
| USHSCODE | 8544421000 |
| UPC | |
| EUHSCODE | 8544492000 |
| COO | CHINA |
