- High Efficiency Design — Typical efficiency up to 88% (24V model) with no-load power consumption <0.75W.
- Wide Range Input — Selectable input voltage (90–132VAC / 180–264VAC) via switch; withstands 300VAC surge for up to 5 seconds.
- Comprehensive Protections — Short Circuit, Overload (110–140% Hiccup mode, auto-recovery), Over Voltage (28.8–33.6V), and Over Temperature Protection.
- Smart Cooling System — Built-in intelligent temperature-controlled fan; activates at ≥50°C and stops at ≤40°C to extend lifespan.
- Extreme Environment Ready — Operates reliably from -25°C to +70°C (full load) and up to 5000m altitude.
- Low Noise Output — Ripple & Noise ≤ 150mVp-p (measured at 20MHz bandwidth).
- Global Safety Certified — Complies with IEC/UL 62368-1, CCC (GB4943.1), BSMI, and EAC TP TC 004 standards.
- Superior Reliability — MTBF ≥ 2,099,900 hours (calculated per Telcordia SR-332).
- Anti-Vibration Design — Withstands 5G vibration (10–500Hz) for 60 minutes in each axis (X, Y, Z).
| Item | Specification |
| Model Number | Power Adapter Kit for reBot Arm B601-DM |

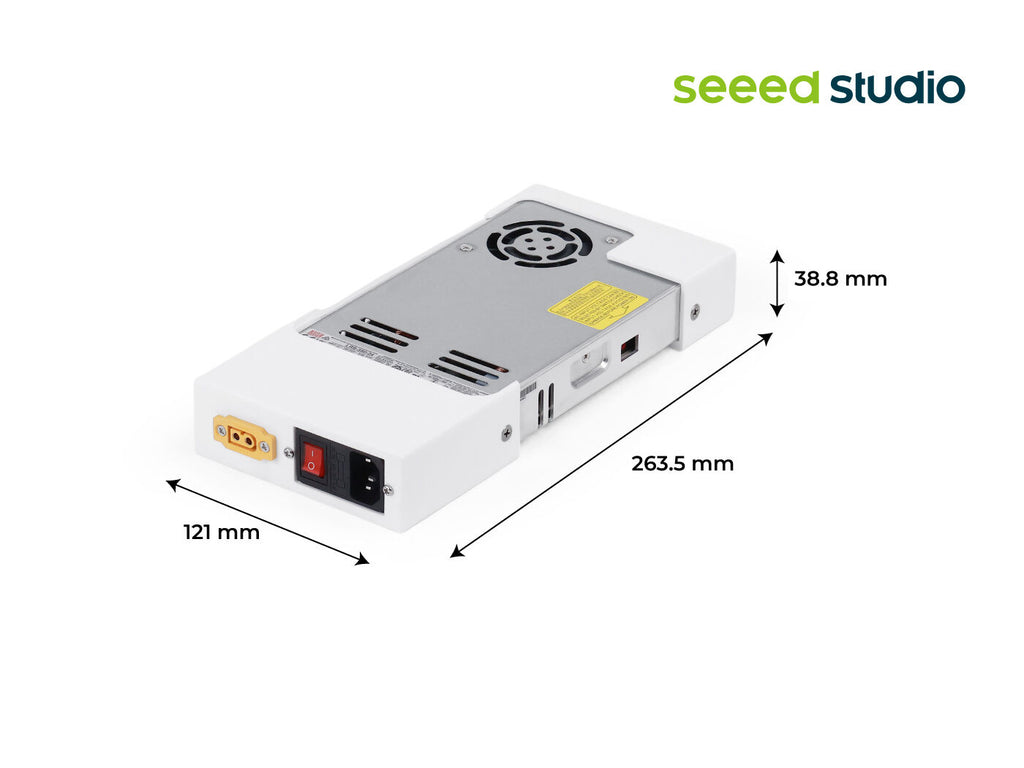

| Dimensions (L×W×H) | 263.5 × 121 × 38.8mm（L×W×H） |
| Net Weight | Approx. 0.76 kg |
| Input Voltage Range | 90–132VAC / 180–264VAC (Selectable via Switch) |
| Frequency Range | 47 – 63 Hz |
| AC Input Current | 3.4A Max. @ 230VAC (Typical) |
| Inrush Current | 60A @ 230VAC (Cold Start, Typical) |
| Efficiency (Typ.) | 88% |
| DC Output Voltage | DC 24V |
| Rated Output Current | 14.6A |
| Rated Output Power | 350.4W |
| Ripple & Noise | ≤ 150mVp-p |
| Protections | OLP / OVP / OTP / SCP |
| Operating Temp. | -25°C ~ +70°C |
| Operating Humidity | 20% ~ 90% RH (Non-condensing) |
| Storage Temperature | -40°C ~ +85°C |
| Storage Humidity | 10% ~ 95% RH |
| Safety Certificates | IEC/UL 62368-1, CCC (GB4943.1), BSMI CNS15598-1, EAC TP TC 004, EN 61558-1, EN 61558-2-16, BIS IS13252(Part1), KC 62368-1 (for 12V/24V Models) |

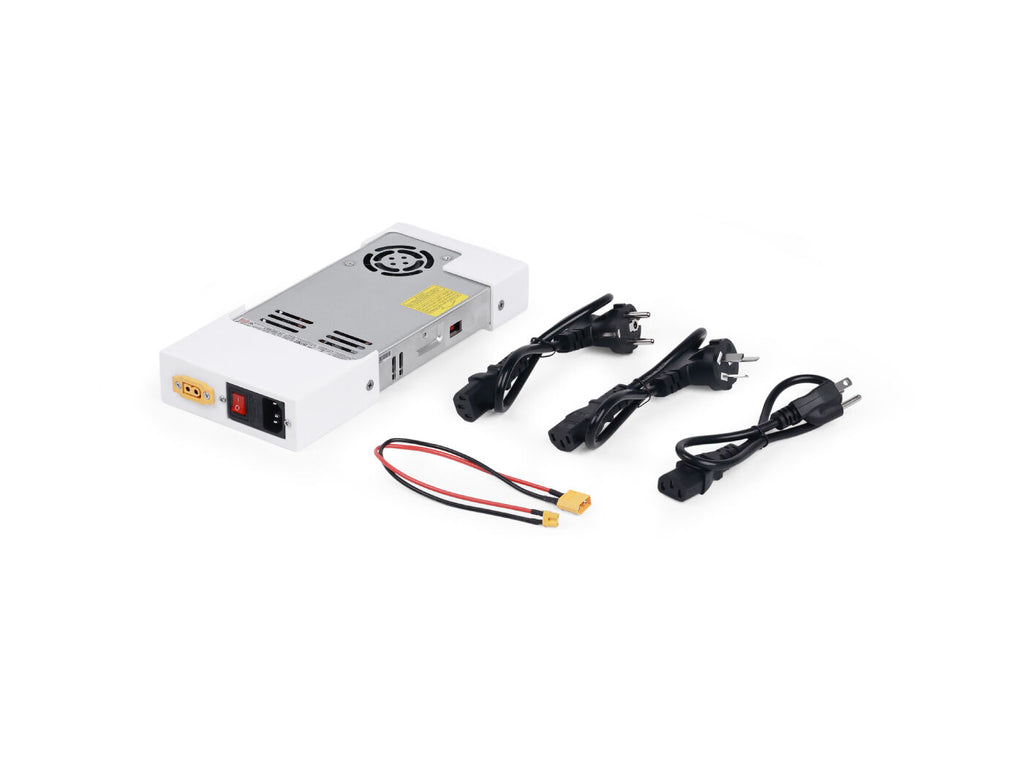

| Power Adapter Kit for reBot Arm B601-DM | x1 |
| CN Plug/Cord | x1 |
| US Plug/Cord | x1 |
| EU Plug/Cord | x1 |
| XT30U Female to XT60 Male Cable | x1 |
| HSCODE | 8504401400 |
| USHSCODE | 8504409510 |
| UPC | |
| EUHSCODE | 8504400000 |
| COO |
