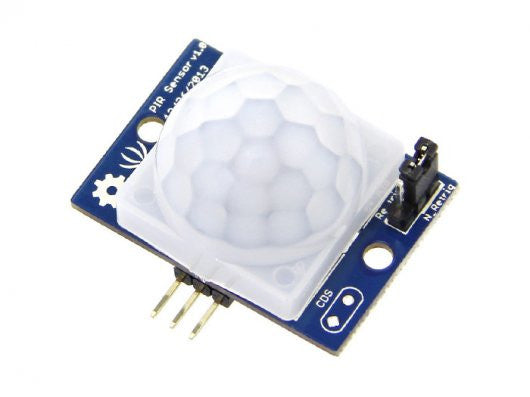

PIR Motion Sensor - Large Lens version

$13.42 AUD Inc. GST


SKU SS101020060
Ships in 24 hours 1 units

increment
decrement
decrement increment

PIR(Passive Infrared Detection)are used to detect motion of human movement. This version has a large lens which can support long range and wide angle. 2.54mm standard connector is easy to fix it anywhere.
Features:
  • Long range
  • Wide angle
  • Low consumption
  • DC 3.0-5.5V power supplier
Specifications
  • Input Voltage: DC3.0-5.5V
  • Current: 100uA(max)
  • Output signal: 0,VCC (Output high when motion detected)
  • Sentry Angle: 120°
  • Connector:3Pin 2.54mm pitch
  • Size: L36*W26*H21(mm)
Documents
Please visit wiki page for more info about this product.
