Description

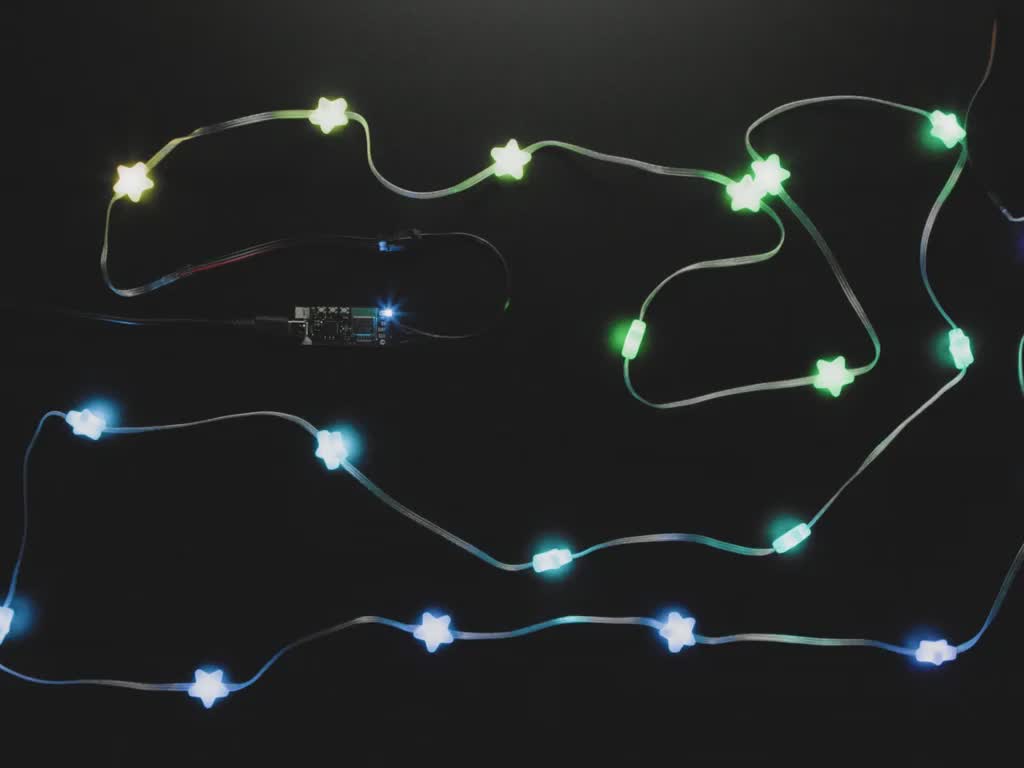

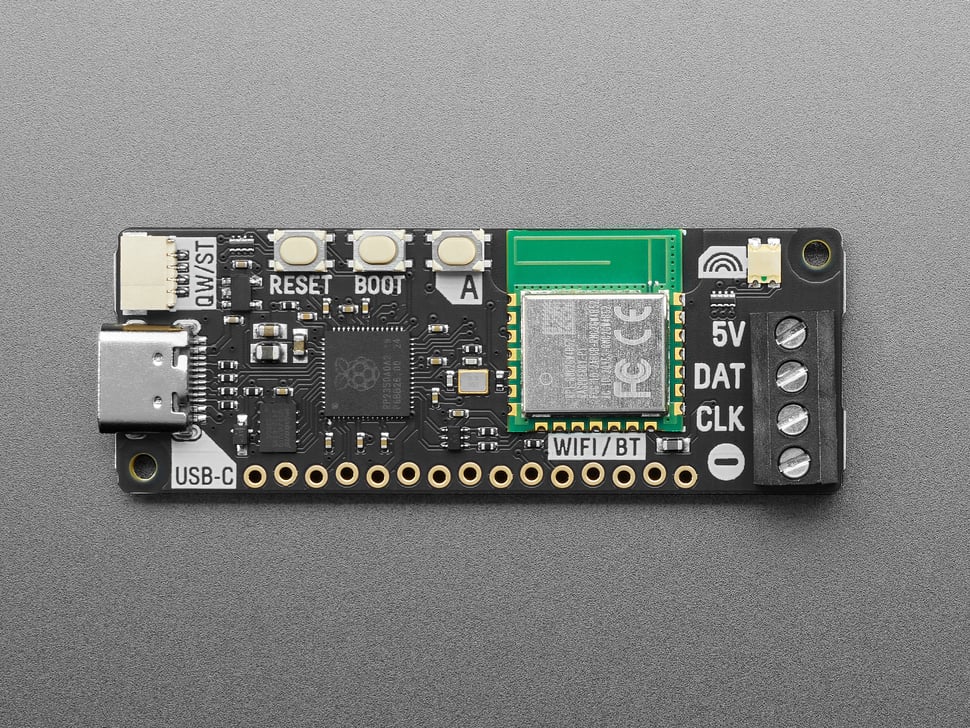

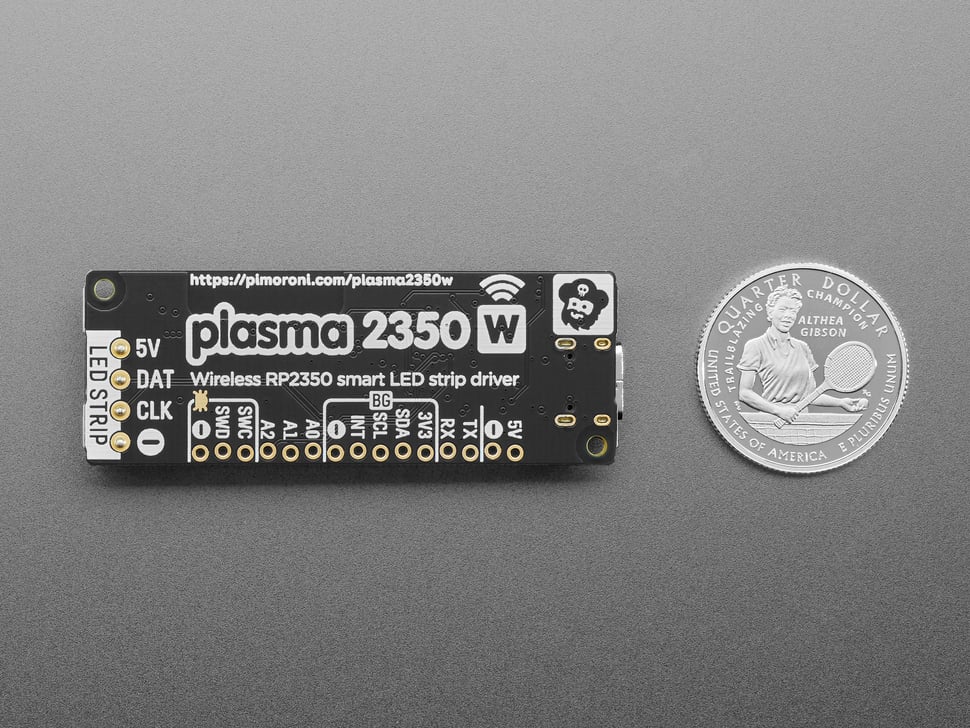

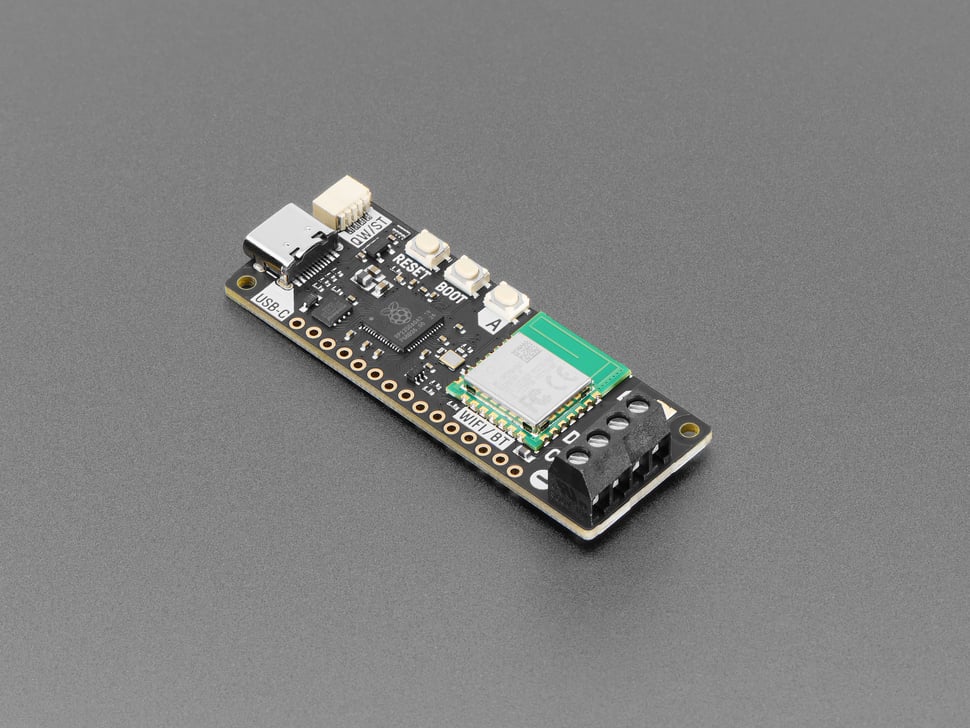

The Pimoroni Plasma 2350 W is an all-in-one, USB-C powered controller for WS2812 (a.k.a NeoPixel) and APA102 (a.k.a DotStar) addressable LED strips. Now with added wireless connectivity! It's got the beefy power of an RP2350-based Pico 2, with the same module that is on the 2W for Bluetooth & WiFi support.
Plasma 2350 W is powered and programmable by USB-C, and because USB-C is capable of drawing up to 3A of power, that's enough to power a healthy chunk of LEDs. There's a useful button that you could use to switch between effects, plus a reset button and an onboard RGB LED. Pimoroni also popped a QW/ST connector on there to make it super easy to plug in I2C-based Qwiic or STEMMA QT breakouts.
This version comes equipped with a Raspberry Pi RM2 module, which gives it 2.4 GHz wireless and Bluetooth connectivity. Use it to control Plasma 2350 W remotely, hook it up to online APIs, or integrate it with your home automation.
Features:
- Powered by RP2350A (Dual Arm Cortex M33 running at up to 150MHz with 520KB of SRAM)
- 4MB of QSPI flash supporting XiP
- Compatible with 5V WS2812/Neopixel/SK6812 and APA102/Dotstar/SK9822 LEDs

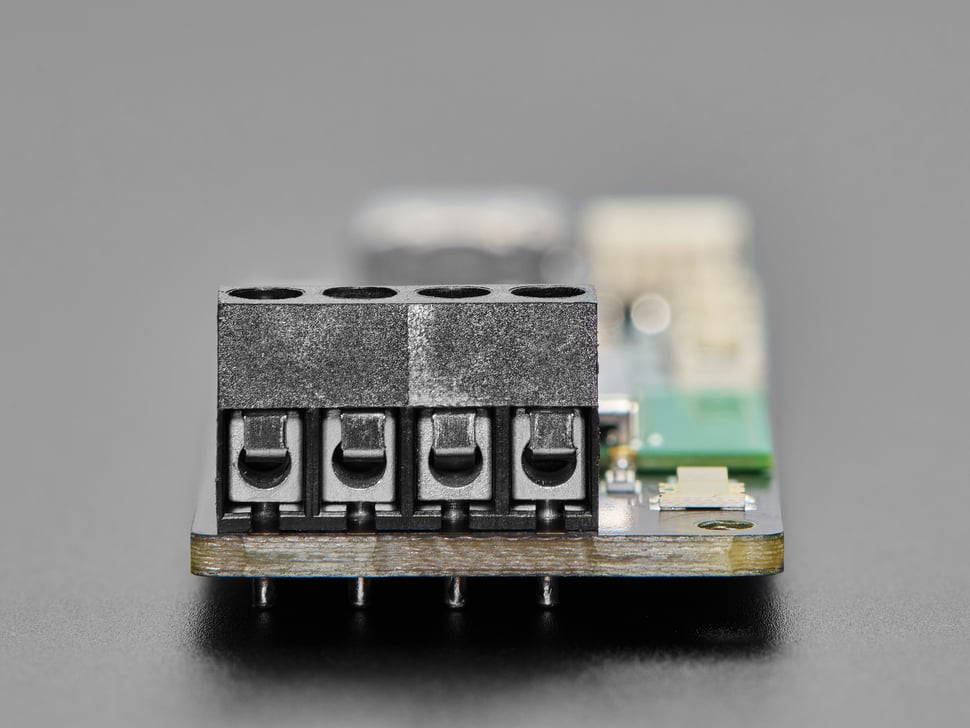

- Screw terminals for attaching your LED strip.

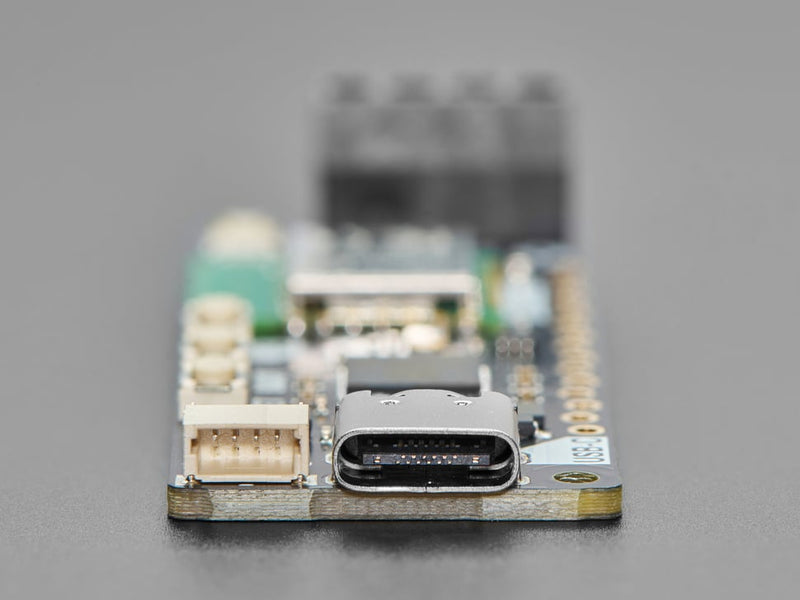

- USB-C connector for power and programming (5V 3A max)
- Raspberry Pi RM2 module (CYW43439), supporting IEEE 802.11 b/g/n wireless LAN, and Bluetooth
- Qw/ST (Qwiic/STEMMA QT) connector
- Reset, BOOT, and a user button (the BOOT button can also be used as a user button)
- RGB LED
- Fully assembled (no soldering required)
- Measurements: approx 61 x 22 x 12mm (L x W x H, including connectors)
- Programmable with C/C++ or MicroPython
