Description
Pimoroni's Inky Impression E Ink® displays are super crisp, low power, and look great from a variety of viewing angles. They have high pixel density and bright, vivid colors, perfect for showing off gorgeous dithered images (they've put a lot of effort into their dithering code and hope you love it).
They also include:
- The appropriate hardware to attach to your Raspberry Pi computer and fix it securely in place. If your Pi has a 40 pin header attached, you won't need to do any soldering.
- Four rear mounted buttons, for interacting with the screen.
- Qwiic/Stemma QT connectors, so you can easily connect up breakouts and other I2C devices.
Please note: This must plug this display into a Raspberry Pi computer with 2x20 header (Pi Zero, 2, 3, 4, 5 etc) in order to drive / change it, and the Pi is not included!
Features
- 4.0" (600 x 400), 7.3” (800 x 480 pixel) or 13.3” (1600 x 1200 pixel) ePaper display
- E Ink Spectra 6® technology
- Ultra wide viewing angles
- Ultra low power consumption
- Four rear mounted buttons*
- M2 mounting holes at the corners
- 40-pin extension header included to boost height for full-size Raspberry Pi.
- Standoffs included to securely attach to your Pi
- Qw/ST (Qwiic/STEMMA QT) connectors for adding breakouts
- Expansion header for adding other hardware
- Compatible with all 40-pin header Raspberry Pi computers, including Zero variants.
- Python library
- Comes fully assembled, with no soldering required (as long as your Pi has a 40-pin header attached).

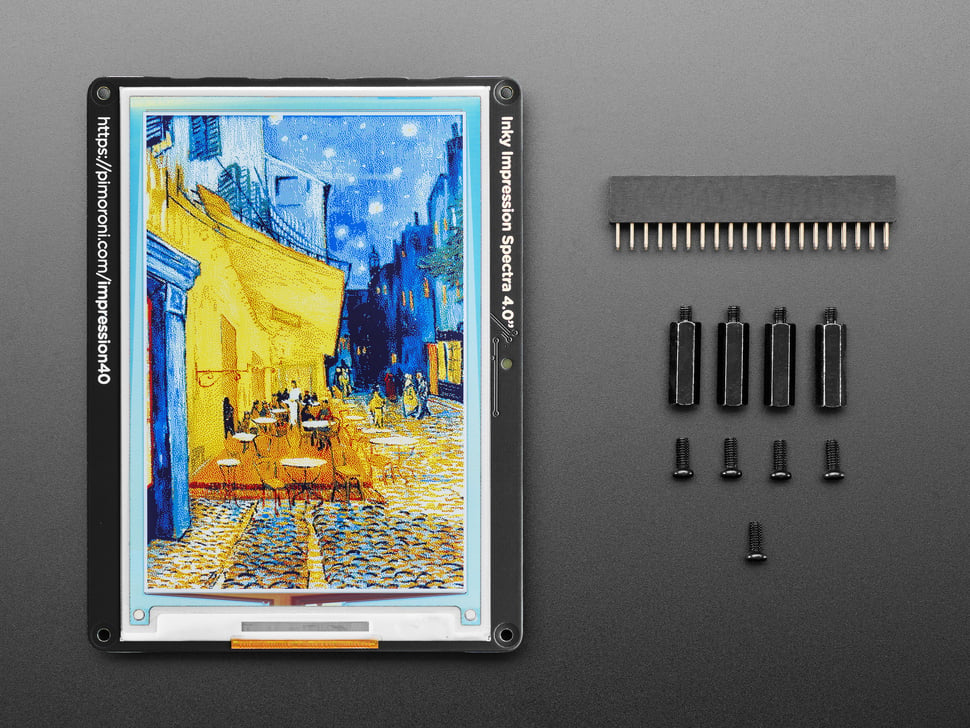

The display is securely stuck down to the Inky Impression PCB and connected via a ribbon cable, and it comes with mounting hardware to attach your Raspberry Pi securely in place. Just pop Inky Impression on your Pi and run our installer to get everything set up!
Technical Details
Specifications:
- Product Name | Inky Impression - 4.0” (Spectra 6 Edition)
- SKU | PIM789
- Resolution | 600 x 400 pixels
- Technology | E Ink Spectra 6®
- Colours | 6 (red, green, blue, yellow, black, white)
- Dot Pitch (mm) | 0.141 x 0.141 | 0.20 x 0.20 | 0.169 x 0.169
- Aspect Ratio | 3:2
- Pixels Per Inch (PPI) | 180
- Board Dimensions (mm) | 103.4 x 78 (W x H)
- Usable Area Dimensions (mm) | 84.6 x 56.4 (W x H)
- Refresh Time | ~12 seconds**
- Recommended Temperature | 0 ~ 50°C
- Schematic | Link
- Dimensional Drawing | Link
Details:
- Ultra wide viewing angles
- Ultra low power consumption
- Four rear mounted buttons*
- M2 mounting holes at the corners
- 40-pin extension header included to boost height for full-size Raspberry Pi.
- Standoffs included to securely attach to your Pi
- Qw/ST (Qwiic/STEMMA QT) connectors for adding breakouts
- Expansion header for adding other hardware
- Compatible with all 40-pin header Raspberry Pi computers, including Zero variants.
- Python library
- Comes fully assembled, with no soldering required (as long as your Pi has a 40-pin header attached).
The display is securely stuck down to the Inky Impression PCB and connected via a ribbon cable, and it comes with mounting hardware to attach your Raspberry Pi securely in place. Just pop Inky Impression on your Pi and run our installer to get everything set up!
For product support, replacement parts and warranty for Pimoroni products visit the Pimoroni forum or contact Pimoroni directly.
