Pimoroni Display-O-Tron HAT

Price:
Sale price A$63.25   Inc. GST
SKU:
ADA2694
2 units Ships in 24 hours

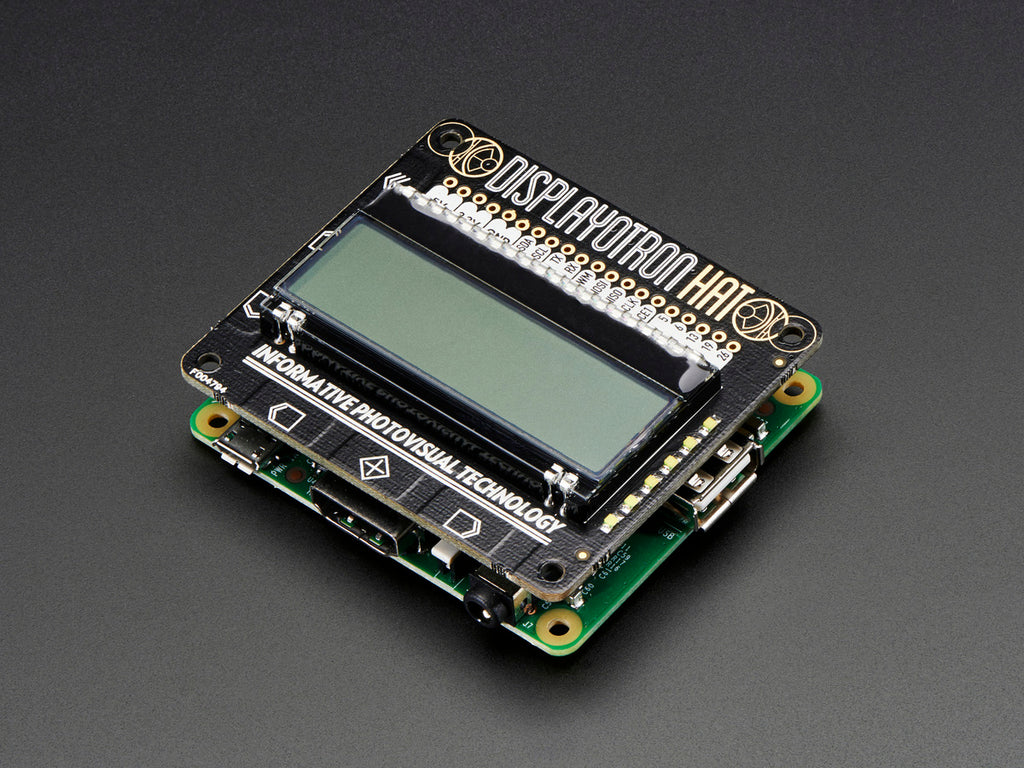

The Pimoroni Display-O-Tron HAT is an upgraded HAT version of our Display-O-Tron 3000!

The Display-O-Tron is a lovely 16x3 character LCD display with capacitive touch pads, GPIO breakout pins, and a six-zone RGB backlight (twice as bright as the older Display-O-Tron 3000)!

The capacitive touch pad is ideal for navigating on-screen menus or inputting data and there are some pretty common GPIO pins added for those of you who want to merge with other projects and sensors. The six-zone RGB backlight plus new and improved LED bar graph add a dazzling splash of rainbow color! Monitoring memory usage and CPU load was never so much fun!

To top this all off, this new HAT comes fully assembled with Pimoroni Python support to get you up and running!

Features:

  • Fully assembled (apart from optional GPIO header)
  • Super slim 16x3 character LCD display
  • Six capacitive touch input buttons
  • Handy six element LED bargraph
  • Six-zone RGB backlight with diffuser
  • GPIO breakout for 5V, 3V3, GND, SDA/SCL, TX/RX, PWM, MOSI/MISO/SCLK/CE1, and GPIO #5, #6, #13, #19, #26
  • Full ASCII set plus eight custom characters





Technical Details

For product support, replacement parts and warranty for Pimoroni products visit the Pimoroni forum or contact Pimoroni directly.

Product Dimensions: 65.0mm x 56.5mm x 12.6mm / 2.6" x 2.2" x 0.5"

Product Weight: 26.3g / 0.9oz

    RoHS 2 2011 65 EU Compliant
    RoHS 2 2015 863 EU Compliant
