Description

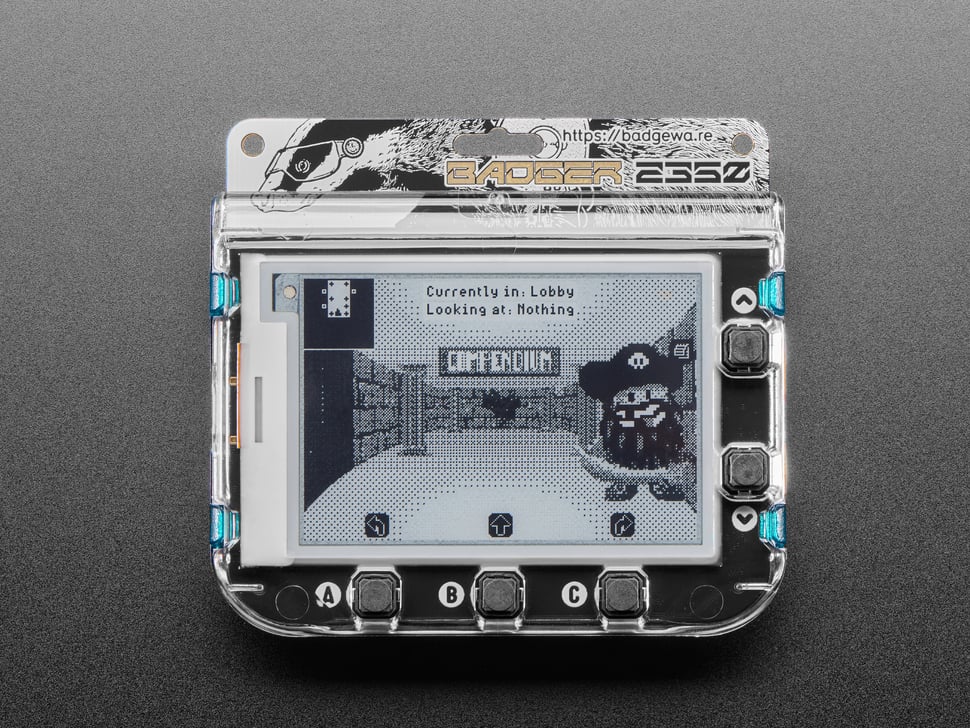

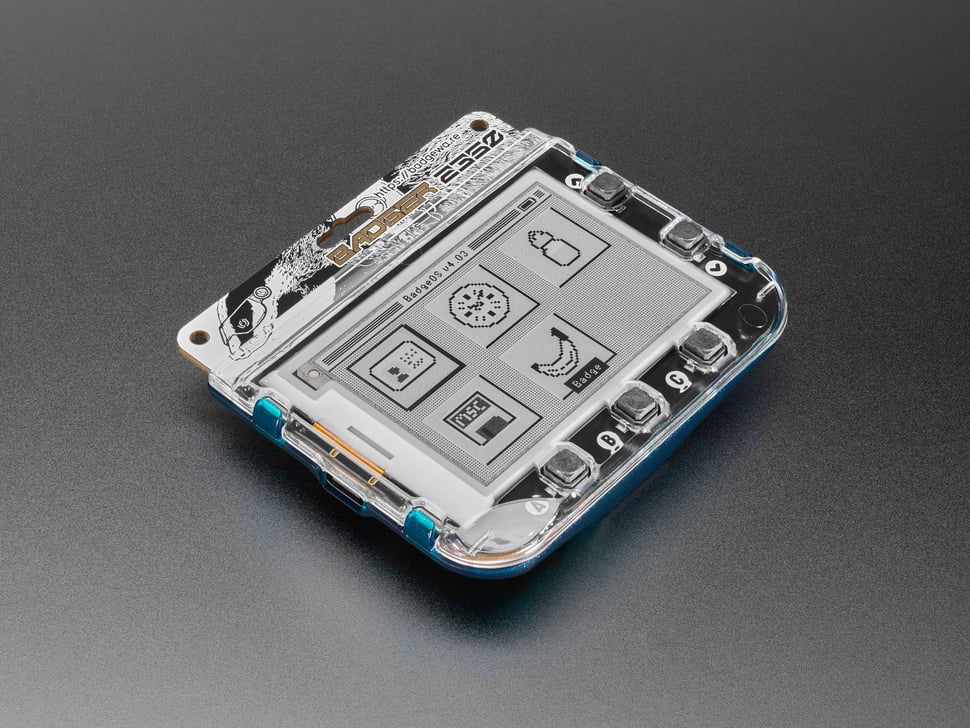

Badgeware is Pimoroni's smart interactive badge with four-level greyscale 2.7" E-Paper display, powered by Raspberry Pi RP2350.
This version is the (classic) E-Paper Badger 2350 - it's an all-in-one badge wearable with a fast updating 2.7" electronic paper screen, built-in rechargeable battery and sturdy polycarbonate case. Hang it round your neck with the (included) Badger lanyard or prop it up on your desk - either way it's ready to go straight out of the box. It's way more than just a event badge too - the four-level greyscale screen would also be great for displaying charts, signage or QR codes.
Find out more at https://badgewa.re !
🌳 What is Badgeware?
Badgeware is a trio of all-in-one wearables designed to put customizable tech within everyone's reach.
Each species of badgeware is built around a different display, but they share the same common features - five sturdy front buttons, a translucent jewel-colored polycarbonate case and a built-in LiPo battery with USB-C charging. They also have rear-mounted mono lighting to illuminate the case. Under the hood is top-notch Raspberry Pi hardware - a capable dual-core RP2350 chip plus an RM2 radio module for wireless and Bluetooth connectivity.

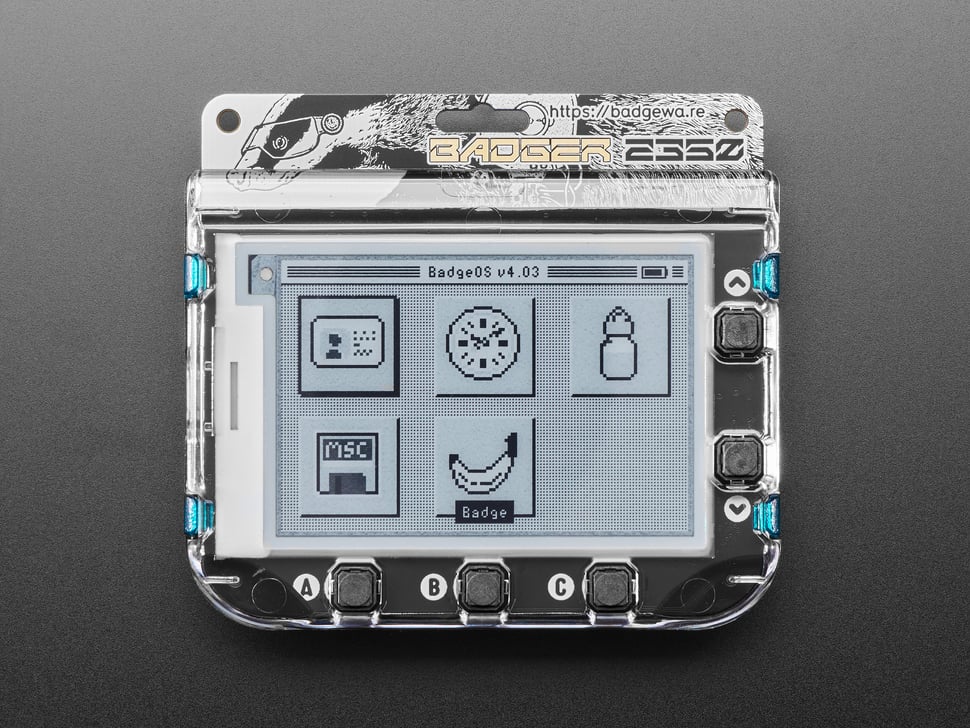

They're easy and fun for beginners to get started with, yet powerful enough for experienced coders to really make their own. Connect your badge to any computer to quickly personalize apps, or use MicroPython to develop new ones and add them to the BadgeOS launcher.
📦 What's in the box?
Every Badger 2350 comes fully assembled in a sturdy case with a built-in battery and a snazzy matching lanyard. You'll need a USB-C cable to charge the battery and program Badger (if you don't have one already, we stock USB-A to USB-C cables here).
👓 Features
- Display: 2.7" four-level greyscale electronic paper (264 x 176 pixels)
- Powered by RP2350A (Dual Arm Cortex M33 running at 250MHz with 520KB of SRAM)
- 16MB of QSPI flash supporting XiP
- 8MB of PSRAM
- Raspberry Pi RM2 module (CYW43439), supporting IEEE 802.11 b/g/n wireless LAN, and Bluetooth
- 1000mAh LiPo battery:
- PCF85063A real-time clock for waking from sleep (datasheet)

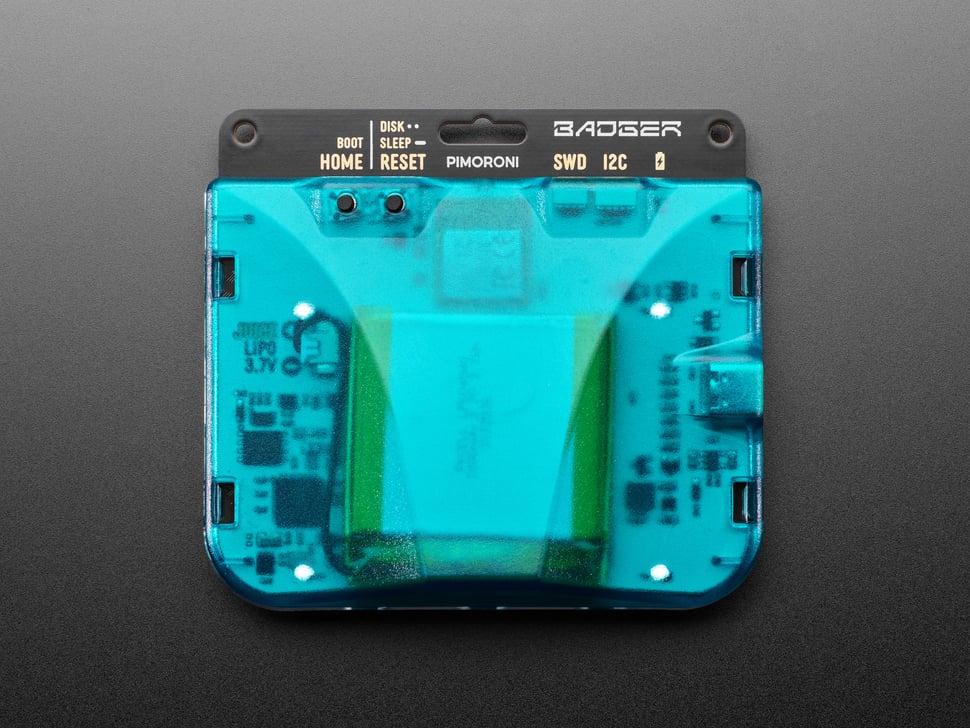

- Polycarbonate case with teal back
- 4-zone mono LED case lighting
- Buttons:
- Five front user buttons
- Reset (and sleep) button
- Home (and boot) button

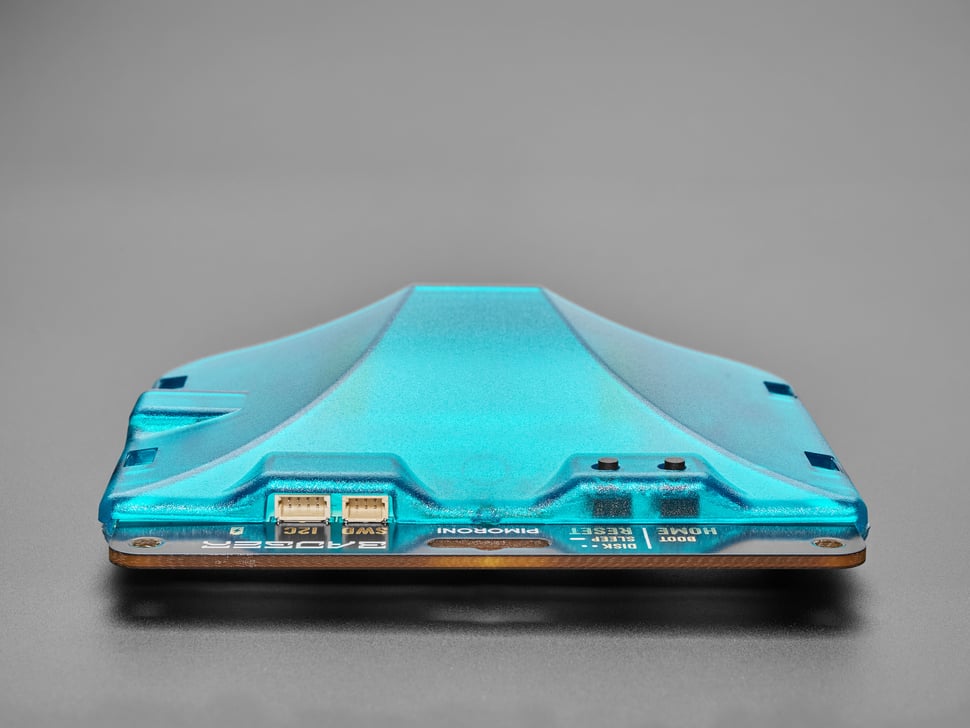

- Connectors:

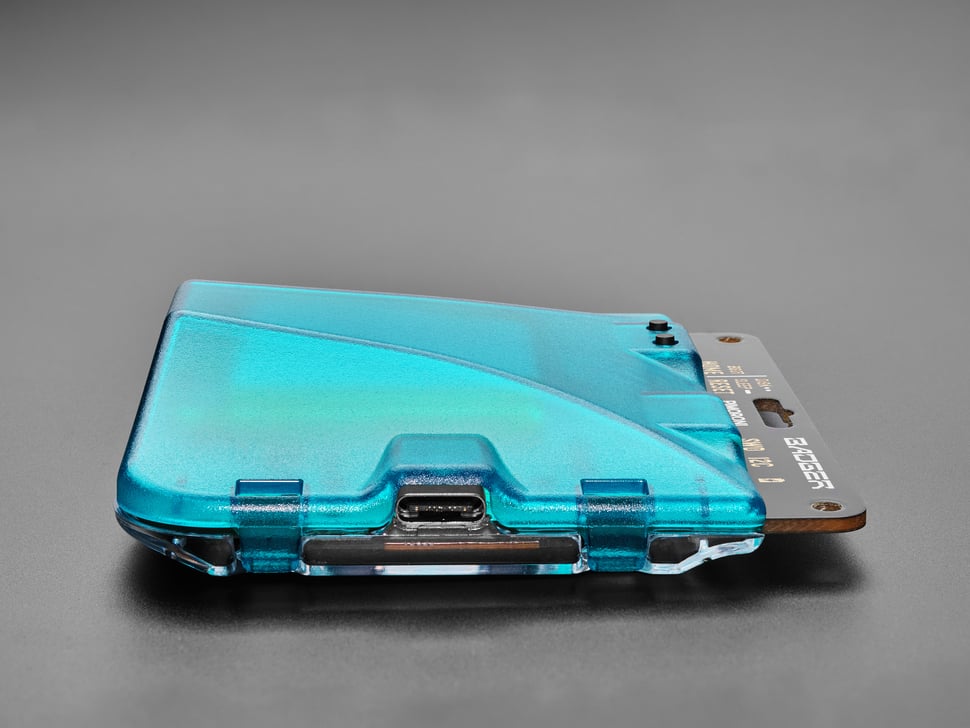

- USB-C connector for charging and programming
- I2C connector (Qwiic/STEMMA QT) for attaching breakouts
- SWD debug connector
- Programmable with MicroPython
- Comes fully-assembled (no soldering required)

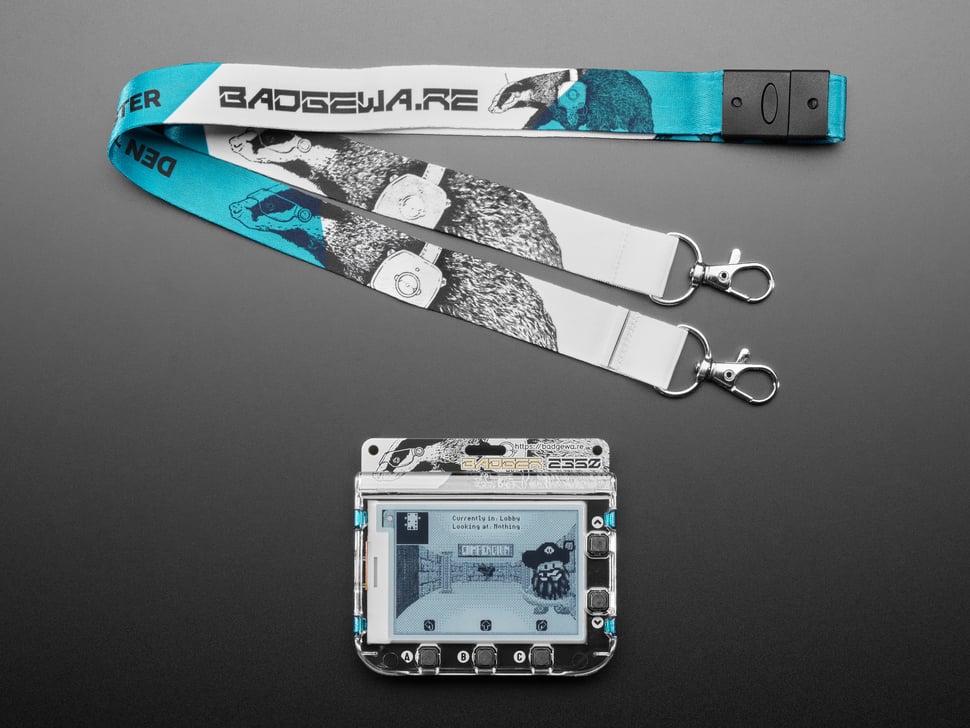

- Includes matching 2-clip lanyard

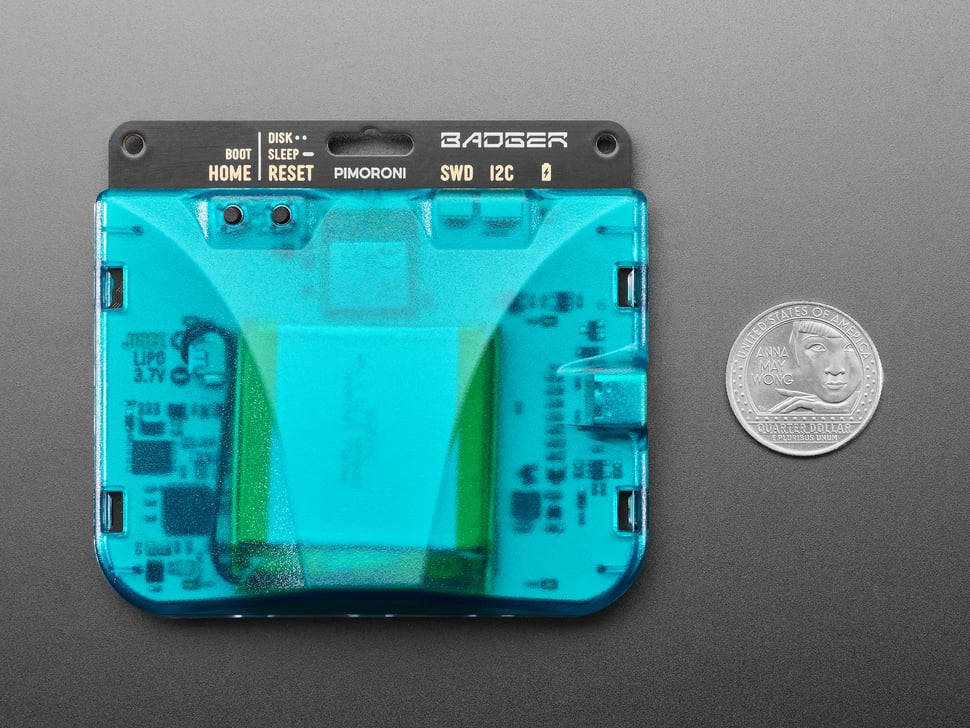

- Dimensions with case: 84mm (W) x 76mm (H) x 20mm (D)
🌞 Connecting Breakouts
Badger 2350 has an I2C connector, so you can connect up Qwiic/STEMMA QT breakouts easily using a JST-SH to JST-SH cable.
Technical Details
For product support, replacement parts, and warranty for Pimoroni products, visit the Pimoroni forum or contact Pimoroni directly.
Specifications:
- 2.7" 264×176 greyscale e-paper display
- RP2350 + 16MB flash + 8MB PSRAM
- WiFi + Bluetooth® 5.2
- USB-C + 1,000mAh battery
- User + system buttons
- Four-zone rear lighting
- "Den Tester" lanyard
For more details, press this link for Badgeware Docs.
