Pi Supply PaPiRus Zero ePaper/eInk pHAT v1.2

Price:
Sale price A$100.44   Inc. GST
SKU:
ADA3335
Out Of Stock

We will notify you when this product becomes available.

PaPiRus Zero is an ePaper / eInk screen pHAT designed for the Raspberry Pi Zero. It’s one of the first true low power displays for the Pi Zero mini computer.

ePaper / eInk is a display technology that mimics the appearance of ink on normal paper. Unlike conventional displays, ePaper reflects light – just like ordinary paper – and is capable of holding text and images indefinitely, even without electricity. Because of this, ePaper displays and single board computers or microcontrollers are a match made in heaven as together they use a very small amount of power whilst still bringing a display to your project.

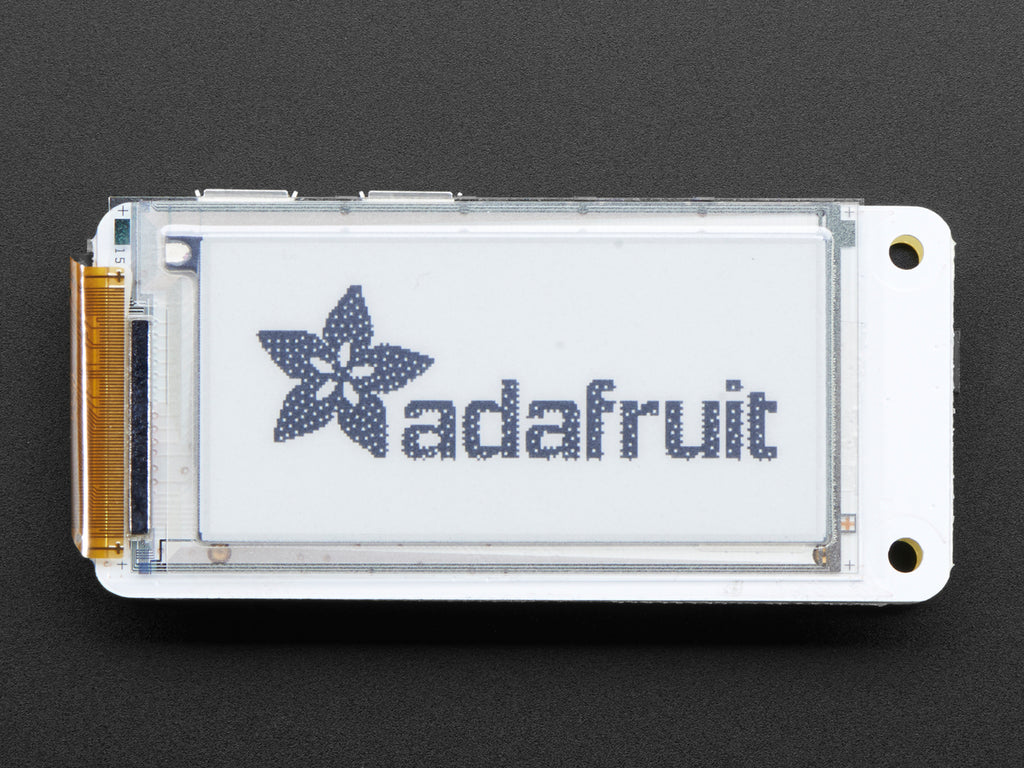

The ePaper display that comes with this PaPiRus Zero is a 2″ diagonal and 200 x 96 resolution ePaper display. One fantastic aspect of the ePaper display is the fact they don’t need any power to keep the image on the screen. Just like a Kindle, you can read whatever is on your screen in daylight without any reflection. More information including wiring diagrams, datasheets & and links to example code are available at rePaper.

Potential uses:

  • An eInk / ePaper name tag
  • Display the latest weather forecast
  • A Pi Zero ePaper watch
  • Display your own Twitter Feed
  • Small dynamic digital signage (such as displaying prices for products in a store)
  • Outdoor displays where you don’t want the screen to be affected by sunlight reflection
  • Any sort of data-logging applications

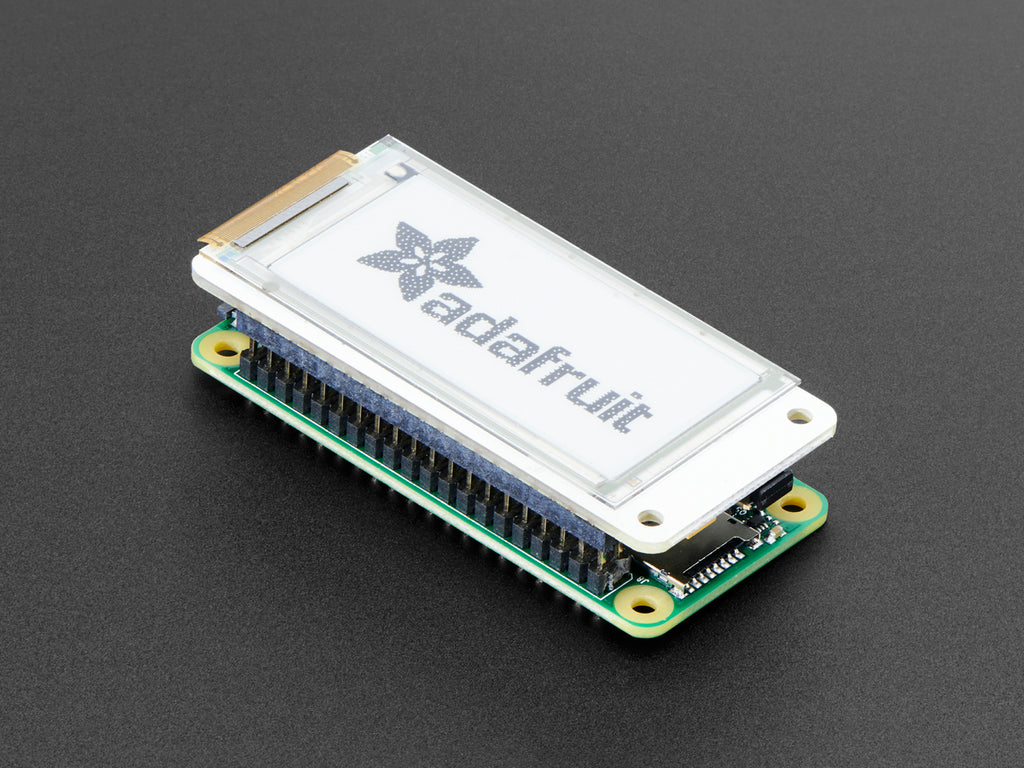

Works with any 40-pin Raspberry Pi variant.

PLEASE NOTE!! The PaPiRus Zero doesn’t come with a stacking header for use with the Pi Zero! If you still need one though, you can pick one up here.



Technical Details

  • Board Dimensions: 65mm x 30mm x 5.5mm / 2.6" x 1.2" x 0.2"
  • Board Weight: 9.7g / 0.34oz
  • Screen Dimensions: 2" x 1" x 0.03" / 55mm x 26mm x 0.85mm
  • Assembled Weight: 12.5g / 0.44oz

Codebase: https://github.com/PiSupply/PaPiRus

For product support, questions and queries, contact Pi Supply at [email protected], or use their contact form here.

    RoHS 2 2011 65 EU Compliant
    RoHS 2 2015 863 EU Compliant
