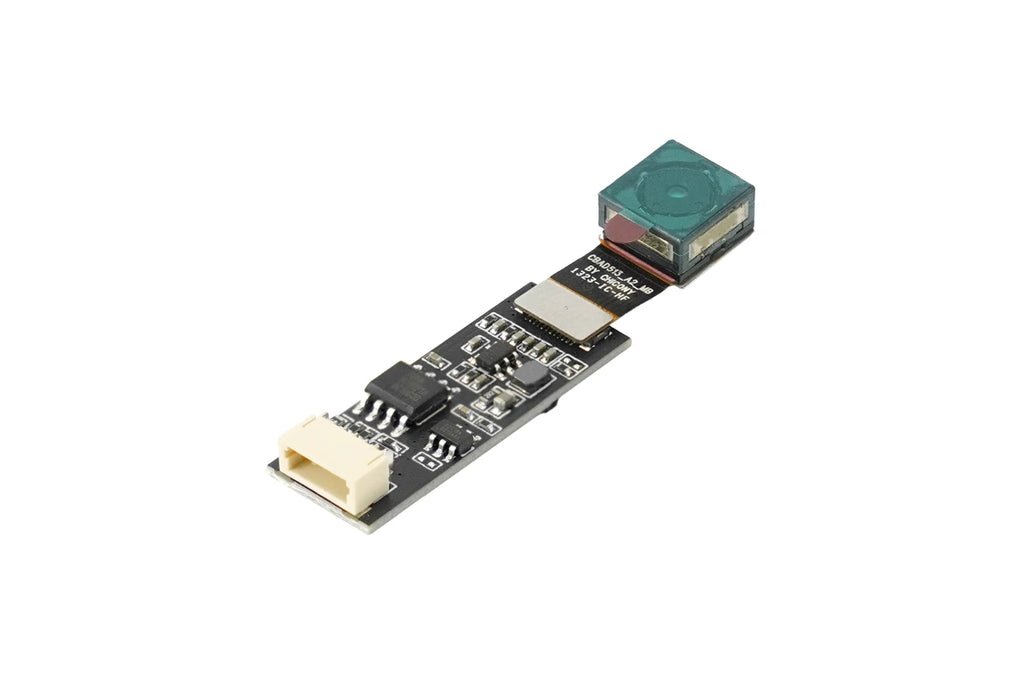

Unlock exceptional high-resolution imaging with the OV5648 5MP USB Camera Module. Built around a premium 1/4-inch OV5648 CMOS sensor, this compact module delivers stunning 2592×1944 clarity for both professional and hobbyist projects. With its precise autofocus and seamless USB plug-and-play functionality, it's the ideal imaging solution for everything from computer vision and robotics to rapid prototyping on platforms like Raspberry Pi, NVIDIA Jetson, and the RDK X3 ROS2 AI Board.
Brilliant Image Quality & Performance
Capture every detail with superior clarity. The high-performance OV5648 sensor, combined with intelligent onboard controls, ensures your visuals are consistently sharp and true-to-life.
- 5MP High-Definition Sensor: Delivers vibrant, detailed still images and video at a maximum resolution of 2592×1944.
- Sharp & Swift Autofocus: Automatically adjusts focus for objects from 30cm to infinity, eliminating manual adjustments and ensuring tack-sharp results.
- Flexible Video Formats: Supports both MJPEG for high-frame-rate applications and YUY2 for uncompressed, lossless video data, providing ultimate project flexibility.
Seamless Plug-and-Play Integration
Engineered for immediate productivity. This camera is designed to work right out of the box, saving you valuable development and setup time.
- UVC Compliant & Driver-Free: As a fully USB Video Class (UVC) compliant device, it requires no manual driver installation on Windows, macOS, Linux, and Android systems. Just plug it in and start streaming.
- Broad System Compatibility: Works flawlessly with a vast range of devices, including PCs, laptops, and single-board computers like the Raspberry Pi and NVIDIA Jetson series.
Compact & Efficient Design for Embedded Vision
Designed for versatility, its small form factor and low power draw make it the perfect choice for innovative and space-constrained applications.

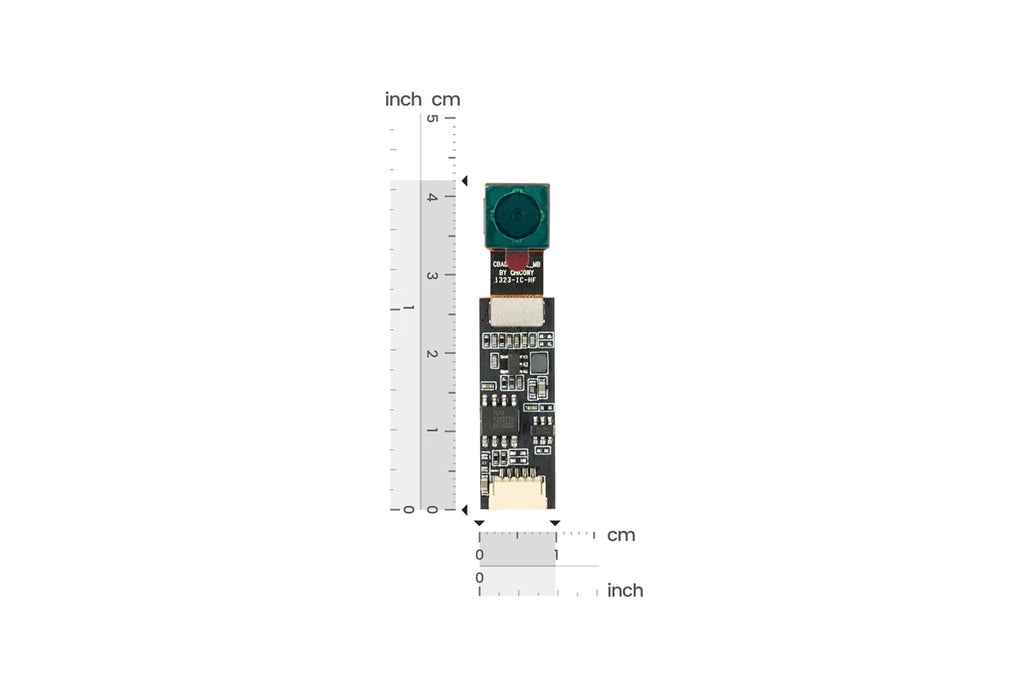

- Minimal Footprint: The compact module size allows for easy integration into custom housings and embedded systems.
- Low Power Consumption: Ideal for portable or battery-powered solutions where power efficiency is critical.
Applications:
- Computer Vision & AI Projects
- Facial Recognition & Biometric Security
- Smart Access Control Systems
- Robotics & Automated Navigation
- High-Resolution Document Scanning
- Educational Recording & Live Streaming
Specification:
- Image Sensor Size: 1/4" inch
- Active Pixels: 2592*1944
- Pixel Size: 1.4μm*1.4μm
- Output Format: MJPEG, YUY2
- Supported Resolutions & Frame Rates
MJPEG 640*480 30FPS / YUY2 640*480 30FPS
MJPEG 960*540 30FPS / YUY2 960*540 15FPS
MJPEG 1280*720 30FPS / YUY2 1280*720 8FPS
MJPEG 1920*1080 30FPS / YUY2 1920*1080 5FPS
MJPEG 2592*1944 15FPS / YUY2 2592*1944 2FPS - S/N Ratio: 34dB
- Max Dynamic Range: 67dB
- FOV: D:65.4°
- Shutter: Rolling
- Interface: USB2.0
- Power Supply: 5V±5%
- Power Consumption: 1000mW
- Supported Systems: Windows XP / Vista / 7 / 8.1 / 10 / Mac / Android / Linux 2.6.2+ (UVC compliant)
- Minimum Illumination: 600mV/(lux-sec)
- Focus Type: Auto focus
- Shooting Distance: 30cm - ∞
- Storage Temperature: -30 ~ 70
- Operating Temperature: 0 ~ 50
Documents:

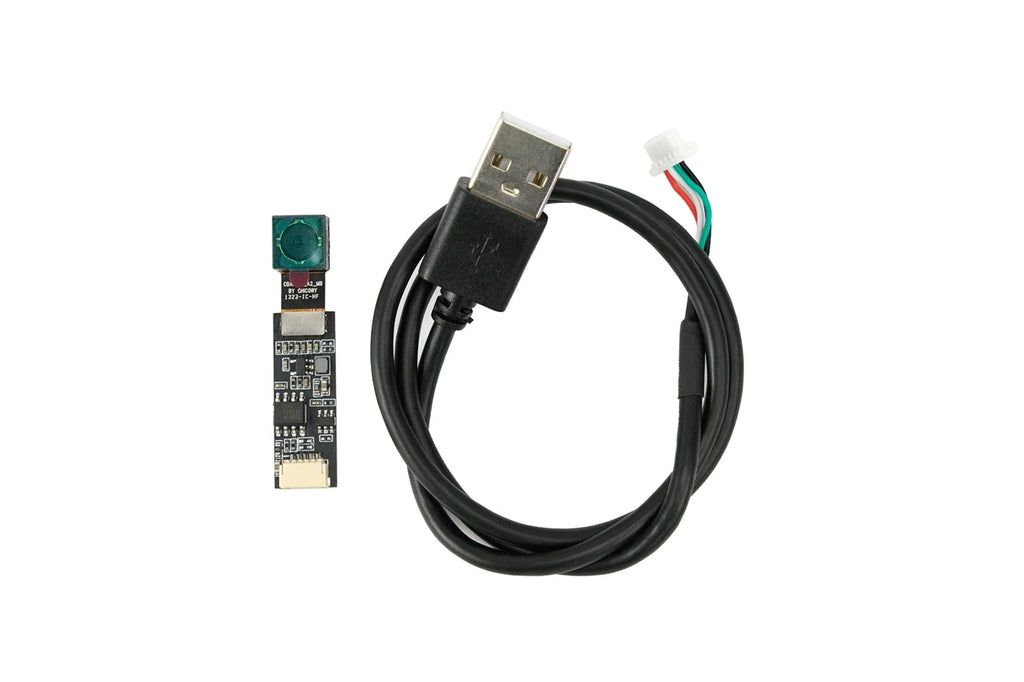

Product Includes:
- OV5648 USB 5MP Camera Module ×1
- 0.5m USB Cable × 1
