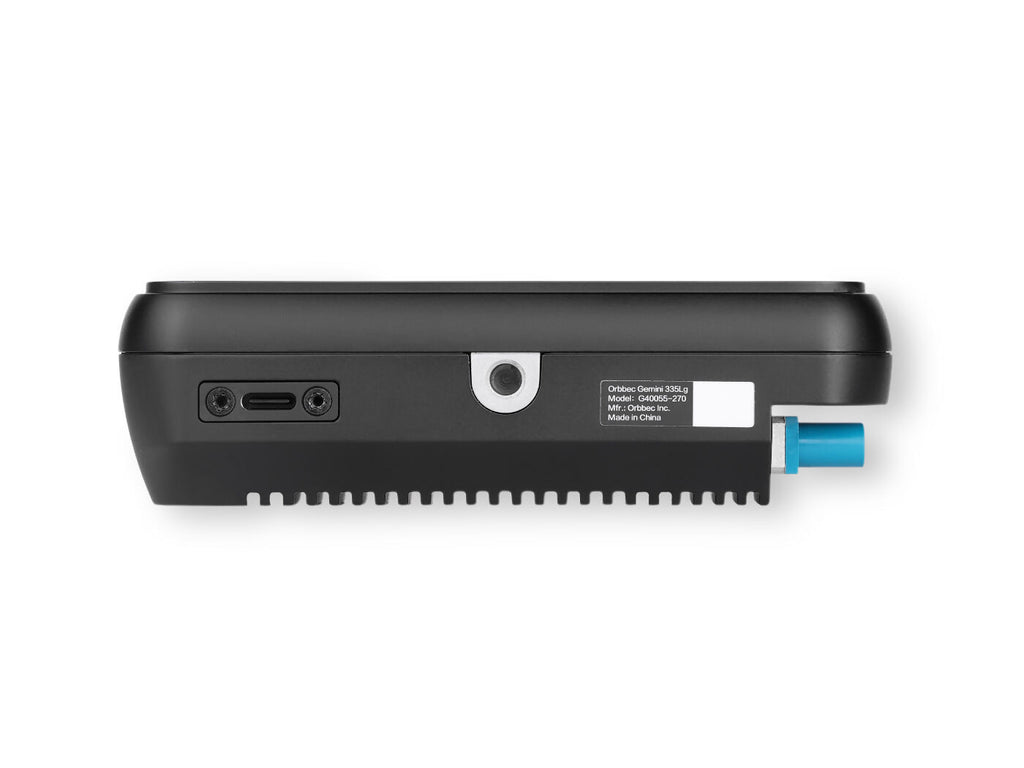

Gemini 335LG 3D camera is based on passiv and active stereo 3D imaging technology and is equipped with GMSL2 serializer and FAKRA-Z connector, making it the best choice for autonomous mobile robots (AMR) and robotic arms to adapt to complex environments and maintain stable and efficient operation. It is easy to set up and operate with the Orbbec SDK and delivers extremely accurate and reliable data in various industrial and robotics application environment, both indoors and outdoors. It is supported on reComputer Robotics GMSL series.
- Active Stereo IR Employs active stereo IR technology for depth output, enabling accurate and reliable data output in various lighting conditions
- Wide Sensing Range Provides quality depth data output from 0.17m to 20m
- Wide FOV Provides wide field of view data at 90-degree horizontal and 65-degree vertical
- Multi-camera synchrnoization Supports multi-camera synchronization for both depth image and RGB image

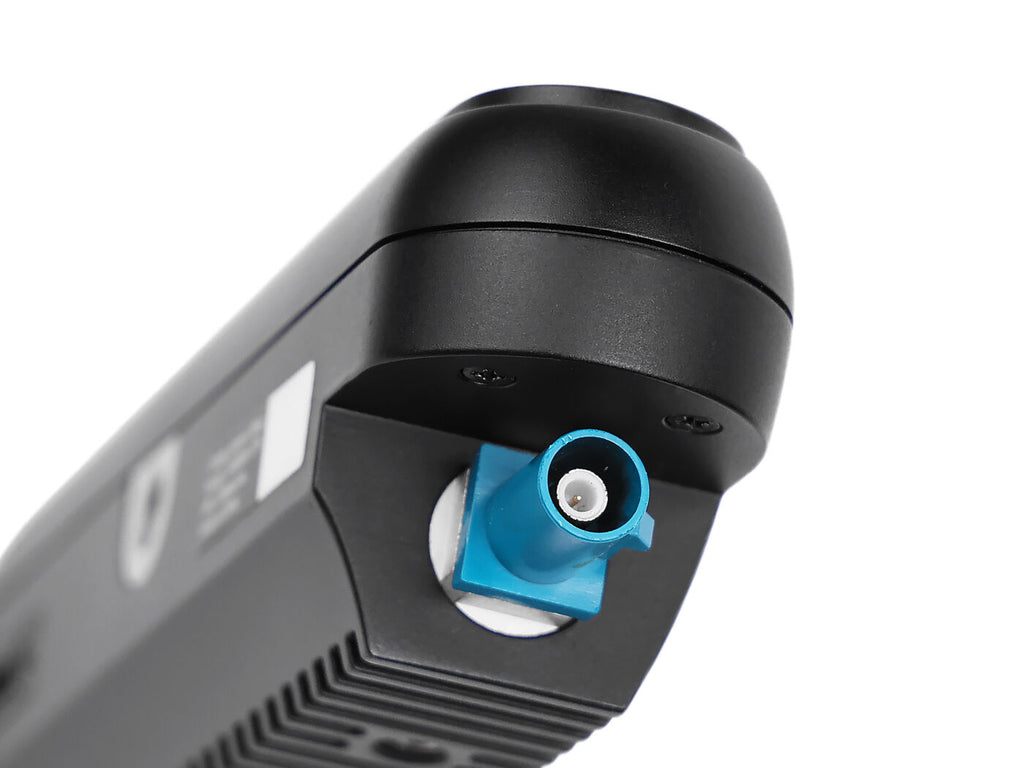

- GMSL Connection Uses FAKRA-Z cable for power and connectivity suitable for industrial and robotics applications
Product | Orbbec Gemini 335LG |
Voltage | 12V (FAKRA-Z) |
Depth Technology | Stereo vision |
Operating Temperature | -10℃~60℃
|
Mechanical Dimension | 124mm x 29mm x 36mm |
Communication Interface | GMSL FAKRA-Z |
Depth Range | 0.17m ~ 20m |
Ideal Range | 0.25m ~ 6m |
Depth Resoultion | Up to 1280x800 @ 30fps |
RGB Resoultion | Up to 1280x800 @ 60fps |
Depth FOV | 90° x 65° |
RGB FOV | 94° x 68° |

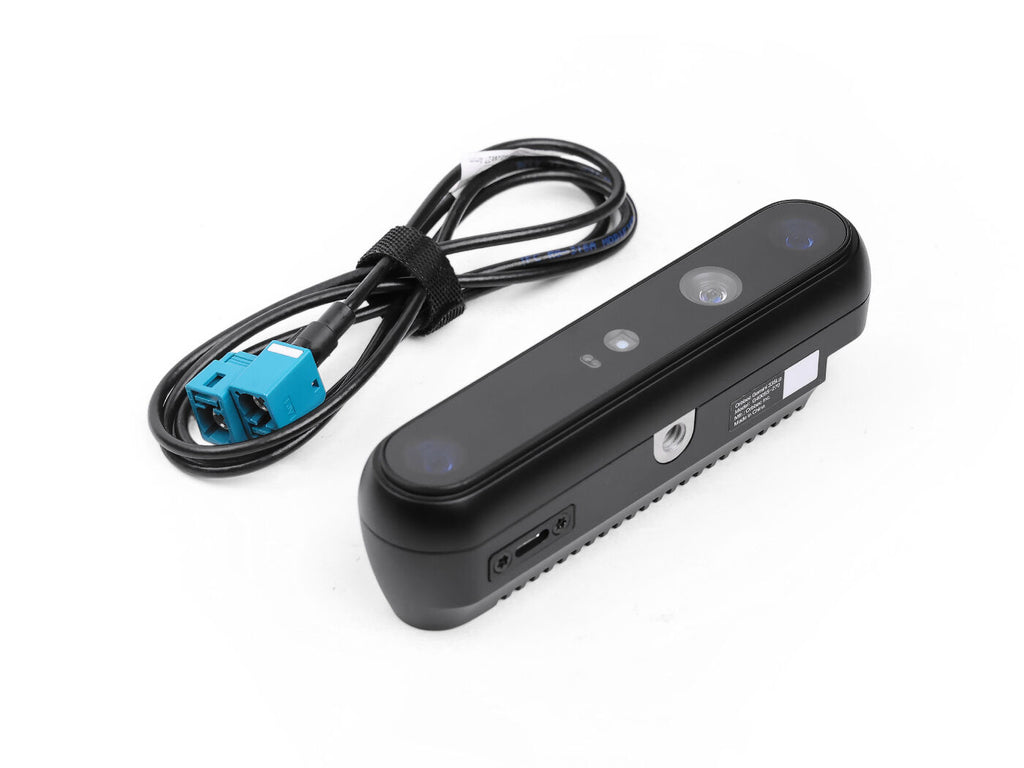

Orbbec Gemini 335LG 3D Camera | x1 |

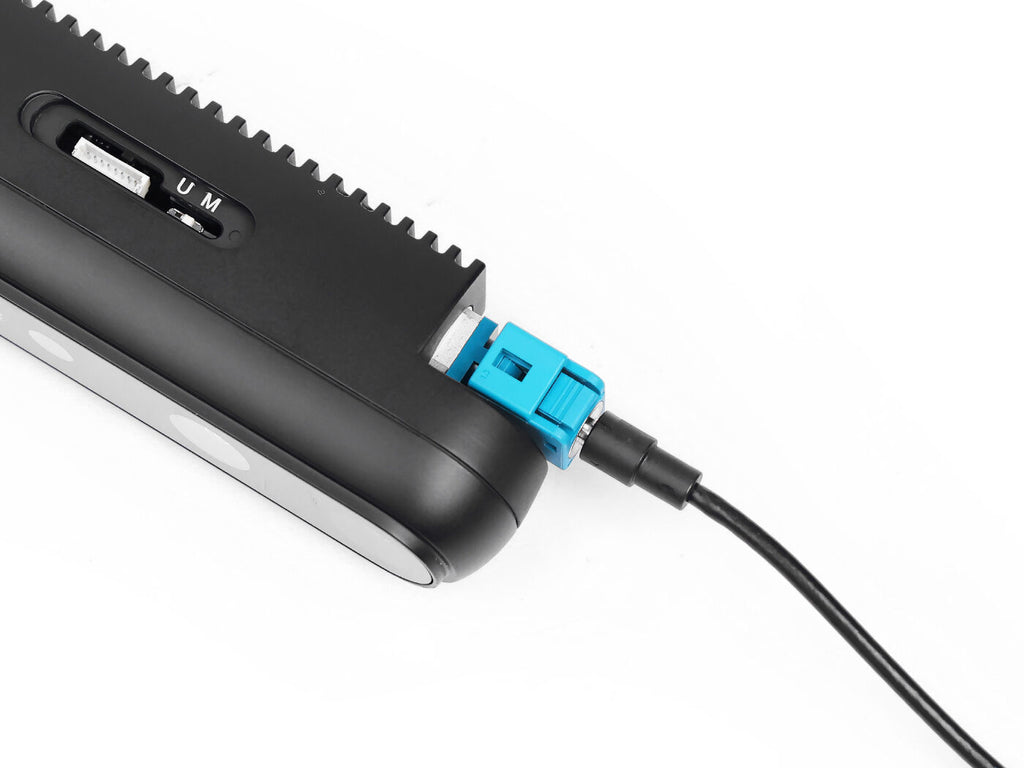

FAKRA-Z Cable (1m) | x1 |
| HSCODE | 8525891900 |
| USHSCODE | 8525895050 |
| UPC | |
| EUHSCODE | 8517600000 |
| COO | CHINA |
