Features
- reTerminal DM & LTE Cat 4 EC25 Bundle - Seeed Studio™ Technology: Reduces latency in the system's I/O channel between your SSD and your CPU by utilizing NVMeTM 1.3c technology.
- Cutting-Edge 3D Flash Memory: Built with BiCS FLASH™ and a vertically stacked cell structure, offering 1TB storage
- PCIe Gen3x4 32GT/s Interface
- Include cooling fin applicable to all 2280 SSDs
Description

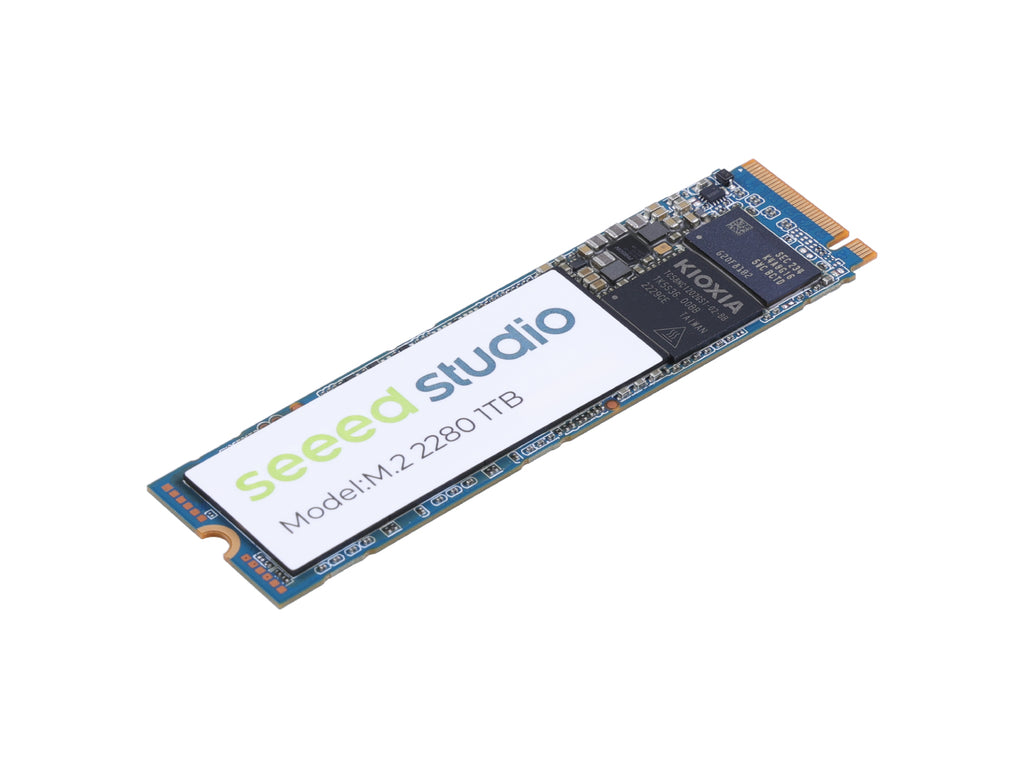

Here comes NVMe M.2 2280 Internal SSD with 1TB capacity, compatible with Desktops and laptops that accept PCIe NVMe Gen 3x4. It includes a cooling fin which is applicable to all 2280 SSDs.
Specification
Physical
Specifications | KIoXIA |
Capacity | 1TB |
Interface | PCI Express Base Specification Revision 3.1a (PCIe) |
Interface Maximum Speed | 32 GT/s (PCIe Gen3 x4) |
Interface Command | NVM Express Revision 1.3c command set |
Form Factor | M.2 Type 2280-S2-M |
Flash Memory Type | BiCS FLASH TLC |
Dimension (Max:L x W x H) | 80.15 mm x 22.15 mm x 2.23 mm |
Drive Weight | 500GB, 1TB: 6.8g (typ.), 2TB: 7.1g (typ.) |
Performance
Specifications | KIoXIA |
Max Sequential Read Speed | 2,100 MB/s |
Max Sequential Write Speed | 1,700 MB/s |
Max Random Read Speed | 1TB: 400,000 IOPS |
Max Random Write Speed | 2,400,000 IOPS |
Endurance (TBW) | 1TB: 400 TB |
MTTF | 1.5 million hours |
Environmental
Specifications | KIoXIA |
Operating Temperature | 0°C (Ta) to 85°C (Tc) |
Storage Temperature | -40°C to 85°C |
Shock Resistance | 9.806 km/s² [1,000 G], 0.5 ms half-sine wave |
Supply Voltage | 3.3V ± 5% |
Vibration | 196 m/s² (20 G Peak, 10~2,000 Hz, 20 min / Axis) x 3 Axis |
Power Consumption (Active) | 1TB: 3.5 W (typ.) |
Power Consumption | PS3: 50 mW (typ. PS4: 5 mW (typ.) |
Compatibility
Specifications | KIoXIA |
PCI Express | Compatible with PCI Express Base Specification Revision 3.1a NVM Express Revision 1.3c command set |
Connector Type | M.2 M key Socket |
Target Applications | Client desktops and laptops |
Part List
NVMe M.2 2280 SSD 1TB | x1 |
Cooling fin | x1 |
ECCN/HTS
| HSCODE | 8471701100 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
