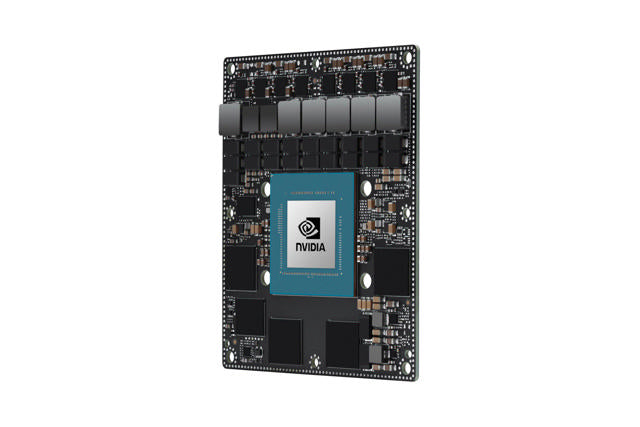

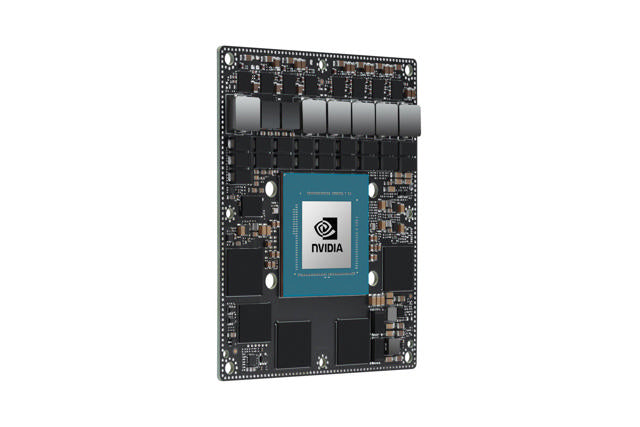

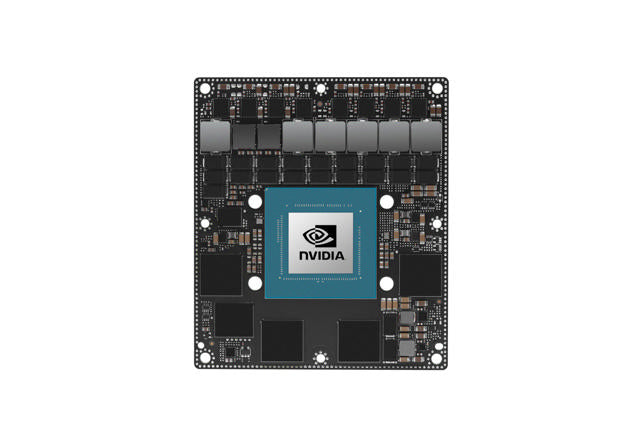

The NVIDIA Jetson AGX Orin 32GB is a production embedded module for AI-powered robotics, machine vision and autonomous equipment. It provides a balanced combination of AI performance, memory, power efficiency and high-speed connectivity. NVIDIA Ampere GPU architecture 32GB memory Arm CPU architecture Supports multiple AI inference pipelines Integrated vision and deep-learning acceleration High-speed camera and peripheral support Suitable for edge vision and clanker systems The module enables advanced AI workloads to run locally near connected equipment and sensors. Click here to contact our dedicated AI sales team about Jetson For more product information, please click here
Product Information
- AI Performance: 200 TOPS (INT8)
- GPU: NVIDIA Ampere architecture with 1792 NVIDIA CUDA cores and 56 Tensor Cores
- Max GPU Freq: 939 MHz
- CPU: 8-core Arm Cortex-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
- CPU Max Freq: 2.2 GHz
- DL Accelerator: 2x NVDLA v2.0
- DLA Max Frequency: 1.4 GHz
- Vision Accelerator: PVA v2.0
- Memory: 32GB 256-bit LPDDR5 204.8 GB/s
- Storage: 64GB eMMC 5.1
- CSI Camera: Up to 6 cameras (16 via virtual channels) 16 lanes MIPI CSI-2 D-PHY 2.1 (up to 40Gbps) | C-PHY 2.0 (up to 164Gbps)
- Video Encode: 1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) H.264, AV1
- Video Encode: 1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60| 18x 1080p30 (H.265) H.264, VP9, AV1
- UPHY: Up to 2 x8, 1 x4, 2 x1 (PCIe Gen4, Root Port & Endpoint) 3x USB 3.2 Single lane UFS
- Networking: 1x GbE 4x 10GbE
- Display: 1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
- Other I/O: 4x USB 2.0 4x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, DMIC & DSPK, GPIOs
- Power: 15W - 40W
- Mechanical: 100mm x 87mm 699-pin Molex Mirror Mezz Connector Integrated Thermal Transfer Plate
Specifications
| Warranty | 1 Years |
Media
| Name | Download | File type |
|---|---|---|
| Product Data Sheet | 734 KB | |
| User Manual | 758 KB |
