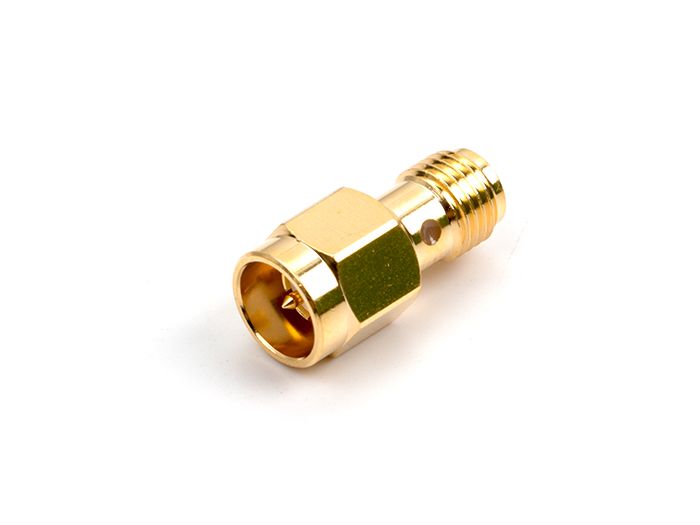

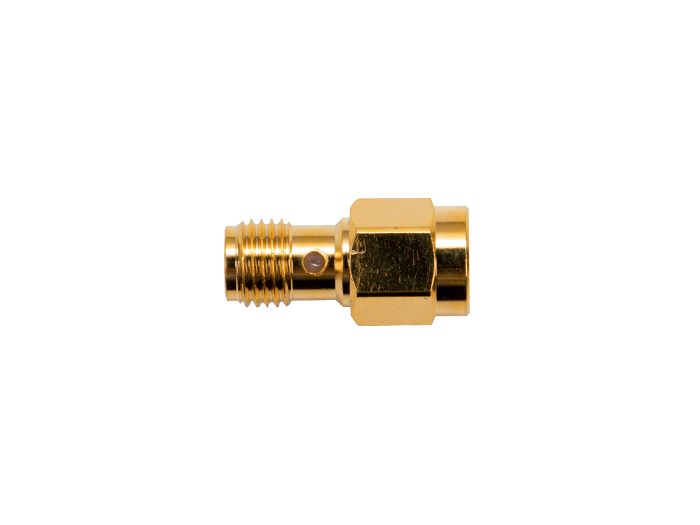

The RF Explorer SMA Push-ON Male/Female adapter is great for repetitive connections to the SMA port. Normal threaded SMA ports are useful for permanent connection but this Push-ON adapter makes it very easy to plug-unplug a cable or device with just a slide gesture, no need to screw or thread the SMA connector.
Typically used for testing or momentary antenna measurements, these Push-ON adaptors are hard to find at this quality and price in low quantities.
The Push-ON adaptor is the same quality part included in the RF Explorer Near Field Antenna Kit. We benefit from our volume orders and therefore can pass this save cost to you.
Features

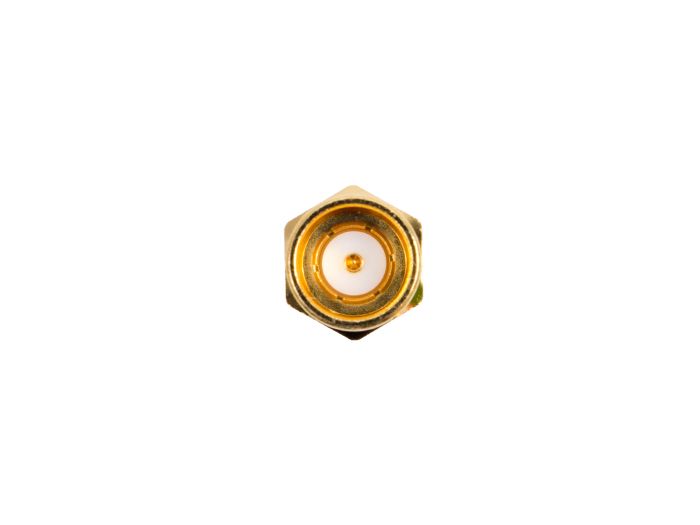

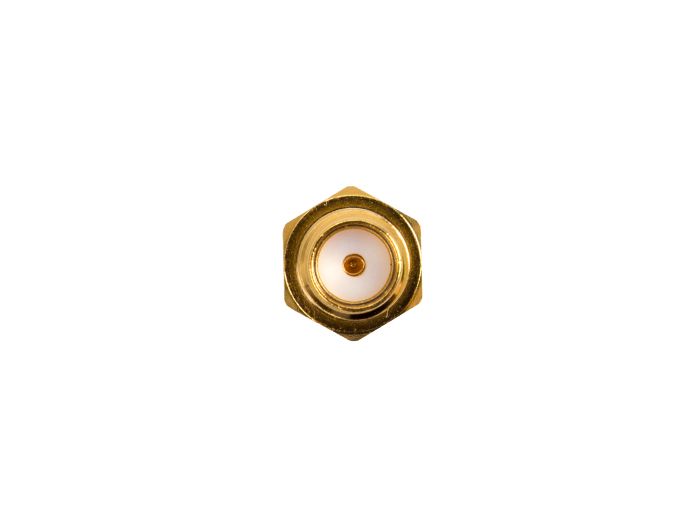

Quality golden Push-ON connector on the Male side, normal threaded Female side.
Convenient for quick connections with a gesture
Easy to use for repetitive measurement
Technical details
| Dimensions | 170mm x90mm x90mm |
| Weight | G.W 4.5g |
| Battery | Exclude |
| Impedance | 50ohm |
| Connector | Push-ON SMA Male, standard Female |
| Insulating Material | Teflon |
| Contact material | Gold (>3 micro inches) |
| Body material | Brass/Beryllium Copper/Nickel |
| Bandwidth | 6Ghz |
| VSWR |
Part List
| SMA Push-ON Male/Female adapter | 1 |
ECCN/HTS
| HSCODE | 9030900090 |
| USHSCODE | 9030908900 |
