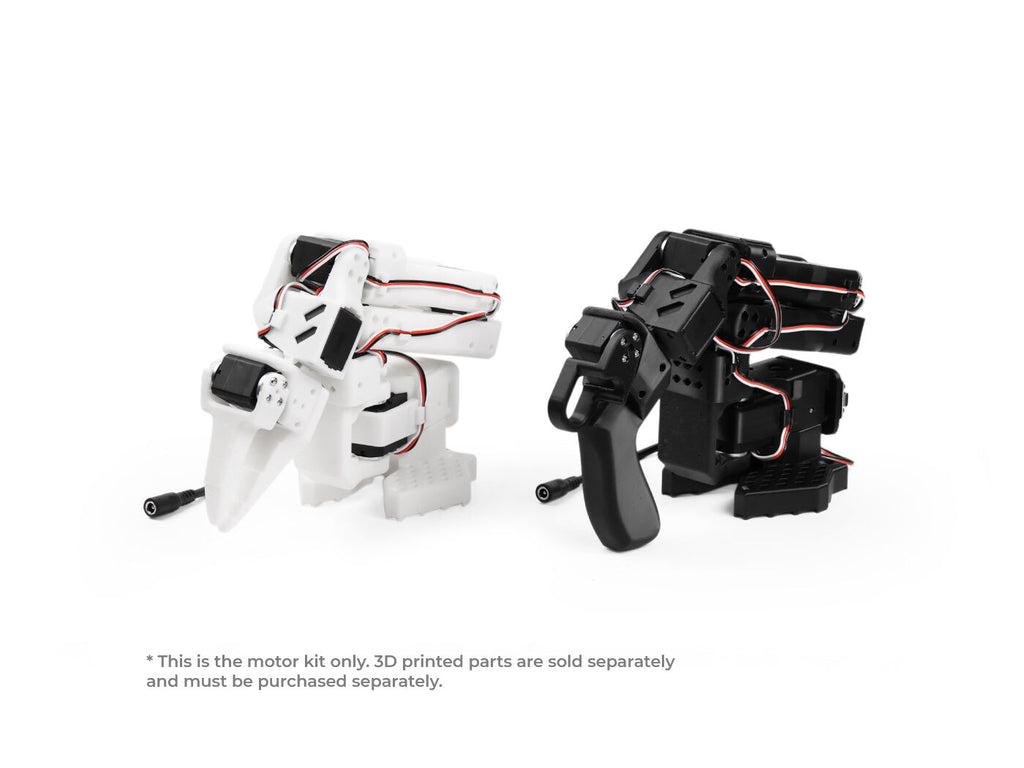

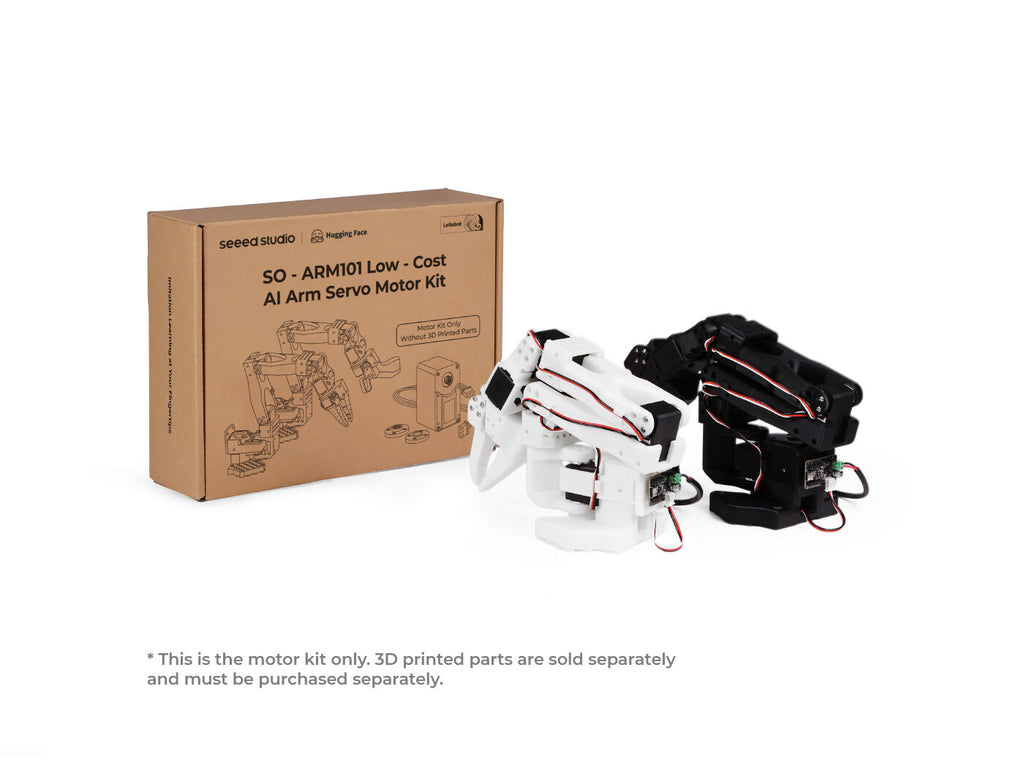

Build your own imitation learning robotic arm with the SO-ARM101! Designed for LeRobot and Hugging Face projects, these kits include servo motors, adapter board, and cables. Open-source, low-cost, and DIY-friendly—perfect for robotics enthusiasts and developers. Start prototyping today with our comprehensive resources!
What's news:

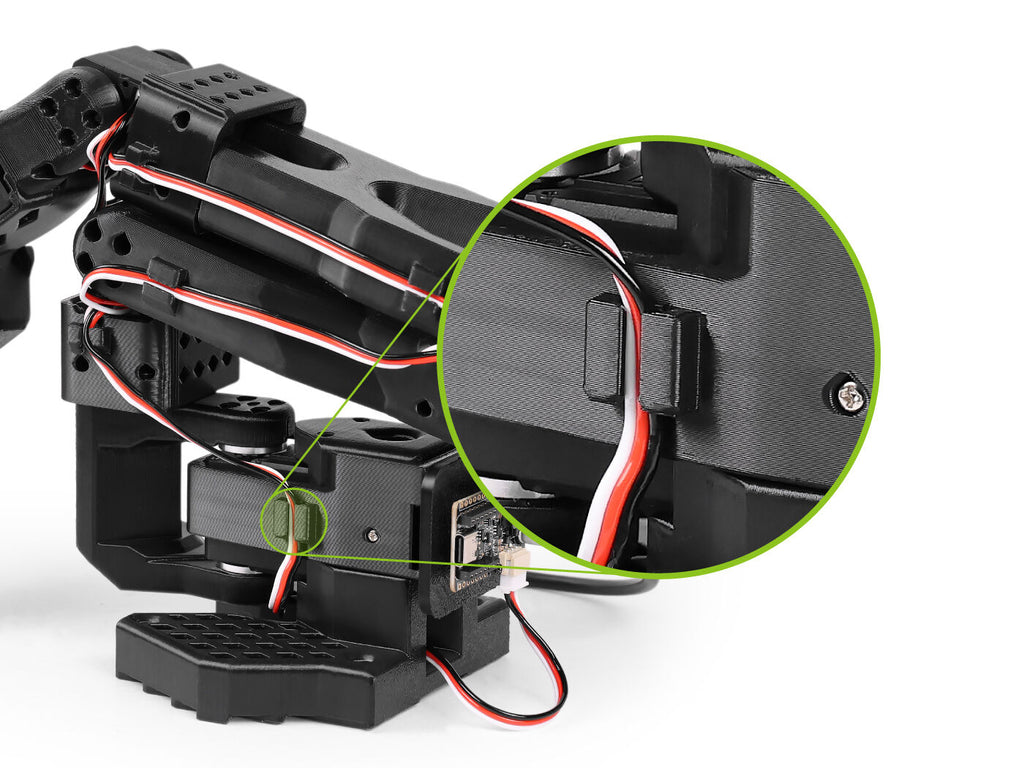

- Wiring optimization: Compared to SO-ARM100, SO-ARM101 features improved wiring that prevents disconnection issues previously seen at joint 3. The new wiring design also no longer limits the range of motion of the joints.
- Different gear ratios for the leader arm: The leader arm now uses motors with optimized gear ratios, improving performance and eliminating the need for external gearboxes.
- New functionality support: The leader arm can now follow the follower arm in real-time, which is crucial for the upcoming reinforcement learning (RL) policy, where a human can intervene and correct the robot’s actions.
Features of SO-ARM 10x Sereies:
- Open-source and low-cost: It is an open-source, low-cost robotic arm solution from TheRobotStudio.
- Integration with LeRobot: Designed for integration with LeRobot platform which offers PyTorch models, datasets and tools for reinforcement learning and imitation learning for real-world robotics applications (including data collection, simulation, training and deployment).
- Abundant learning resources: Provides comprehensive open-source learning resources like assembly and calibration guides, and tutorials for testing, data collection, training and deployment to assist users in quickly getting started and developing robotic applications.
- Compatible with Nvidia: Deploy this arm kit with reComputer Mini J4012 Orin NX 16 GB.
SO-ARM10x Low-Cost AI Arm Kit and Arm Kit Pro | ||||
Type | SO-ARM100 | SO-ARM101 | ||
Arm Kit | Arm Kit Pro | Arm Kit | Arm Kit Pro | |

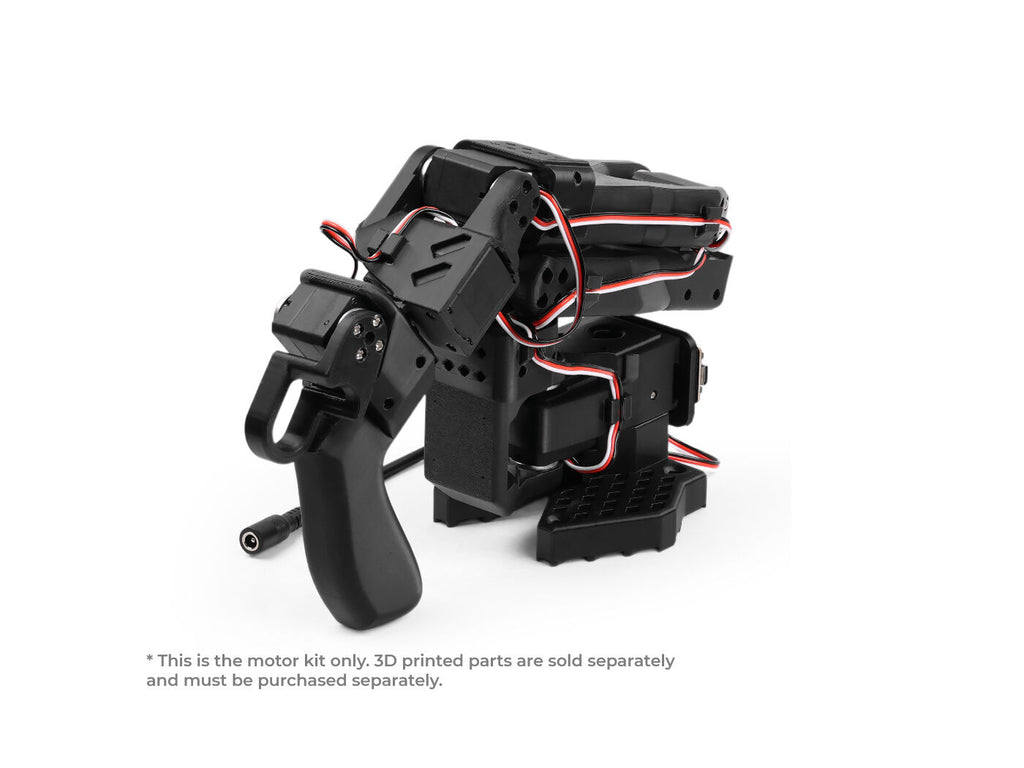

Leader Arm | 12x (7.4V) 1:345 gear ratio motors for all joints | 12x (12V) 1:345 gear ratio motors for all joints | 1x (7.4V) 1:345 gear ratio motor for No.2 joint | |
2x (7.4V) 1:191 gear ratio motors for No.1 and No.3 joints | ||||
3x (7.4V) 1:145 gear ratio motors for No.4, No.5 joints and the No.6 gripper | ||||

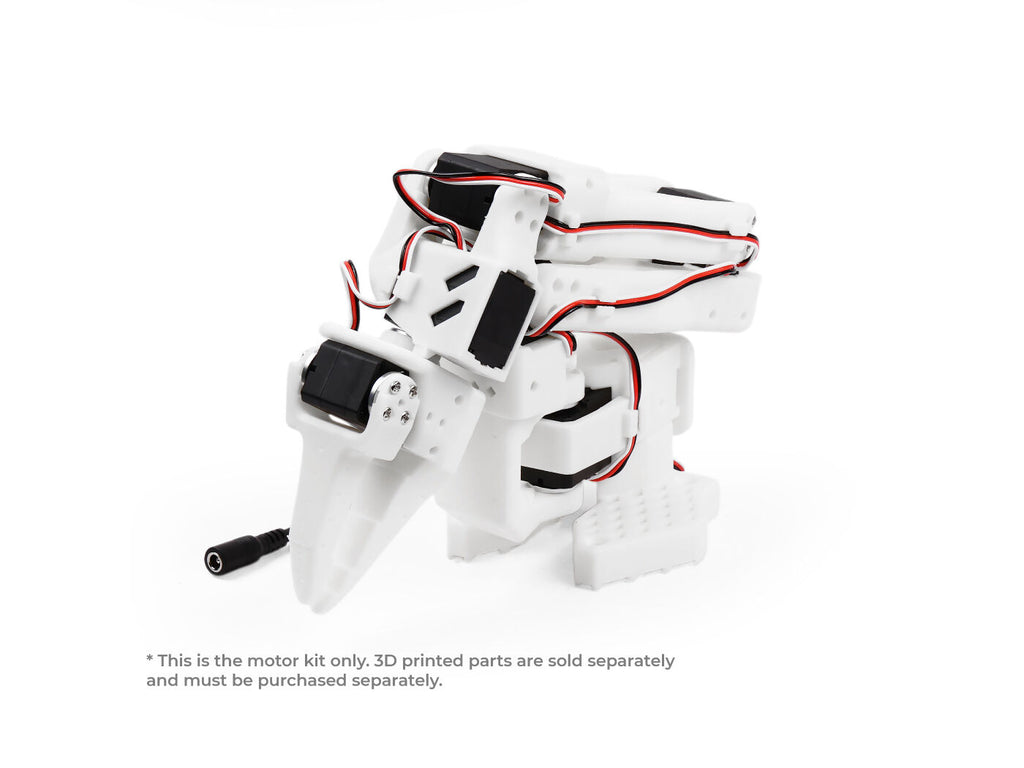

Follower Arm | Same as SO-ARM100 | Same as SO-ARM100 | ||
Power Supply | 5.5mm*2.1mm DC 5V4A | 5.5mm*2.1mm DC 12V2A | 5.5mm*2.1mm DC 5V4A | 5.5mm*2.1mm DC 12V2A For Follower Arm |
5.5mm*2.1mm DC 5V4A For Leader Arm | ||||
Angle sensor | 12-bit magnetic encoder | |||
Recommended Operating Temperature Range | 0℃~40℃ | |||
Communication Method | UART | |||
Control Method | PC |
Note: Seeed Studio only provides the hardware required for LeRobot.
For SO-ARM10x hardware , please refer to: TheRoboStudio for synchronized updates.
For software and tutorials, please follow: Huggingface/Lerobot.
Please promptly report the issue to the LeRobot platform or the LeRobot Discord channel.
Imitation learning and Reinforcement learning
The LeRobot framework is compatible with the SO-ARM10x robotic arm. It provides complete data collection, training, and deployment for teaching the robotic arm, and also has a comprehensive simulation platform. On the Nvidia Jetson edge device, it's easy and quick to train a customized robotic arm to complete grasping and placing tasks. For detailed tutorials, please refer to: LeRobot - NVIDIA Jetson AI Lab
Finedtune 3D printed parts files
Original SO-ARM100 3D printed parts
Servo Adaptor Board for Seeed Studio XIAO Datasheet

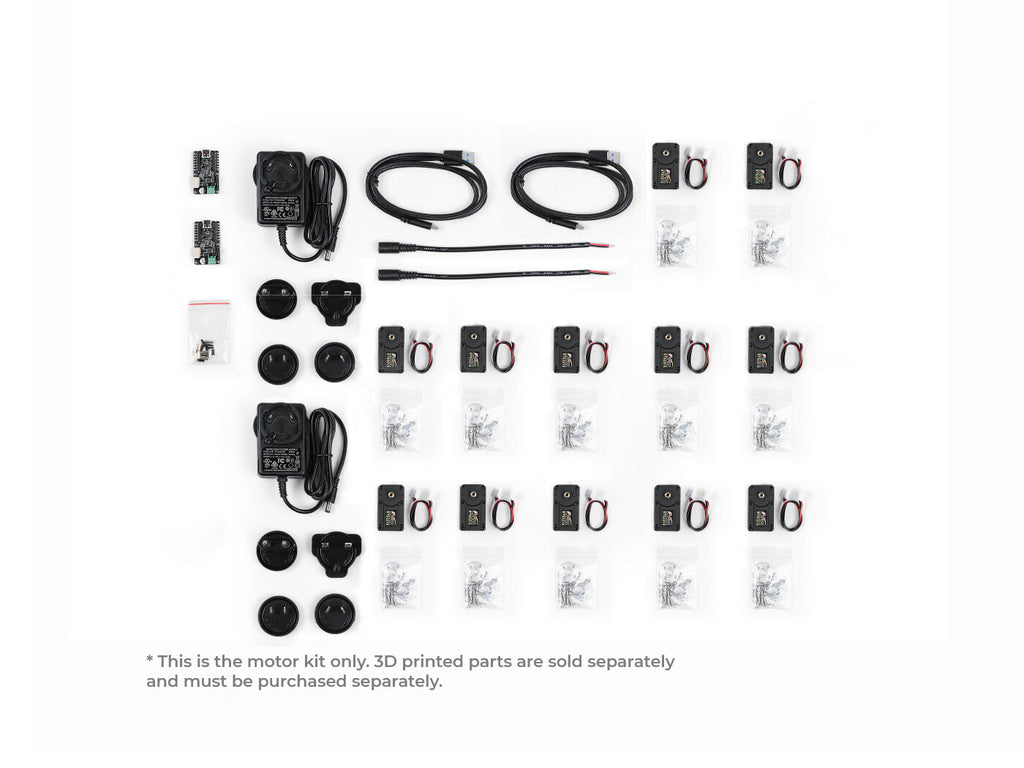

7.4v STS3215 Servo Motor 1:345 gear rate | x7 |
7.4v STS3215 Servo Motor 1:191 gear rate | x2 |
7.4v STS3215 Servo Motor 1:145 gear rate | x3 |

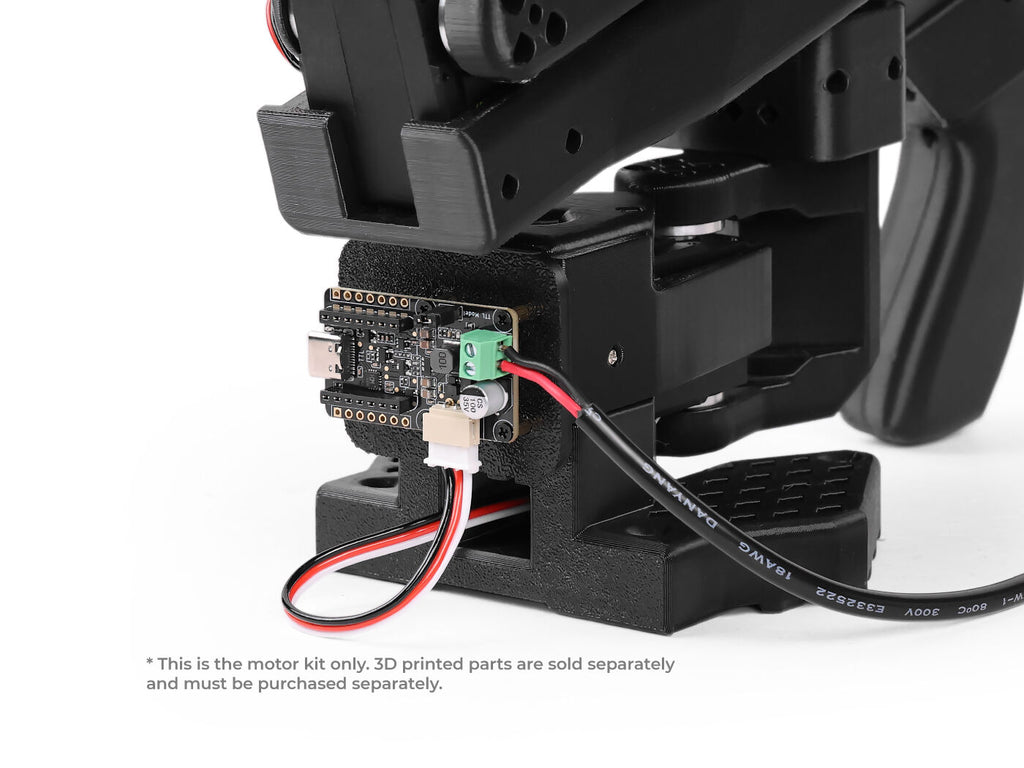

Servo Adaptor Board for Seeed Studio XIAO | x2 |
Stud | x8 |
Screw | x8 |
5V Power Supply Cable (Multiple head) | x2 |
USB-C Cable | x2 |
DC Power Pigtail Cable | x2 |
HSCODE | 8501109990 |
USHSCODE | 8501104080 |
UPC | |
EUHSCODE | 8501109390 |
COO | CHINA |
