Feature
- Enabled theory: Implement detection based on 24GHz mmWave Doppler radar technology
- Vital signs detection: Sense simultaneously moving and stationary persons, detect respiratory sleep to monitor human sleep quality
- Perfect privacy protection: Apply mmWave monitoring technology to provide surveillance capabilities without identification
- Health-friendly working status: Output power as low as harmless to human body
- High stability: Independ from temperature, humidity, noise, airflow, dust, light and other environmental influences
- High flexibility radar: Support secondary development and adapt to various scenarios applications

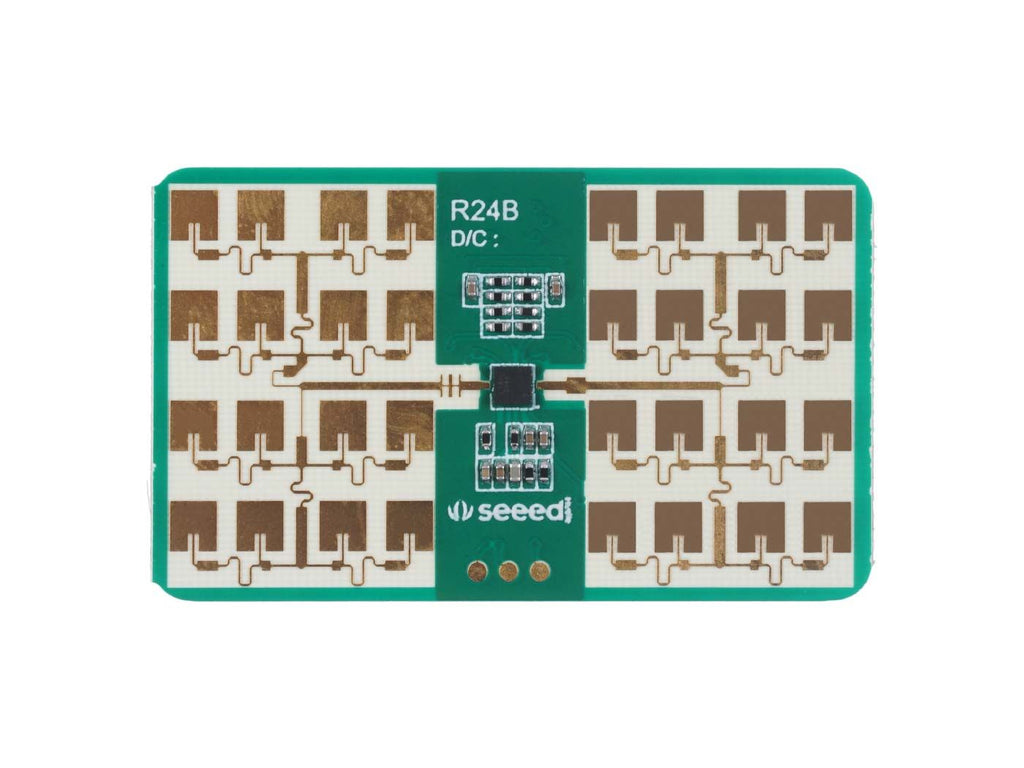

Description
The MR24BSD1 24GHz radar module applies Doppler radar detection technology to implement human sleep quality monitoring, detecting body moving and stationary along with human breathing rate, providing a fully private and secure environment, independently from other noisy influences. It represents useful privacy-protected, secure sensor radar systems in smart home applications like sleep safety alarm, sleep respiratory detection, movement monitoring.
Compared to the traditional PIR sensor, 24GHz mmWave sensors offer the better performance of human activities detection for high sensitivity. The transmitting mmWave is millimeter-level which means mmWave sensors will maintain sensing status even if there is a shelter block the detected object. Unlike rapid responding to PIR sensor, mmWave sensors detect objects continuously. All of which makes mmWave sensors quite useful in the living rooms, hotels, or even prison that requires monitoring all the time.
The MR24BSD1 radar leverages the superior performance of 24GHz mmWave to monitor human sleep quality implements based on received breathing rate and body movement while people falling asleep. Furthermore, the radar is independent of temperature, humidity, noise, airflow, dust, light, and other environmental influences. Designed as low power output, the radar maintains health-friendly working status while it is detected. For privacy protection, the radar uses the properties of millimeter waves that only process wave signals to provide a fully private sensing environment.
The radar supports secondary development and it adapts to various scenarios applications as it includes scene recognition capability that identifies occupied/unoccupied and personnel activity status. The detected area is a Horizontal 40°/vertical 40° sector beam and it maximum detect 2.75 meters of body movement and 1.5 meters human breathing rate.

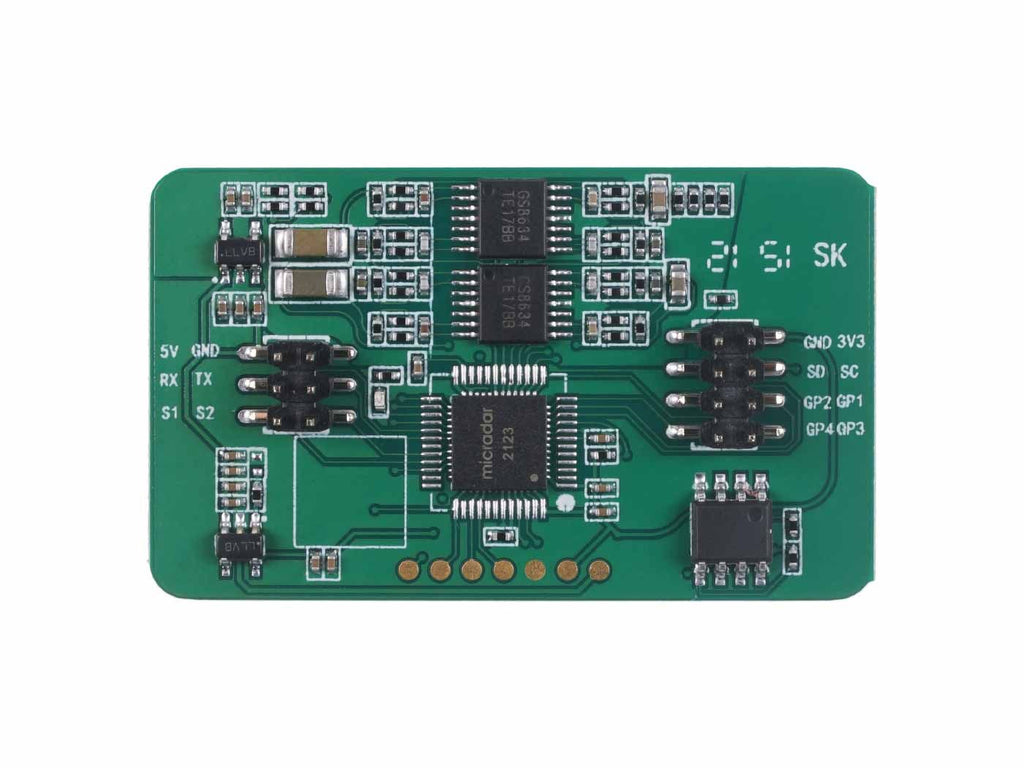

Pinout
Usage Method
Application
- Smart Home
- Smart Hotel
- Human Sleep Quailty Monitor

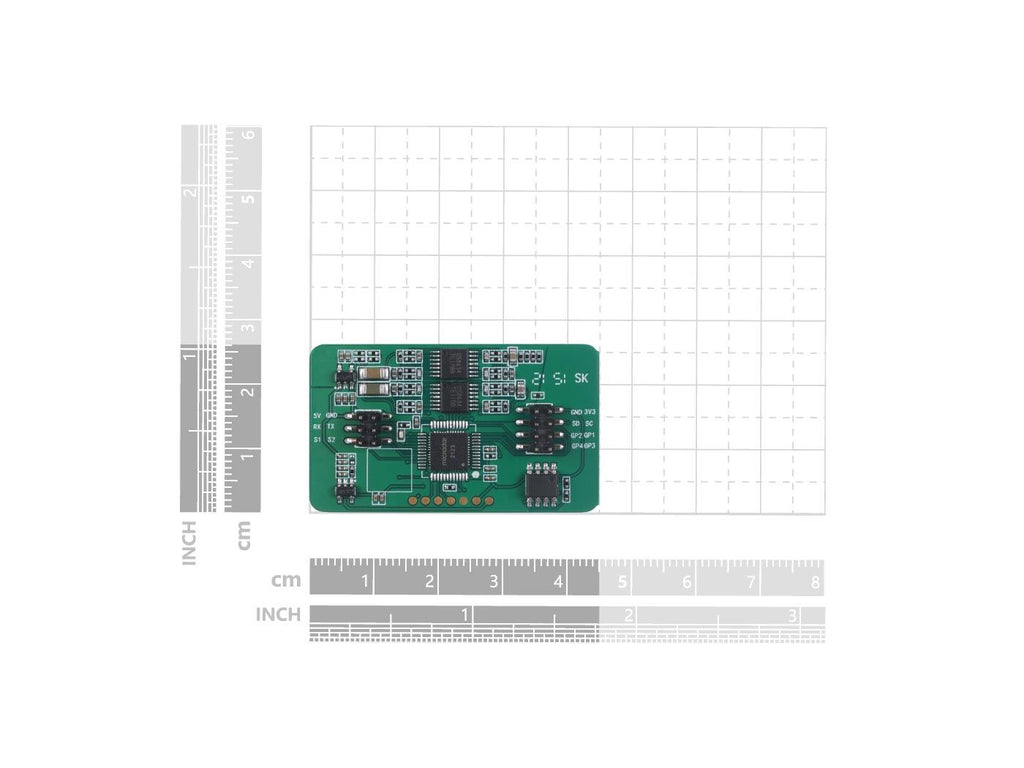

Specification
Detection angle and distance
Parameter content | Minimum value | Typical values | Maximum value | Unit |
MR24BSD1 (32-point narrow beam antenna) | ||||
Sleeper perception distance | - | - | 2.75 | meter |
Fall state sensing distance | 0.5 | 1.5 | meter | |
Radar detection angle (horizontal) | - | 90 | - | meter |
Radar detection angle (pitch) | - | 60 | - | degree |
Electrical characteristics
Operating parameters | Minimum value | Typical values | Maximum value | Unit |
Operating voltage (VCC) | 4.5 | 5.0 | 6 | V |
Operating current (ICC) | 90 | 93 | 100 | mA |
Operating I\O Inflow/Output Current (IIO) | - | 8 | 20 | mA |
Operating temperature (TOP) | -20 | - | +60 | ℃ |
Storage temperature (TST) | -40 | - | +80 | ℃ |
RF Performance
Launching parameters | ||||
Operating frequency (fTX) | 24.0 | - | 24.25 | GHz |
Transmitted power (Pout) | - | - | 6 | dBm |
Part List
MR24BSD1 24GHz mmWave Radar Module | x1 |
ECCN/HTS
HSCODE | 8526109090 |
UPC |
