Motor Shield V2.0

$32.18 AUD Inc. GST


SKU SS105030001

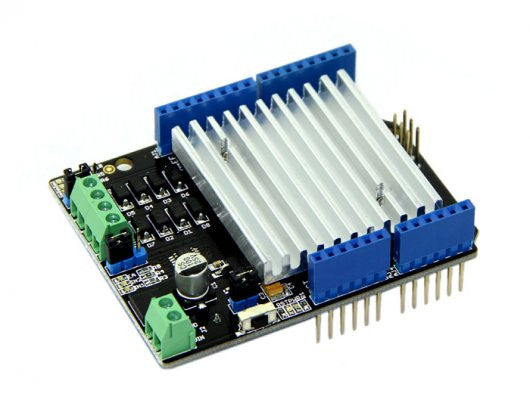

The Motor Shield is a driver module for motors that allows you to use Arduino to control the working speed and direction of the motor. Based on the Dual Full-Bridge Drive Chip L298, it is able to drive two DC motors or a step motor. The Motor Shield can either be powered directly by Arduino or by an external 5V~15V power supply via the DC jack. This module can be used for the development of micro robots and intelligent vehicles, etc.

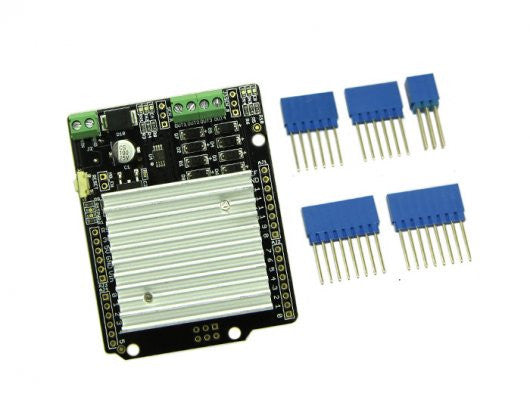

Note: Headers of this product is shipped unsoldered.
Feature
  • Arduino/Seeeduino compatible
  • Standardized shape design
  • LED enable indicator
  • LED rotation direction indicator
  • Overcurrent turn-off
Documents
Please visit wiki  page for more info about this product.
