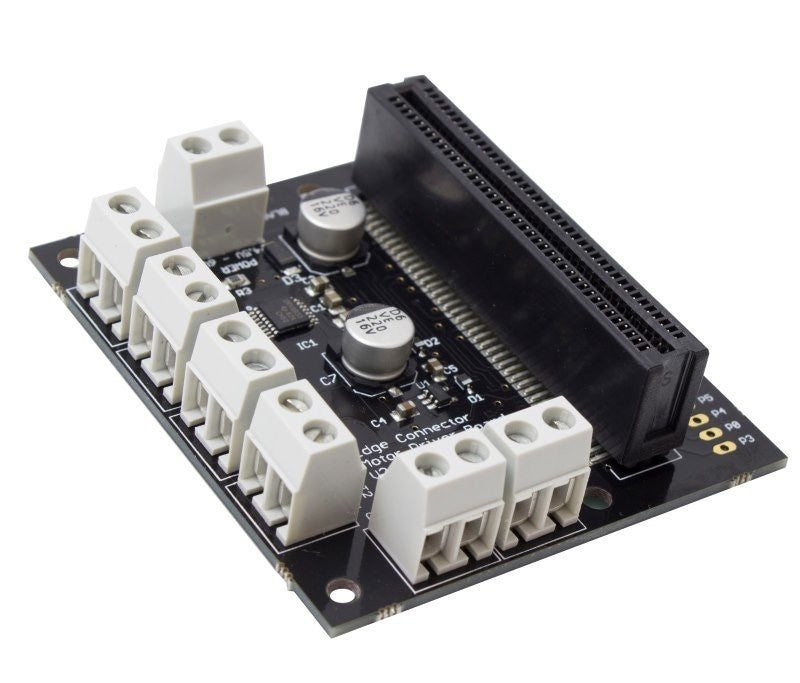

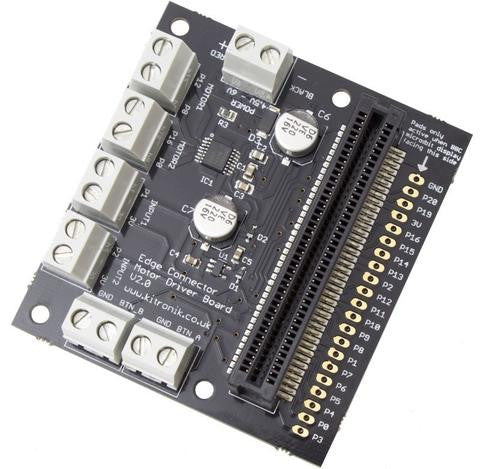

This board provides a simple way to add motor driving capability to a BBC micro:bit. It allows two motors to be driven with full forward, reverse & stop control. It has terminal blocks to connect four input devices and a regulated 3V supply is fed in to the 80 way connector to power the inserted BBC micro:bit.
This motor driver board for the BBC micro:bit allows two motors to be drive
n simultaneously with forward, reverse & stop control, making it ideal for designs such as buggies (see below).
It includes an integrated Edge Connector slot for your BBC micro:bit to easily slot into. It also features external connections to the Buttons A and B inputs. This allows additional switches to be connected to the motor driver board and the state of these can then be read by the BBC micro:bit.
The board has terminal blocks to connect four input devices and a regulated 3V supply is fed in to the 80 way connector to power the inserted BBC micro:bit.
You can drive up to two motors simultaneously using your BBC micro:bit.
- Drive 2 motors with full forward, reverse and stop control.
- Terminal blocks for easy connection of motors and inputs.
- 4 inputs (2 analogue inputs and 2 provide external connections to Buttons A and B as inputs).
- Includes Edge Connector for the BBC micro:bit to slot into.
- Provide regulated power to the BBC micro:bit.
- 1 x Edge Connector Motor Driver Board for the BBC micro:bit.
- Length: 67mm.
- Width: 53mm.
- Height: 18mm.
- 1 x BBC micro:bit.
- 4.5 - 6V Power Supply.
- 2 x DC Motors (that are compatible with the power supply used).
- 1 x Flat-headed Terminal Screwdriver.
