The mmWave Human Detection Sensor Kit is powered by Seeed Studio XIAO ESP32C3 with WiFi/BLE connectivity. It offers precise human detection via mmWave sensors and additional features by seamlessly Grove interfaces. This kit can be easily set up for Home Assistant within 1-2 minutes, coupled with convenient wireless Over-The-Air (OTA) updates, Enabling extensive versatility with replaceable mmWave sensors.
Feature
- Precision Human Detection: The onboard mmWave sensor, based on FMCW principle, offers accurate privacy-focused human detection.
- Flexible Customization with Grove Connectors: The Onboard Human Presence sensor is replaceable with other Seeed's mmWave series for heartbeat detection, fall detection, etc; Enable additional functionality with 400+ optional Grove sensors.
- Easy Setup, Wireless Updates: No-Code setup for Home Assistant in 1-2 minutes, with wireless Over-The-Air (OTA) updates.
- Seamless Connectivity: Powered by XIAO ESP32C3, supporting WiFi/BLE and compatible with smart home systems
- Scalable Solution: Tailor to your needs with available OEM/ODM services for scalability.
Description

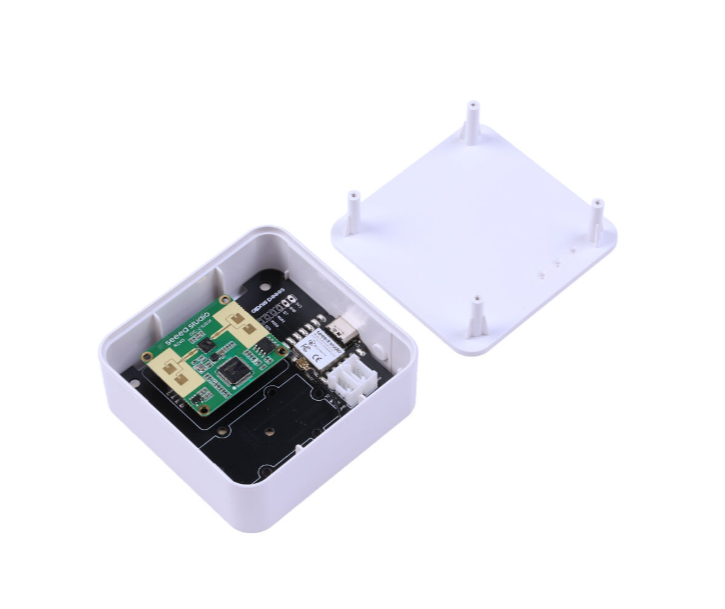

Introducing our ready-to-use, open-source mmWave Human Detection Sensor Kit, driven by the Seeed Studio XIAO ESP32C3. This kit comes with an onboard 24GHz mmWave Human Static Presence Module Lite, which can be swapped out for any mmWave series sensor from Seeed. Additionally, we've provided two reserved Grove interfaces (Analog, IIC) that enable connectivity with over 400 different Grove modules, expanding the kit's capabilities extensively.
This kit allows wireless software updates via Over-The-Air(OTA). Users can upgrade with a simple click on the mobile or computer, eliminating the need for physical connections. Moreover, We've also introduced a No-Code approach to set up your Home Assistant which involves only a few easy steps, completing installation in 1 to 2 minutes without any coding complexities.
The onboard 24GHz mmWave Sensor - Human Static Presence Module Lite is a high-sensitivity mmwave radar sensor based on the FMCW principle. It detects human presence, motion, direction, object speed, and distance. Customizable parameters allow you to adjust range, sensitivity, thresholds, and more. It also offers open functions for environment noise and detection ranges, enabling custom object movement detection radar setups for diverse scenarios. Users have the flexibility to replace it with the whole mmWave series at Seeed.
- MR24BSD1 24GHz mmWave Sensor - Respiratory Sleep Detection Module
- MR60BHA1 60GHz mmWave Module - Respiratory Heartbeat Detection
- MR60FDA1 60GHz mmWave Sensor - Fall Detection Pro Module
Driven by XIAO ESP32C3, it supports both Wi-Fi and BLE wireless connectivities, while supporting communication over 100m with a U.FL antenna. There are 400 KB SRAM & 4 MB Flash on the highly-integrated ESP32-C3 chip, allowing for more programming space, and bringing more possibilities to the IoT control scenarios.
This kit features two reserved Grove interfaces (Analog, IIC) and a placement sized for 2x2 or 2x4 cm Grove modules. Users can connect over 400 optional Grove sensors for added functionalities, such as detecting indoor air quality with a Multichannel Gas Sensor. Click to explore the Grove Sensor family and customize your own Smart Home system.
Application
- Smart Home Automation: Enhance lighting, HVAC, and security systems based on human presence.
- Building Security: Detect intrusions and trigger alerts for heightened security.
- Healthcare Monitoring: Monitor patient movement and aid in fall detection.
- Automatic Doors: Enable doors to open as people approach.
- Elderly Care: Monitor the well-being of the elderly and provide timely assistance.
Hardware Overview
Part List
Installation kit (including 1 Phillips screwdriver, 3 copper posts, 6 screws, 2 pieces of round 3M double-sided tape) | ×1 |
White USB Type-C data cable | x1 |

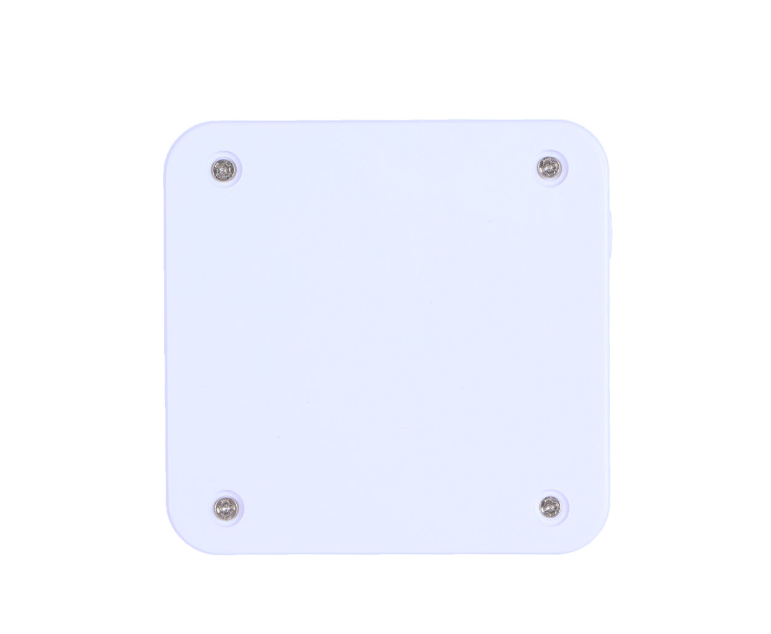

White square shell products | x1 |
ECCN/HTS
| HSCODE | 8526109090 |
| USHSCODE | 8526921000 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
