Miniature Slip Ring - 12mm diameter, 6 wires, max 240V @ 2A

$28.88 AUD Inc. GST


SKU ADA775
Ships in 3 to 10 days 50 units

increment
decrement
decrement increment

With a slip ring assembly, your electronics can now twist and turn safely. Add wheel encoders, 360 degree sensors, rotating LEDs, rotors and more! We've seen a lot of people DIY slip ring's out of desperation but no longer, simply pick up one of these to solve any rotation needs you have.

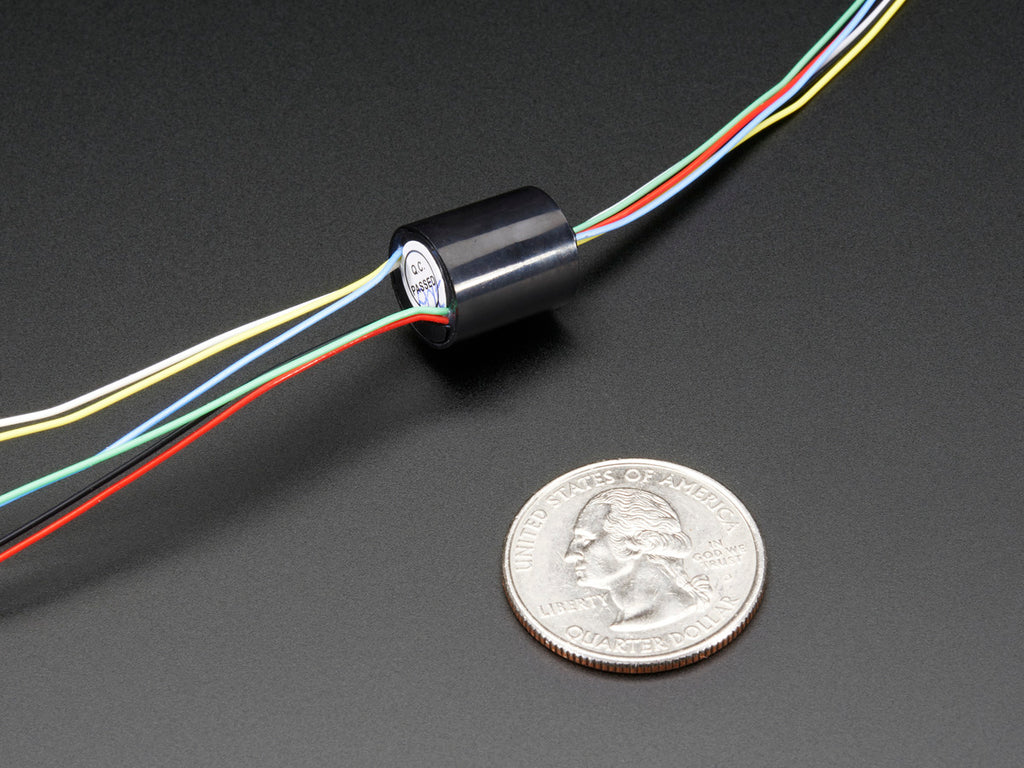

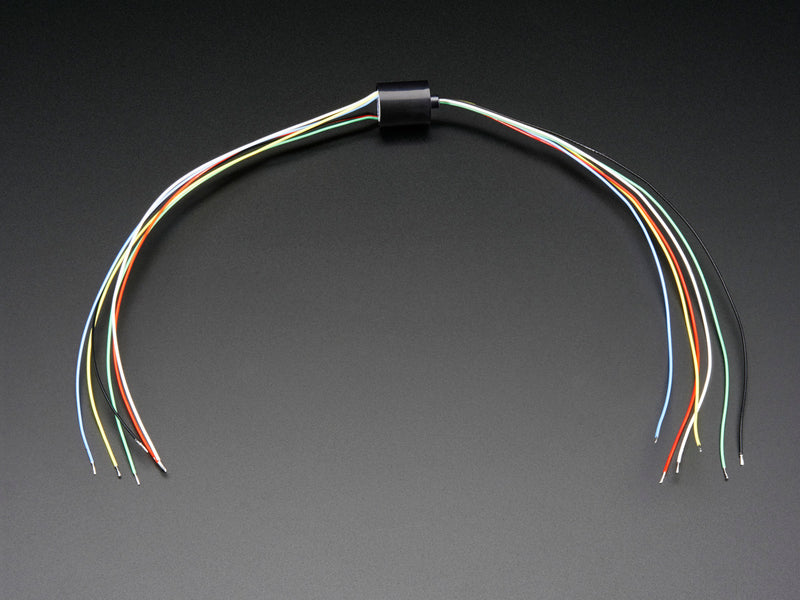

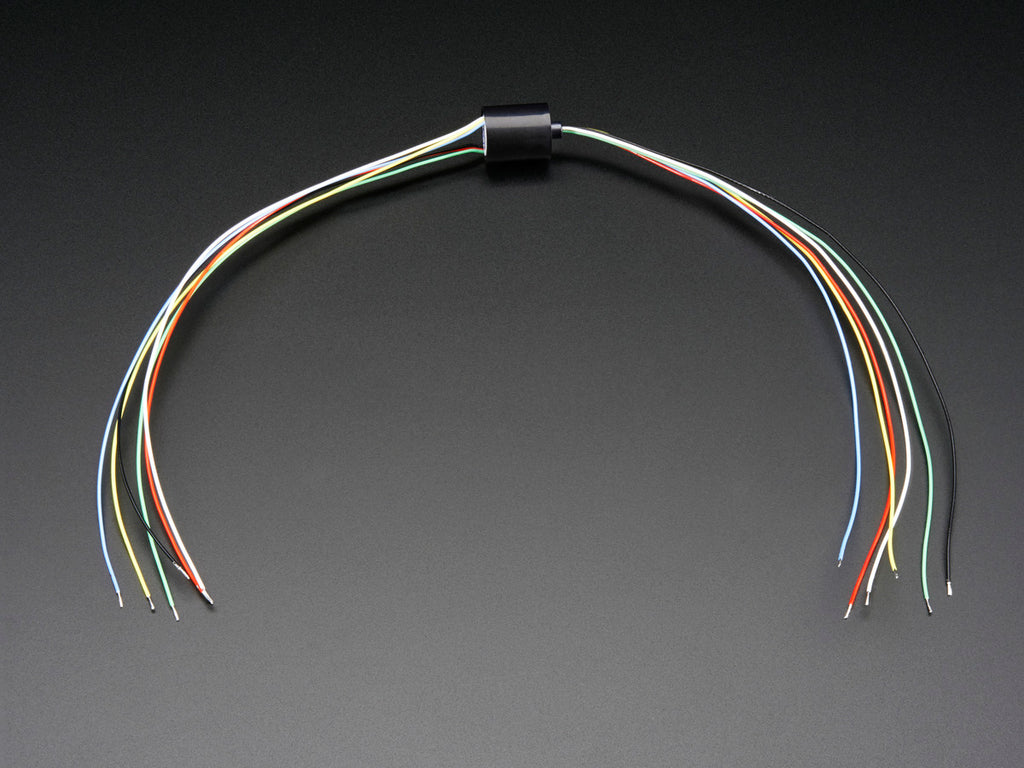

Inside the miniature plastic tube is a gold plated slip ring for 6 wires. There are six color coded wire sets made of 26 AWG and no matter how you twist the assembly, they will remain in continuity. Each of the wire sets can carry up to 2A at up to 240VAC or 240VDC. This model is the tiniest slip ring you can get, a mere 17mm long, 12mm diameter. Rated to rotate up to 300 RPM (but you can probably go faster if you don't mind a reduced life and/or noise).

Technical Details

  • Rated voltage: 240VAC/240VDC
  • Rated current: 2 Amp
  • 6 x 6" long 26 AWG wires

Check out the datasheet for the SRC012C-6 for all specifications
