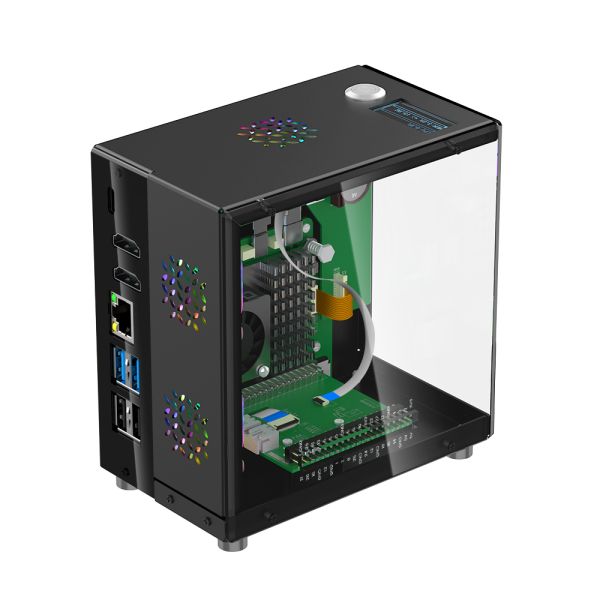

Mini PC Case With 1.3” OLED Screen For Raspberry Pi 5

[Mini PC case] Designed for Raspberry Pi 5 and Jetson Orin Nano, equipped with 3 fans, with first-class cooling function.
[Compact design] Maximum functional integration with minimal space occupation.
[1.3-inch OLED screen] Instant display of system status, operation information, etc.
[Native interface] Retains the original USB, HDMI, Ethernet and other interfaces of the single-board computer to ensure that users can make full use of them
[Expansion interface] For Raspberry Pi 5, the chassis introduces a PCIe M.2 socket, providing users with additional storage expansion options
[One-stop solution] Integrates multiple functional components, users do not need to purchase and assemble additional components.

What is a Small PC Case?

A small PC case, often referred to as a Small Form Factor (SFF) case, is designed to be compact and space-efficient while still providing the necessary functionality to house a computer's components. These cases are ideal for applications where space is limited, such as home theater PCs (HTPCs), portable gaming rigs, and other environments where a small footprint is essential.

Introducing the Elecrow Mini PC Case: A Multifunctional, DIY Solution for Raspberry Pi.

This Mini PC case is a versatile, DIY enclosure solution designed for Raspberry Pi 5 and Jetson Orin Nano single-board computers. The design concept of this chassis shell is to provide users with an integrated, high-performance, and easy-to-expand hardware platform.

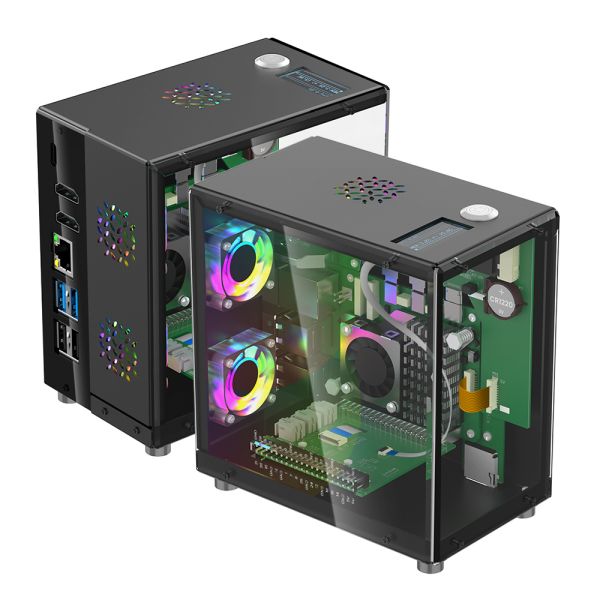

*Carefully designed internal structure:  The same chassis shape can perfectly adapt to both Raspberry Pi 5 and Jetson Orin Nano single-board computers. Users can flexibly choose according to project requirements.

*Compact Design: The compact design can achieve maximum functional integration with minimal space occupation. At the same time, the cooling fan can ensure the required temperature for the motherboard to operate.

*The built-in 1.3-inch OLED screen can display the system operation status, operation information and other content in real-time.

*The chassis retains the original interface. In addition to the GPIO adapter board, the chassis also retains the original USB, HDMI, Ethernet and other interfaces of the single-board computer to ensure that users can fully utilize the motherboard's connection capabilities to meet diverse needs.

*Supports additional storage expansion. For Raspberry Pi 5, the PCIe M.2 socket is introduced inside the chassis, providing users with additional storage expansion options, supporting solid-state 2230, 2242, 2260, 2280, and conveniently connecting high-speed solid-state drives to meet large-capacity storage needs.

*One-stop solution. The chassis integrates multiple functional components, and users do not need to purchase and assemble additional accessories such as radiators, screens, adapters, etc., saving time and cost.

The Mini PC case is more than just a compact housing for your single-board computer. It's a comprehensive solution that combines protection, functionality, and ease of use. Whether you're a developer working on a new project, a hobbyist experimenting with new technologies, or a professional requiring a reliable and efficient setup, the Mini PC case is designed to meet your needs.

Self-developed by Elecrow with exclusive design.

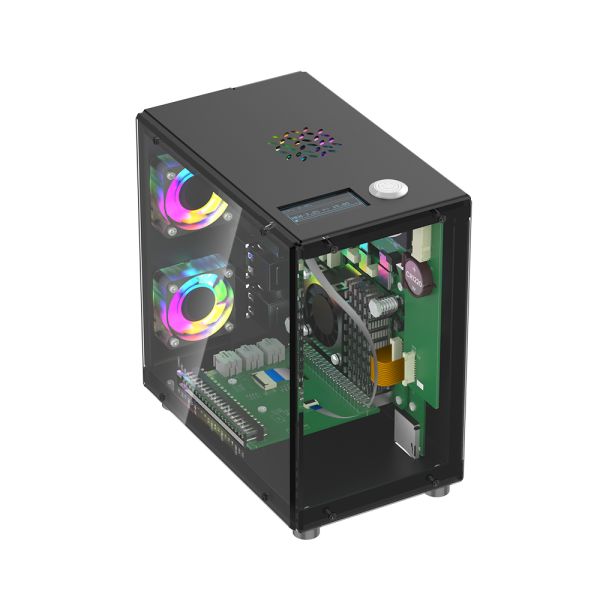

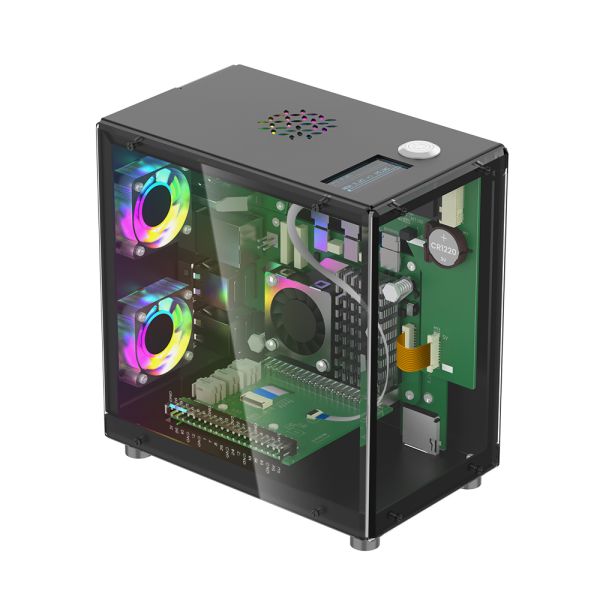

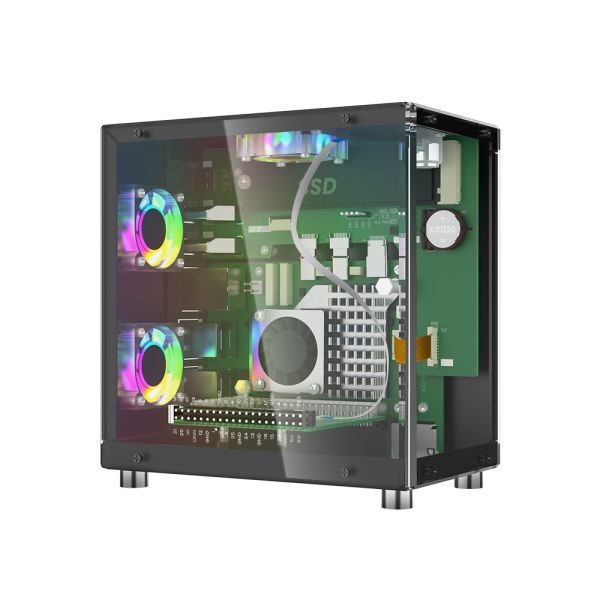

Three RGB Fans-Masterful cooling ability

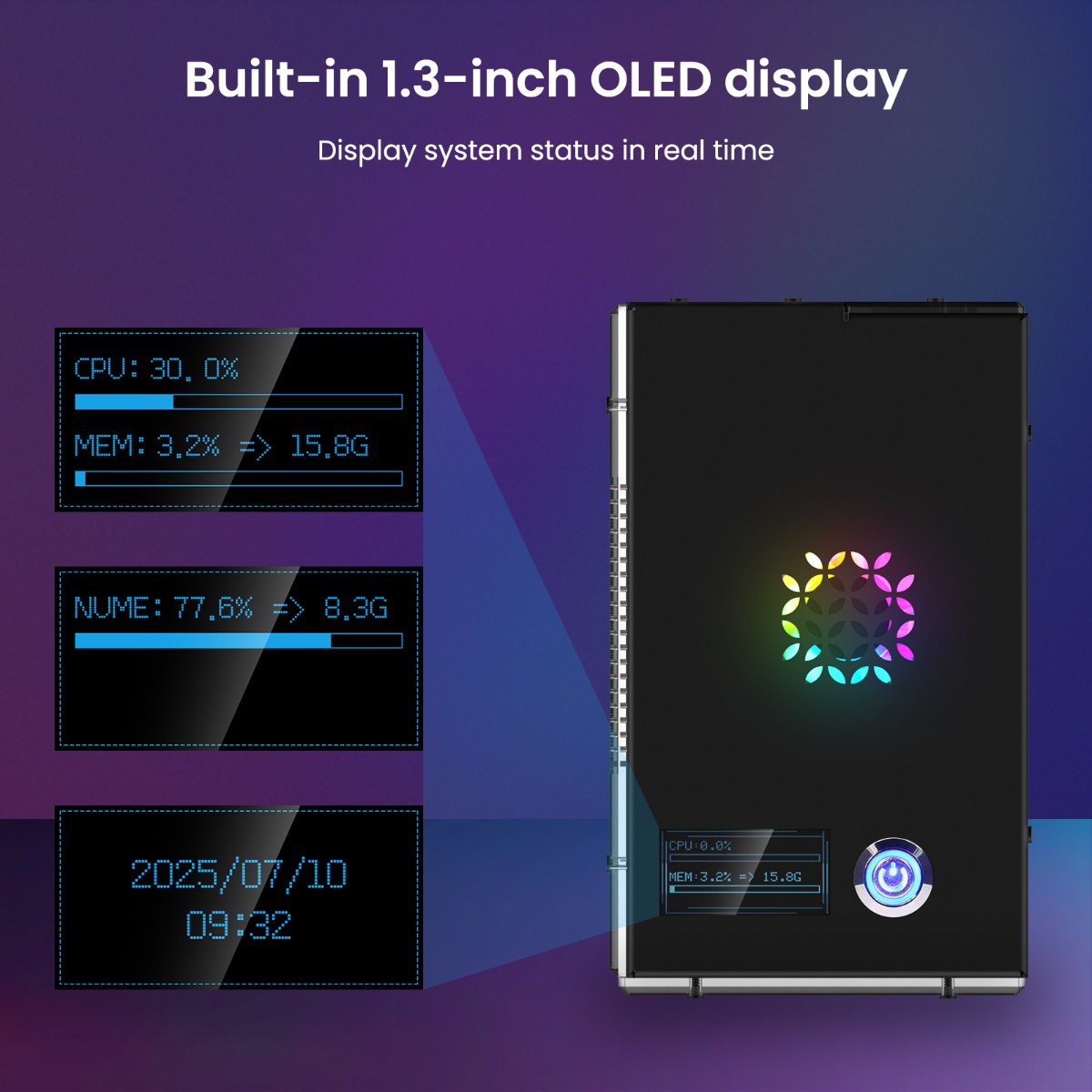

Built-in 1.3-inch OLED display

Rich interface to meet diverse needs

Feature

• Dual-board compatibility: The chassis can perfectly adapt to two mainstream single-board computers, Raspberry Pi 5 and Jetson Orin Nano. Users can flexibly choose according to project requirements;
• Compact design: The compact design can achieve maximum functional integration with minimal space occupation, and add cooling fans to ensure stable operation of the board
• Cooling design: The chassis has 3 fans to ensure stability during operation
• Built-in OLED screen: The chassis has a built-in 1.3-inch OLED screen, which can display system status, operation information and other content in real time, bringing an intuitive experience to users,
• Rich interfaces: The chassis retains the original USB, HDMI, Ethernet and other interfaces of the single-board computer. At the same time, for Raspberry Pi 5, the chassis has introduced a PCIe M.2 socket, providing users with additional storage expansion options
• One-stop solution: It integrates a variety of functional components, and users do not need to purchase and assemble additional accessories such as radiators, screens, adapters, etc., saving time and cost

Target Group

DIY enthusiasts: users who like to assemble and customize computers by themselves, and they pursue personalization and maximum performance.

Developers: They need a stable and reliable development environment, and the chassis can provide the necessary interface expansion and heat dissipation.

Specification

Package List

• 1x Raspberry Pi/Jetson Nano Case (Optional)
• 1x PCBA Board
• 3x Cooling Fan
• 1x Heat Sink (Only for Raspberry Pi)
• 1x User Manual
