Mini GSM/Cellular Quad-Band Antenna - 2dBi SMA Plug

Save 8% Regular price A$13.73
Price:
Sale price A$12.69   Inc. GST
SKU:
ADA1859
10 units Ships in 24 hours
50 units Ships in 7 to 10 days

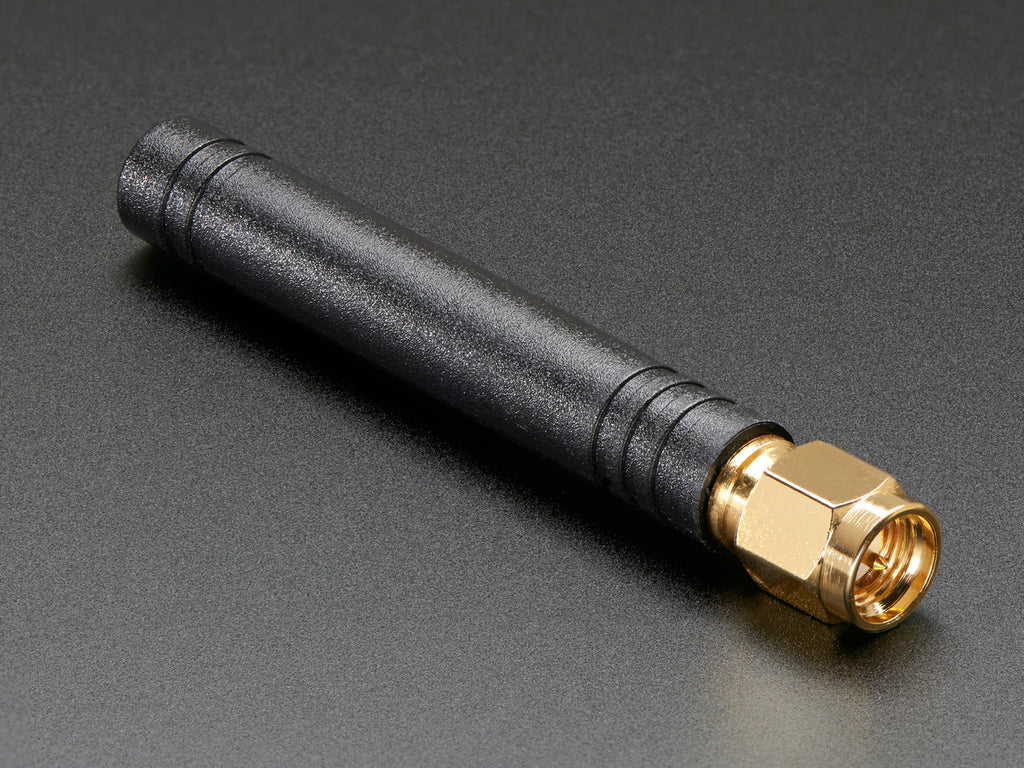

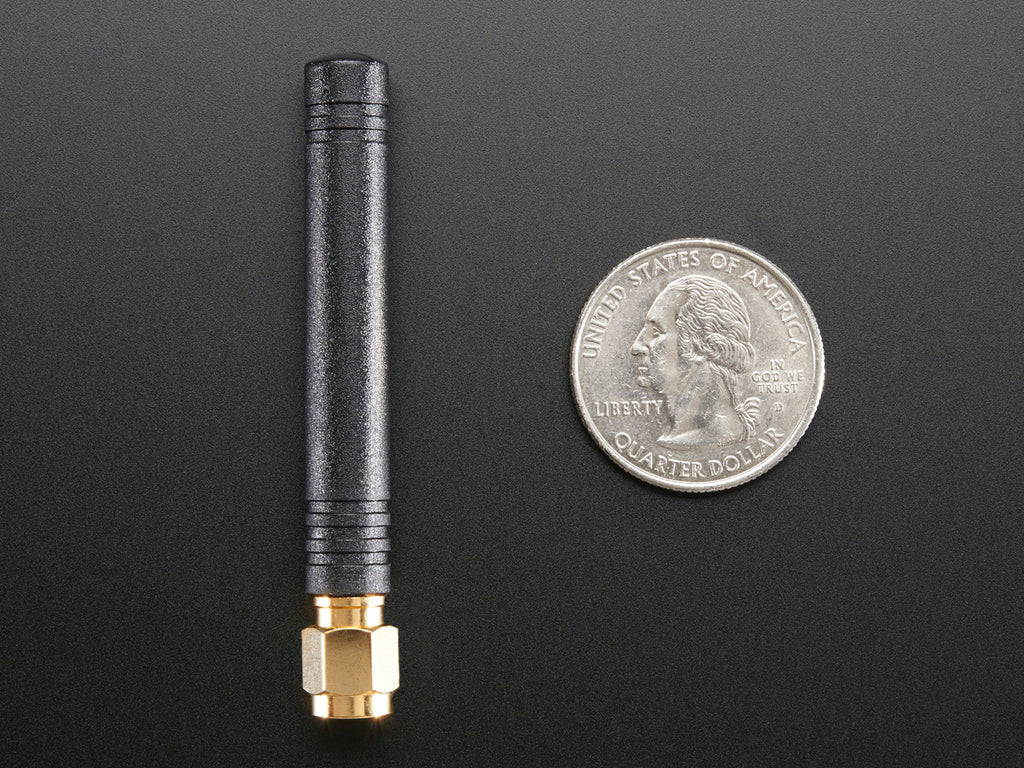

This 2.4"/61mm long antenna has 2dBi of gain and 50Ω impedance so it will work fantastically with just about any 850/900/1800/1900/2100 wireless receiver/transmitter such as any Cellular or GSM/GPRS device.

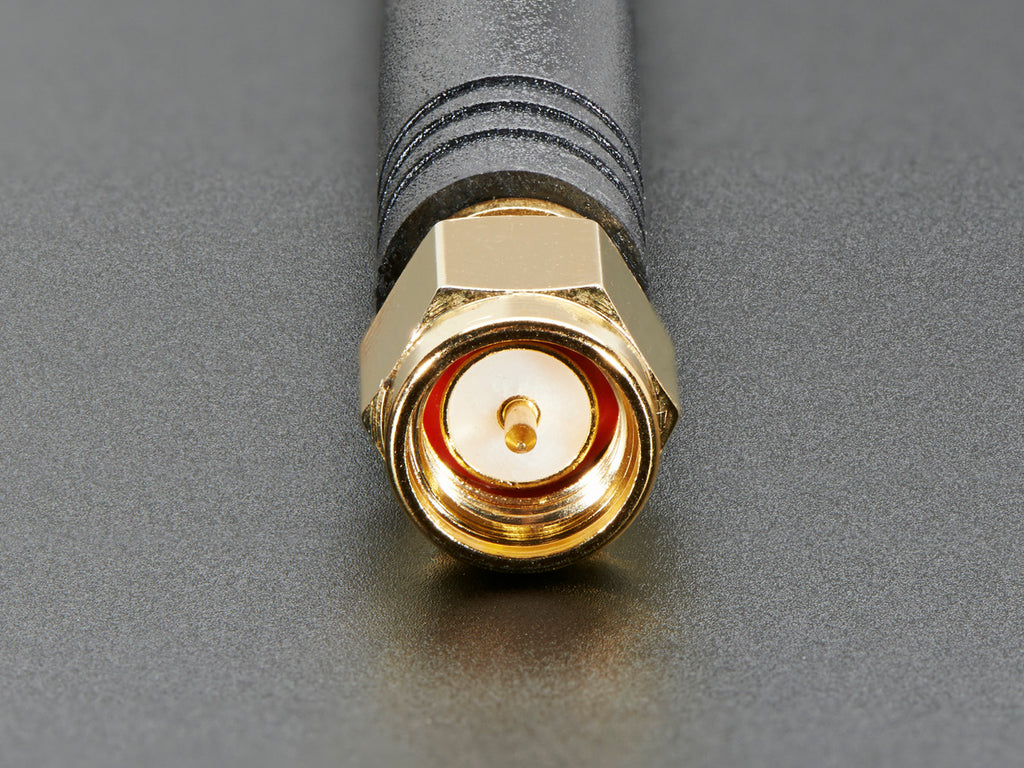

Antenna comes with a SMA connector, which is the most common type you'll see for Cellular development boards. If you need to connect this to an RP-SMA connector for some reason, use this handy adapter and if you need to connect to a u.FL connector, just pop on this adapter.



Technical Details

Specifications:

  • Datasheet
  • Frequency: 850/900/1800/1900/2100 MHz
  • Gain: 2 dBi
  • V.S.W.R.: <=2:1
  • Polarization: Vertical
  • Connector: SMA Male (Option)
  • Impedance: 50Ω
  • Operation Temperature: -20ºC ~ 60ºC
  • Storage Temperature: -30ºC ~ 75ºC




Dimensions:



    RoHS 2 2011 65 EU Compliant
    RoHS 2 2015 863 EU Compliant
