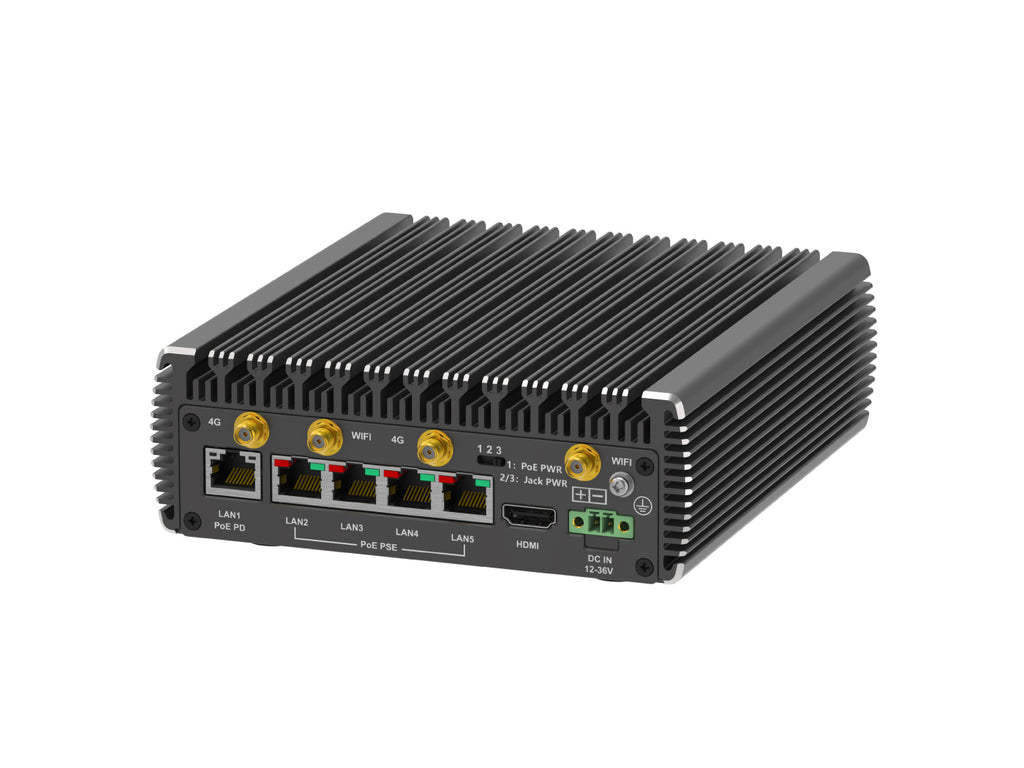

Mini AI Computer T506S is an edge AI platform powered by Jetson Xavier NX mounted with 5x PoE Gigabit RJ45 ports. It comes with 128GB SSD and storage expandability, supporting WiFi & 4G/5G wireless capabilities and GPS navigation, building around a rich set of IOs, designed with fanless passive heat dissipation. The full system makes it an ideal intelligent industrial instrument and autonomous machine.
Features
Industrial powerful edge AI platform: Powered by Jetson Xavier NX 8GB brings up to 21 TOPS AI performance. Fanless compact system enclosure by aluminum alloy with IP55 grade, supplied through 12-36V wide voltage.
Hybrid network access: 5x PoE RJ45 Gigabit network ports including 4x PSE & 1xPD, support Wi-Fi (surface mounted), 5G(M.2 E Key), 4G(mini PCIe) module configuration and GPS navigation(modules not included)
Rich I/Os: 4x USB 3.0, 1x RS232/485, 1x M.2 KEY M, 1xM.2 E Key, mini PCIe, 1x CAN, 4x GPIO,1x I2C,1x TF Slot
Perfect for local video analytics with expandable storage: onboard 128GB SSD with NVMe socket storage expandability, along with edge AI-enabled video analytics suitable for NVR(Network Video Recorder)
Simplify development: pre-installed JetPack 4.6: support the entire Jetson software stack and various developer tools for building fast and robust AI applications from Seeed Edge AI ecosystem partners
Cetifications: FCC, CE, RoHS
Description
Mini AI Computer T506S is an edge AI platform, mounted by 5x PoE Gigabit RJ45 ports, equipped with enhanced ability of video processing by Jetson Xavier NX 8GB, carrying 128GB SSD along with NVMe storage expandability, which represents an ideal solution for NVR(Network Video Recorder), suitable for transportation hub operation, or other monitoring scenarios.
Mini AI Computer T506S supports WiFi(surface mounted), 4G(mini PCIe), 5G(M.2 E Key) wireless communications, building around a rich set of IOs, including an available CAN bus, as well as 4x GPIO, 1x RS232/485, 1x I2C, 1x M.2 KEY M,1x TF Slot, 4x USB 3.0, satisfied for multiple industrial protocols and extensive connectors, combing with low power efficiency as 30W, all of which make it a full-featured instrument for stationary or mobile, wired or wireless communication between devices at the edge of your business.
This fanless industrial PC is engineered with super strong and light aluminum alloy, presented IP55 industrial quality, which comes with a wide voltage power supply as it supports 12-36V power in. Combing with pre-installed Jetpack 4.6, it is ready to gather and conquer the traffic management, and autonomous machines demand.
Compare Mini AI Computer T506S and Jetson Xavier NX Dev Kit
|
Mini AI Computer T506S |
|
Module |
NVIDIA JETSON XAVIER NX | |
AI Performance |
21 TOPs(INT8) | |
CPU |
6-core 64-bit CPU, NVIDIA Carmel ARMv8.2 | |
GPU |
384-core NVIDIA Volta GPU | |
Memory |
8 GB 128-bit LPDDR4x 59.7GB/s | |
Storage |
1x M.2 Key M NVMe 2280 1xTF Slot |
MicroSD (Card not included) |
Display |
1*HDMI Type A |
1*HDMI Type A; 1*DP |
Video decoder |
2x 4K @ 60 | 4x 4K @ 30 | 12x 1080p @ 60 | 32x 1080p @ 30 (H.265) 2x 4K @ 30 | 6x 1080p @ 60 | 16x 1080p @ 30 (H.264) |
2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) |
Gigabit Ethernet |
5×RJ45 Gigabit Network port (4xPoE(PSE) GbE Ports, 1xPoE(PD) GbE Port) |
1*RJ45 Gigabit Ethernet Connector (10/100/1000) |
OS |
Pre-installed JetPack 4.6 |
Without OS installed |
Wifi/BLE |
Surface Mounted - support WiFi (modules not included) |
Pre-installed M.2 E Wifi & BLE module |
Network |
mini PCIe - support 4G (modules not included) M.2 E Key - support 5G (modules not included) |
- |
GPS |
Support GPS (modules not included) |
- |
USB |
4 * USB 3.0 Type A Connector; 1 * Micro-USB port for Device mode; | |
Industrial Interfaces |
1x CAN 2.0b With CAN chip |
1x CAN |
1x I2C |
I2C | |
4xGPIO |
- | |
1x RS232 |
- | |
1x RS485 |
- | |
Camera |
- |
2xCSI |
SPI BUS |
- |
1X SPI Bus(+3.3V Level) |
RTC |
1*RTC Connector for Rechargeable Battery |
- |
FAN |
1* FAN connector | |
Multifunctional port |
- |
1* 40-Pin header |
LED |
2x LED STATE |
- |
Key
|
Reset KEY Recovery KEY |
|
Power |
12-36V DC |
DC Jack 19V 4.74A (MAX 90W) |
Mechanical |
155mm × 165mm × 52.5mm 1.5Kg -20°C to 65°C 10%-90% non-condensing
|
130mm x120mm x 50mm |
Application
Smart cities: Traffic Management, Parking Monitoring, Transportation Hub Operation, NVR platforms
Industrial: Automation, Workplace Safety, Preventive Maintenance
Retail: Intelligent Store analytics, Digital signage
Health Care: Mask Detection
Seeed is a reseller of NVIDIA embedded systems and a preferred partner of the NVIDIA Jetson ecosystem for edge AI. Explore more carrier boards, full system devices, customization services, use cases, and developer tools at Seeed Jetson Ecosystem!
Hardware overview
Part List
Mini AI Computer T506S |
x1 |
DIO Extension Plugs |
x1 |
Mounting Bracket |
x1 |
19V Power Adapter(without power cord) |
x1 |
Power Adapter Cable |
x1 |
FAQ
Can I use Wi-Fi and 4G/5G at the same time?
Currently, Mini AI Computer T506S supports Wi-Fi + 4G or Wi-Fi + 5G working at the same time. But wireless communication 4G / 5G can't be working at the same time.
ECCN/HTS
| HSCODE | 8471419000 |
| USHSCODE | 8471490000 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
