Description:

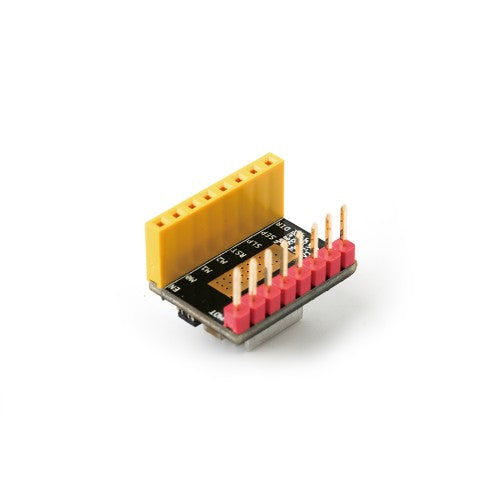

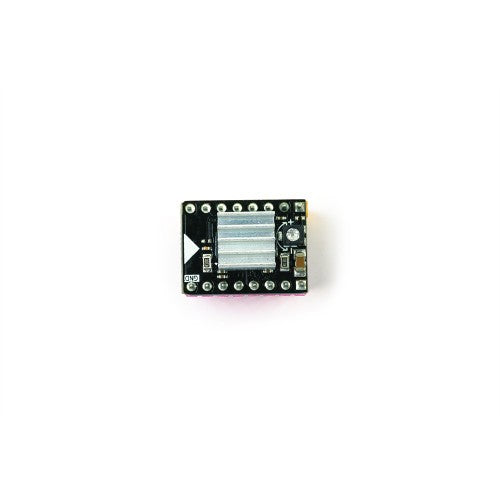

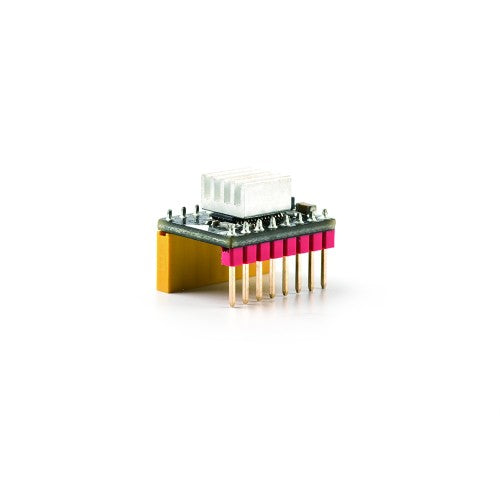

This module is designed to drive stepper motors. It uses DRV8825 chip and has a maximum driving current of 2.5A. The DRV8825 is a complete micro-stepping motor driver with built-in translator for easy operation. It is designed to operate bipolar stepper motors in full, 1/2, 1/4, 1/8/ 1/16, or 1/32 step modes. We add an on-board potentiometer, so you can change the current of motor easily.
Features:
? Compatible with 4 wire bi-polar stepper motors;
? A potentiometer to control the current of the stepper motor;

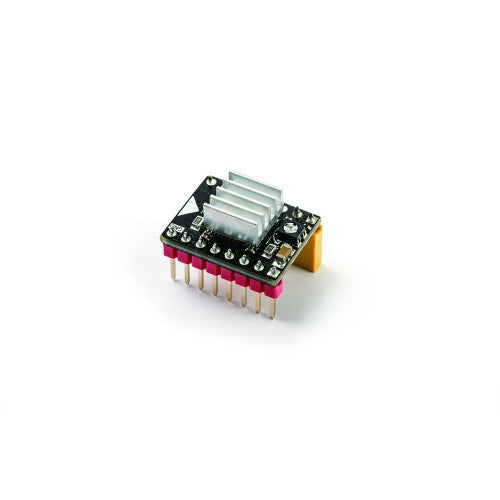

? A on board heat sink helping heat dissipation;
? Capable of driving one stepper motor (green interface);
? Color-code male and female pins ensure connecting with MegaPi correctly;
? Small size for easy connecting with MegaPi.
Specification:
? Motor driver: DRV8825
? Output current：1.75A (with proper heatsinking at 24 V and 25°C）
? Max current: 2.5A (pay attention to heat dissipation)
? Drive voltage: 8.2V-45V
? Note: MegaPi max supply voltage 12V
? Logic voltage: 5V
? Dimensions: 1.5cm x 2.0cm
* Green plug 3.96-4P is included in the MegaPi Stepper Motor Driver
User Guide:
? MegaPi: http://learn.makeblock.com/megapi/
? Arduino IDE: http://learn.makeblock.com/learning-arduino/
? Makeblock HD App: http://learn.makeblock.com/makeblock-app-hd/
