Math & Automatic Touch Keyboard for micro:bit (V1.0)

Sale price A$51.04   Inc. GST
52 units Ships in 7 to 10 days

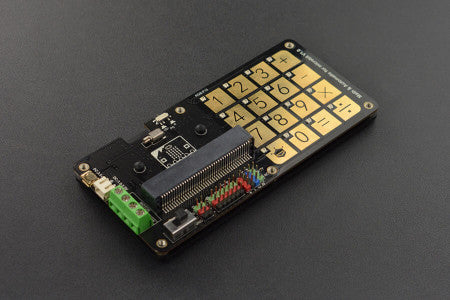

This is a Math & Automatic expansion board for micro:bit. Easy to use, and suitable for a wide range of applications. We designed this board for two sorts of application scenarios: math game and automation control. The 16 programmable touch keys and RGB LEDs on the board offers rich function and flexible input and output. Besides, the board has 1 vibration motor, 1 buzzer, 2 motor ports, 2 servo ports and 9 expansion ports, which lays a foundation for using in automation controlling application.


Math Game:

  • 1.Calculator
  • 2.Quick Calculation
  • 3.Math Reasoning Game
  • 4.Lucky number
  • 5.Twenty-One
  • 6.Whack a Mole
  • 7.The mystery of Dazzling Numbers

Automatic Control:

  • 1.RGB Waterfall Light
  • 2.Touch Music
  • 3.Password Lock
  • 4.Motor Control System
  • 5.Touch Remote Wireless Handle
  • 6. Countdown Timer
  • 7. Natural wind Electric Fan
  • 8. NFC Password Entrance Guard
  • 9. 2. 4G Multiplex Communication System


  • Power Input: 3.5~5.5V DC
  • Touch key*16
  • RGB LED *16
  • Buzzer *1
  • Buzzer Switch *1
  • Motor Port *2
  • Servo Port *2
  • IIC *2
  • UART *1
  • GPIO: P0, P1, P2, P8, P12, P16
  • Program Platform: Mind+makecode
  • Size: 136mm×65mm/5.35×2.56"


  • Product wiki
  • Product Includes:

    • [MBT0016] Math & Automatic for micro:bit (V1.0) x 1
