Make A Robot Kit (MARK) - for hands on AI learning

Make A Robot Kit (MARK) - for hands on AI learning

$387.45 AUD Inc. GST


SKU SS114992076
Ships in 20 to 30 days 358 units

increment
decrement
decrement increment

AI robot for education - MARK is a perfect robot that you can use to learn or teach coding, robotics, electronics and Artificial intelligence (AI).




Features

  • Make a self-driving car
  • Interactive & engaging through AI recognition
  • On-device model training
  • Hands-on from construction to coding
  • Supports Micropython
  • Customizable, extendable & open-source
  • Coursework ready to use in classroom or homeschooling!!!

Description

Make A Self Driving Car

Implement your self-driving, advanced map & story-based projects or use in robotics competitions.

Interactive & Engaging through AI Recognition

Mark comes pre-loaded with functionality to recognize colors, shapes, and objects within these categories. But of course, you should train your own custom models! We provide a colab notebook to guide you through this process. Scroll down to check out a video of MARK interacting with Pet animals.

On Device Model Training

Simple custom classifier models can be trained on MARK through data collection via the onboard camera, automatic data processing & model training by the CyberEye (brains of the MARK), and model deployment directly on MARK which can be saved for reuse on SD card.

Interactive with the external world

Aside from the obvious camera sensor, there is an ultrasonic sensor included for collision avoidance, a button which you can program to change modes and an electromagnet which gives MARK a "pick up" function. Simply attach metallic stickers (included in pack) on the back of an image card.

Hands-On from Construction to Coding

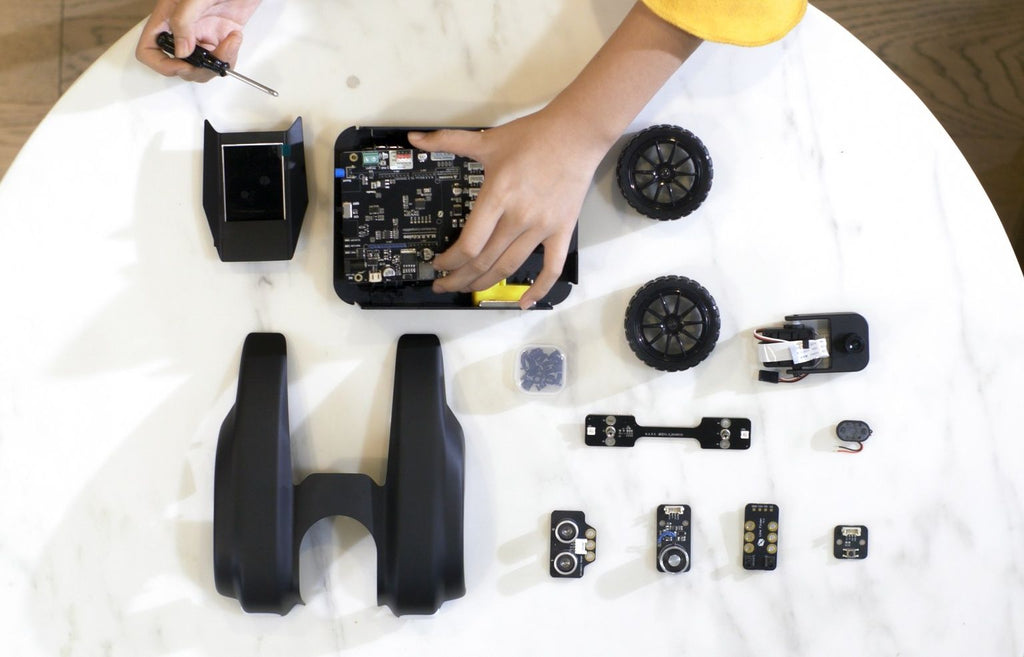

For a Hands-on construction experience, MARK will come disassembled in parts with the tools you need to make your robot.

Interface board - Markduino

Included are stepper motor & spare servo ports which you could utilize to extend MARK as a robot with a grabber or conveyor functionality. The Markduino also includes spare Digital, Analog, and I2C ports, into which you can easily plug & play some compatible Grove series sensors. Read more about grove here. Those familiar with Arduino will notice that the markduino pinout fits, so projects can be implemented with this controller too.

Supported with Coursework and Graphical Coding Software

  1. 16 Lessons coursework on AI
  2. 18 Lessons coursework on ML

Accessible Yet Intelligent

We want AI learning to be accessible to those from a variety of backgrounds so you'll be able to code MARK graphically by dragging and dropping code blocks.

Codecraft is a graphical programming software based on Scratch 3.0, developed by us which is available on desktop & in-browser.

Supports Micropython coding

Customizable, Extendable & Open Source

Extend with our extension packs (available soon), or DIY. 3D print your own cover to customize MARK into whatever color you like. Add structural modifications onto the Chassis which includes multiple attachment points.

This kit is suitable for:

  • Maker teachers
  • High school students
  • Homeschooling educators
  • STEM camps
  • AI experimenters
  • AI & robotics learners
Specifications
  • Power Supply :6 x AA batteries
  • Data connection: USB C
  • Display: 2.4" color LCD
  • Storage: micro SD slot
  • Connectivity via onboard ESP32: Wifi 2.4G, Bluetooth 4.2
  • CPU: RISC-V Dual Core 64 bit with FPU
  • KPU: CNN Hardware accelerator 0.25 TOPS @ 0.3W, 400MHz; overclock to 800MHz, 0.5 TOPS
  • Static RAM 8MB Total: 6MB SRAM, 2MB AI SRAM
  • Image Recognition: QVGA@60fps VGA@30fps or overclocked 60fps

Part List
  • 1 x Project Map
  • 1 x Quick Start Guide
  • 16 x Recognition cards
  • 3 x Card Support
  • 1 x Chassis Cover
  • 1 x M.A.R.Kduino
  • 1 x Headlight Board
  • 1 x Speaker
  • 1 x Ultrasonic Sensor
  • 1 x Electromagnet
  • 1 x Line Follower
  • 1 x Button
  • 1 x Chassis
  • 1 x Pan-Tilt Camera
  • 2 x Tyre
  • 1 x Universal Wheel
  • 1 x Line Follower Stand
  • 1 x cyberEye & 2.4" Color LCD
  • 1 x Philips Head
  • 1 x Flat Head Screwdriver
  • 14 x Magnetic Sticker
  • 3 x 20cm Grove Cable
  • 3 x 10cm Grove Cable
  • 1 x 1m Type-C USB cable
  • 6 x AA Battery
  • 1 x Hardware Box
  • 20 x M3x 8mm Screws
  • 10 x Spacer
