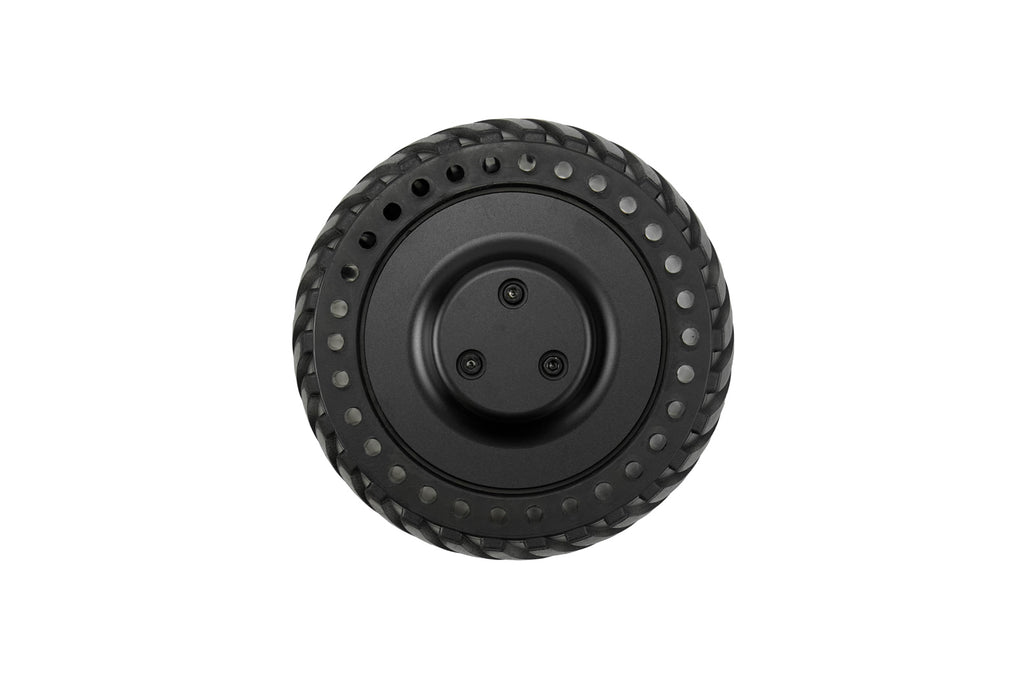

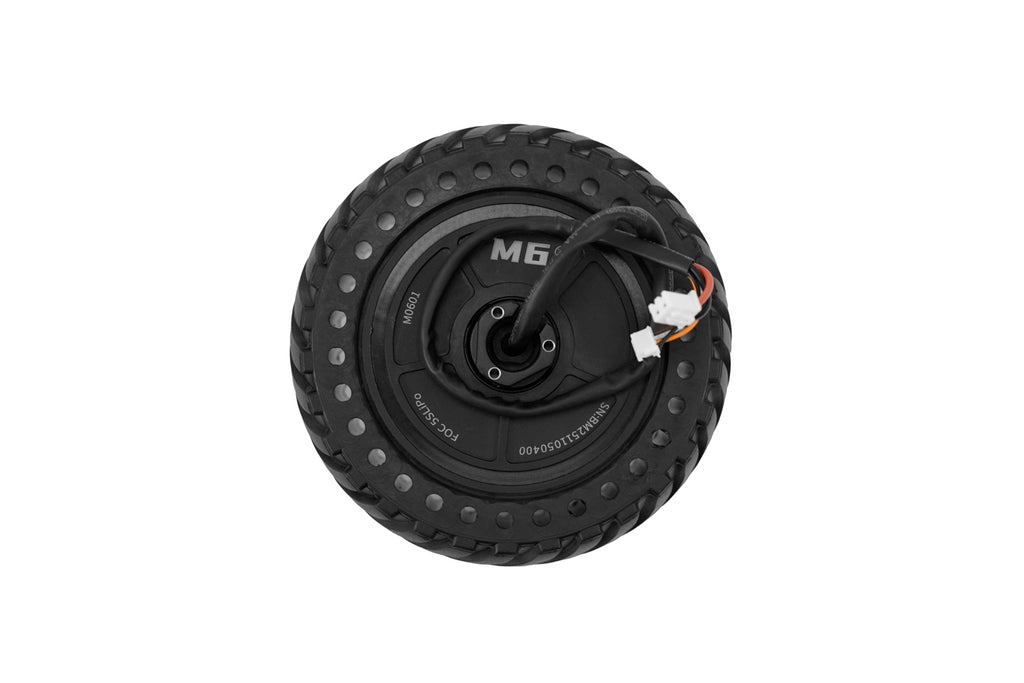

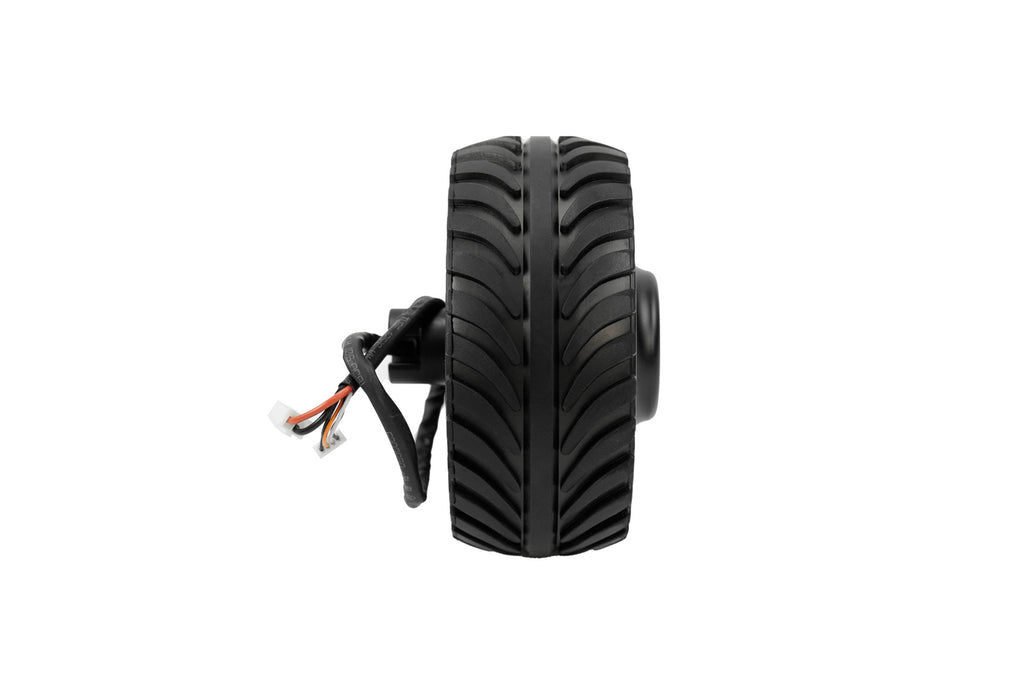

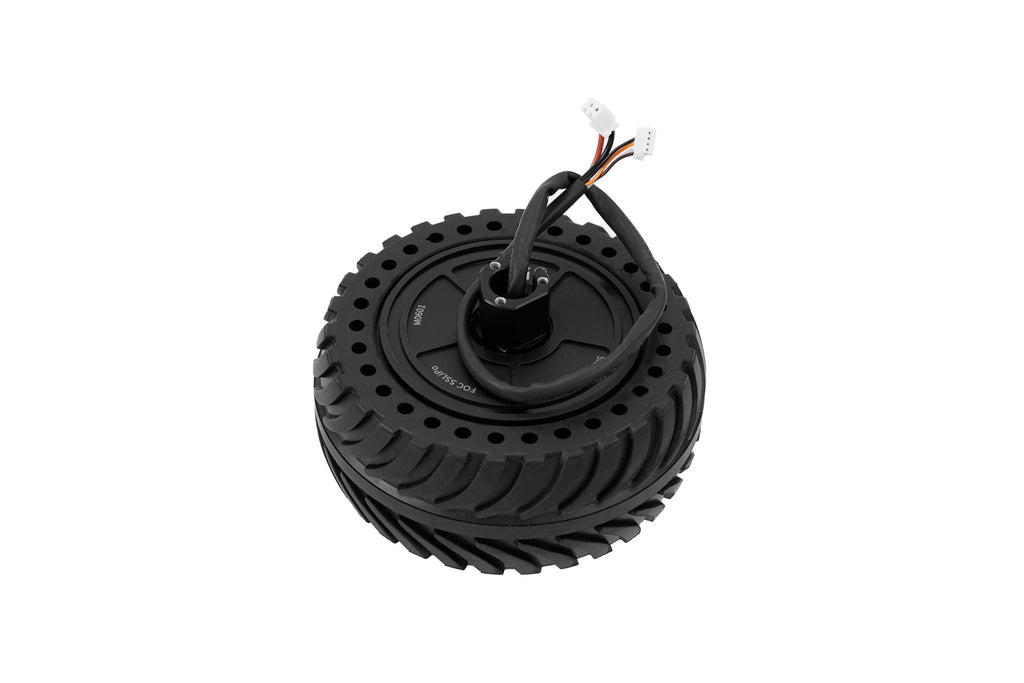

The M0601 is a highly integrated, direct-drive hub motor engineered for intelligent robots, AGVs, and AMRs. By seamlessly combining a brushless DC motor, a servo driver, and a high-precision encoder into a compact 102mm chassis, the M0601 eliminates the need for external drivers and complex wiring. This all-in-one architecture streamlines mechanical design and accelerates system integration for mobile platforms.
Compact All-in-One Integration
The M0601 revolutionizes robot chassis design by integrating the motor, servo driver, and encoder into a single 102mm diameter unit. This "plug-and-play" architecture removes the need for external driver installation and complex cabling, significantly saving internal space and reducing mechanical assembly time.
Precision Motion Control
Driven by advanced FOC (Field Oriented Control) algorithms and a 4096-line high-precision encoder, the motor achieves triple-loop closed control over torque, speed, and position. This configuration ensures smooth low-speed operation and provides the high-resolution feedback required for precise navigation and positioning in autonomous systems.
Figure: Precision Control of M0601 Direct-Drive Hub Motor
High Torque Density & Dynamic Performance
Despite its compact form factor, the motor delivers a rated torque of 0.96 N·m and a robust stall torque of 2.0 N·m. This power output enables agile start-stop maneuvers and provides sufficient force for obstacle traversal, ensuring reliable mobility under varying load conditions.
Figure: High Torque Density & Dynamic Performance of M0601 Direct-Drive Hub Motor
Industrial-Grade Reliability & Silence
Engineered for noise-sensitive and demanding environments, the motor operates at noise levels below 50 dB while maintaining an IP54 protection rating against dust and moisture. The system further enhances reliability through an RS485 interface, which enables real-time monitoring of current and temperature, automatically triggering protection mechanisms against over-current or stall events.
Figure: Low-noise of M0601 Direct-Drive Hub Motor
Figure: Duarbility of M0601 Direct-Drive Hub Motor
Figure: Dimension of M0601 Direct-Drive Hub Motor
Orientation Note: Left vs. Right Configuration The M0601 is available in specific Left and Right orientations to ensure optimal tire traction and correct cable routing.
Note: Please verify the mounting position on your robot chassis before ordering to match the cable exit direction.
Features:
Applications:
Specification:
Basic Parameters
Physical Dimensions
Documents:
Product Includes:
