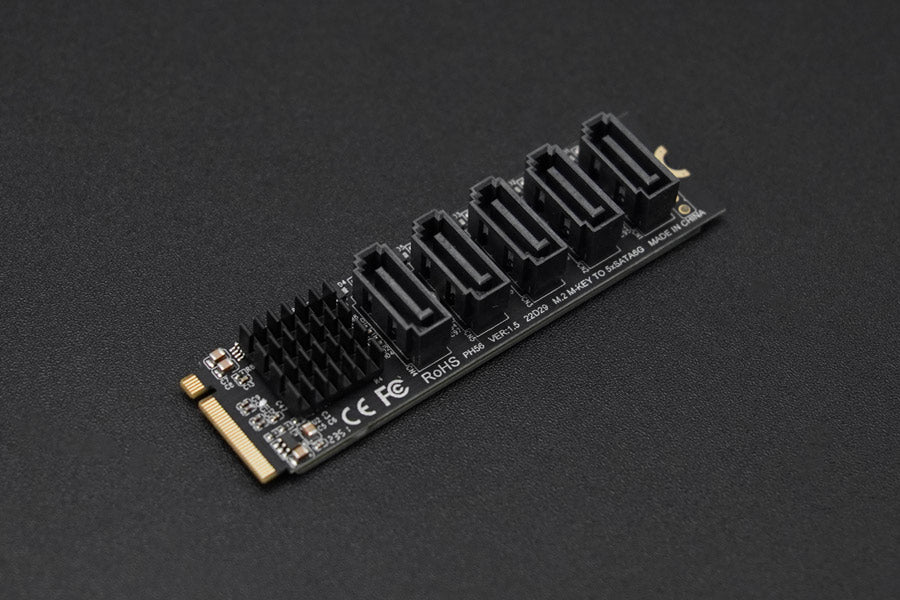

M.2 M Key to SATA3.0 Expansion Board

Price:
Sale price A$44.00   Inc. GST
SKU:
DF-FIT0970
71 units Ships in 7 to 10 days

This is an M.2 M Key to SATA3.0 expansion board specially prepared for LattePanda Sigma users. it requires no driver installation and is plug and play. It has high-speed transmission and stable performance. SATA3.0 interface can be utilized for connecting SATA devices, such as optical drives, Solid State Drives (SSD), Hard Disk Drives (HDD), and Solid State Hybrid Drives (SSHD). The expansion card comes with 5 SATA interfaces and can be used with the sigma motherboard to connect external SATA interface hard drives to provide Sigma with more data storage space.

M.2 M Key to SATA3.0 Expansion Card use JMB585 chip

M.2 M Key to SATA3.0 Expansion Card use JMB585 chip


The expansion card is equipped with an indicator light. When the corresponding SATA device is connected, the indicator light will light up; when data is read or written, the indicator light will flash, allowing you to observe the status of the expansion card and hard disk in real time.

M.2 M Key to SATA3.0 Expansion Card equipped with an indicator light

M.2 M Key to SATA3.0 Expansion Card equipped with an indicator light


In order to enhance operational stability, the chip is also equipped with an aluminum alloy heat sink to provide better heat dissipation.

M.2 M Key to SATA3.0 Expansion Card equipped with an aluminum alloy heat sink

M.2 M Key to SATA3.0 Expansion Card equipped with an aluminum alloy heat sink


Wiring Diagram of M.2 M Key to SATA3.0 Expansion Card and LattePanda Sigma

Wiring Diagram of M.2 M Key to SATA3.0 Expansion Card and LattePanda Sigma

Features:

  • With 5 SATA3.0 interfaces
  • With heat sink, the performance is more stable
  • With indicator light to check status in real time
  • Compatible with multiple systems
  • Specification:

  • Transmission protocol: PCIe 3.0x2, supports up to two channels of PCIe XPRESS
  • Compatibility: Hard drives that support SATA protocol
  • Speed: Uplink PCIe 3.0 X2 16Gbps, Downlink SATA3.0 6Gbps*5
  • Number of extensions: SATA3.0*5
  • Compatible systems: Windows/Linux/Mac os
  • Size: 22*80mm
  • Documents:

  • Product wiki
  • Product Includes:

  • M.2 M Key to SATA3.0 Expansion Card x1
