- Switch selection: The 115VAC or 230VAC input can be switched by the red switch on the side.
- Reliable Quality：The casing is exquisite and the height is only 30mm. It can withstand a 5G vibration test.
- Fan efficiency：A silent fan with high wind power, capable of withstanding long-term continuous operation. The fan will be activated when RTH3 is greater than 50℃; and it will be deactivated when RTH3 is less than or equal to 40℃.
- Multiple protections：short circuit protection, overload protection, overvoltage protection, overcurrent protection, overheating protection.
- Surge resistance：Capable of withstanding a 300VAC surge input for 5 seconds.
- High efficiency in power conversion：The LRS series has an electric power conversion efficiency ranging from 90% to 88%, and the heat loss it generates is half that of a 80% energy-efficient power supply.
- Ultra-low no-load loss：The LRS series features no-load losses ranging from 0.2W to 0.75W, meeting energy-saving requirements.

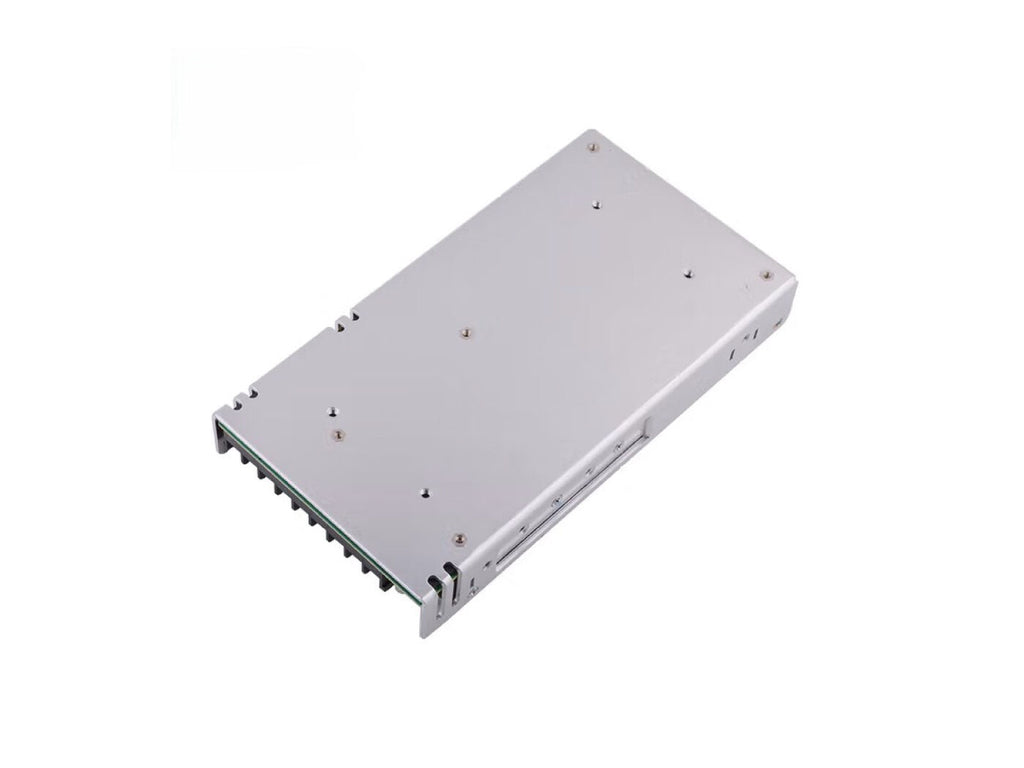

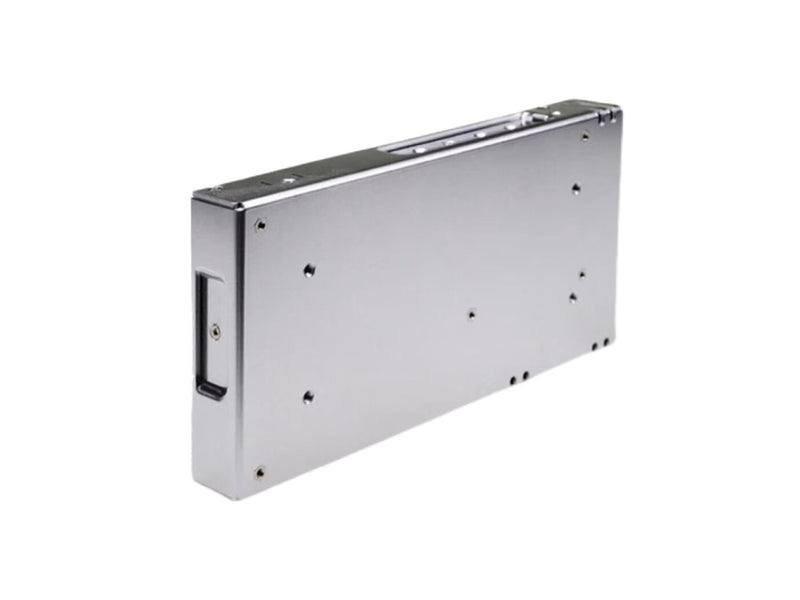

Product | LRS-350-12 12V 29A Power Supply |
Operating Temperature | -25℃~70℃ |
Input | 90 ~ 132VAC / 180 ~ 264VAC（by switch） 240 ~ 370VDC（switch on 230VAC） 47 ~ 63Hz 6.8A/115VAC 3.4A/230VAC |
Output | 12V 29A 348W |
Connection type | Full bridge |

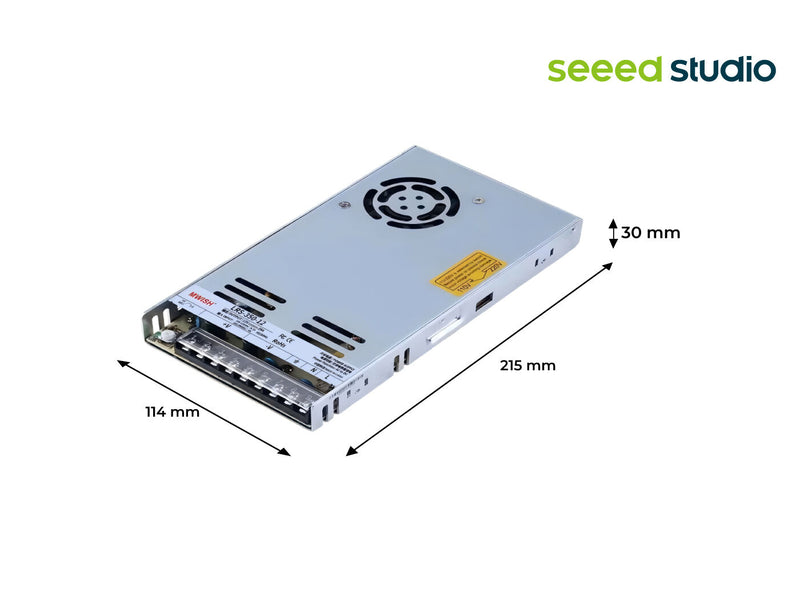

Dimension | 215*115*30mm（L*W*H） |
Weight | 760g |
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipments or apparatus
12V 29A Power Supply | x1 |
fixed trestles | x4 |
screws | x4 |
Terminal cover plate | x1 |
| HSCODE | 8504401400 |
| USHSCODE | 8504409510 |
| UPC | |
| EUHSCODE | 8504400000 |
| COO | CHINA |
