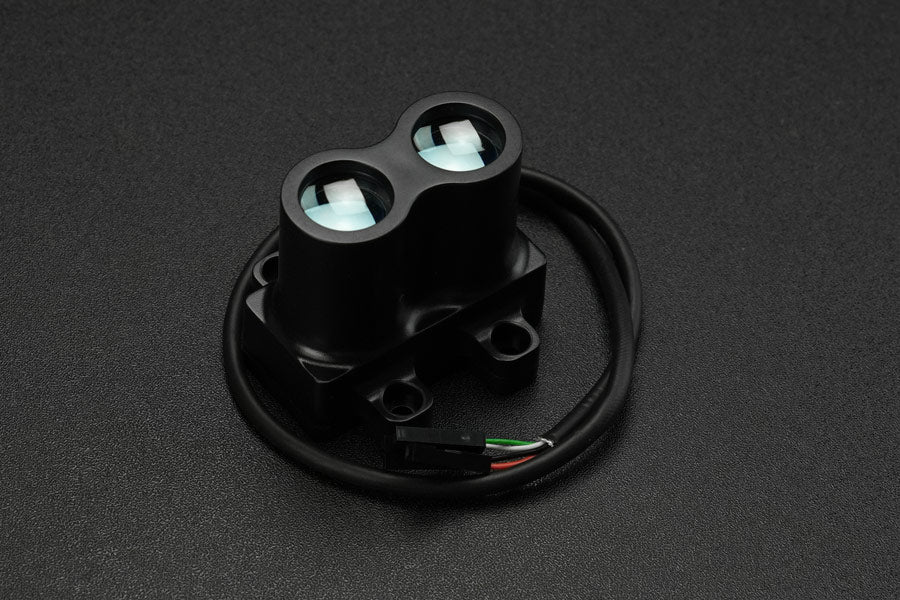

LPB60B IP65 DToF Single-Point Ranging LiDAR Sensor
LPB60B IP65 DToF Single-Point Ranging LiDAR Sensor

LPB60B IP65 DToF Single-Point Ranging LiDAR Sensor

Price:
A$240.24   Inc. GST
SKU:
DF-SEN0587
31 units Ships in 7 to 10 days

The LPB60B IP65 DToF LiDAR Sensor offers top-notch outdoor usage, boasting an impressive measuring range of 60m. Built from reliable single-point laser radar tech based on DToF, it guarantees robust distance measurements and strong resistance against brilliant lighting.

Set adjustable measurement frequency to 2000Hz with a precision of ±5cm, and access data via UART, compatible with Arduio IO boards.

This LiDAR Sensor offers reliable performance in a variety of settings and precise results with its protection measures, such as reverse connection prevention, overvoltage protection, current limitation, and IP65 certification and CE, FCC, ROHS, and FDA approval. Perfect for altitude hold on drones, collision avoidance for vehicles, intelligent transportation, and IoT security, its accuracy and safety is guaranteed.




Single-point laser Radar adopts DTOF Technology

DToF Technology principle


Waterproof IP65 Protection Level



Waterproof IP65 Protection Level

IP65 Protection Level


Dimension of LPB60B ToF Single-Point Ranging LiDAR Sensor

Dimensional drawing of LPB60B ToF Single-Point Ranging LiDAR Sensor

Features:

  • Measurement range for both indoor and outdoor is up to 60m
  • High accuracy, with a full range of ±5cm
  • High measurement frequency, adjustable from 1 to 2000Hz
  • Protection measures against reverse connection, overvoltage, and current limitation
  • Certified with CE, FCC, ROHS, and FDA

    • Applications:

  • Gate detection
  • Drones follow up
  • Outdoor parking space inspection
  • High-speed rail inbound inspection
  • Level granary testing
  • Vehicle flow detection

    • Specification:

  • Measurement Range:
           0.05~60m (90% reflectivity indoors and outdoors)
           0.05~24m (10% reflectivity indoors and outdoors)
  • Measurement Accuracy: ±5cm
  • Operating Voltage: 5V
  • Power Consumption: <130mA@5V
  • Communication Interface: UART
  • Wavelength: 905nm
  • Resolution: 1.5cm
  • Measurement Frequency: Adjustable from 1 to 2000Hz (default is 100Hz)
  • Protection Level: IP65
  • Ambient Light Immunity: 100klux
  • Laser Emission Angle: 0.17°
  • Reception Field of View: 2.2°
  • Operating Temperature: -40°C to 85°C
  • Weight: 43g

    • Documents:

  • Communication_protocol

    • Product Includes:

  • LPB60B DToF Single-Point Ranging LiDAR Sensor (0.05-60m) x1
